PCM Message Not Received

For testing procedures, see Fig 1 .

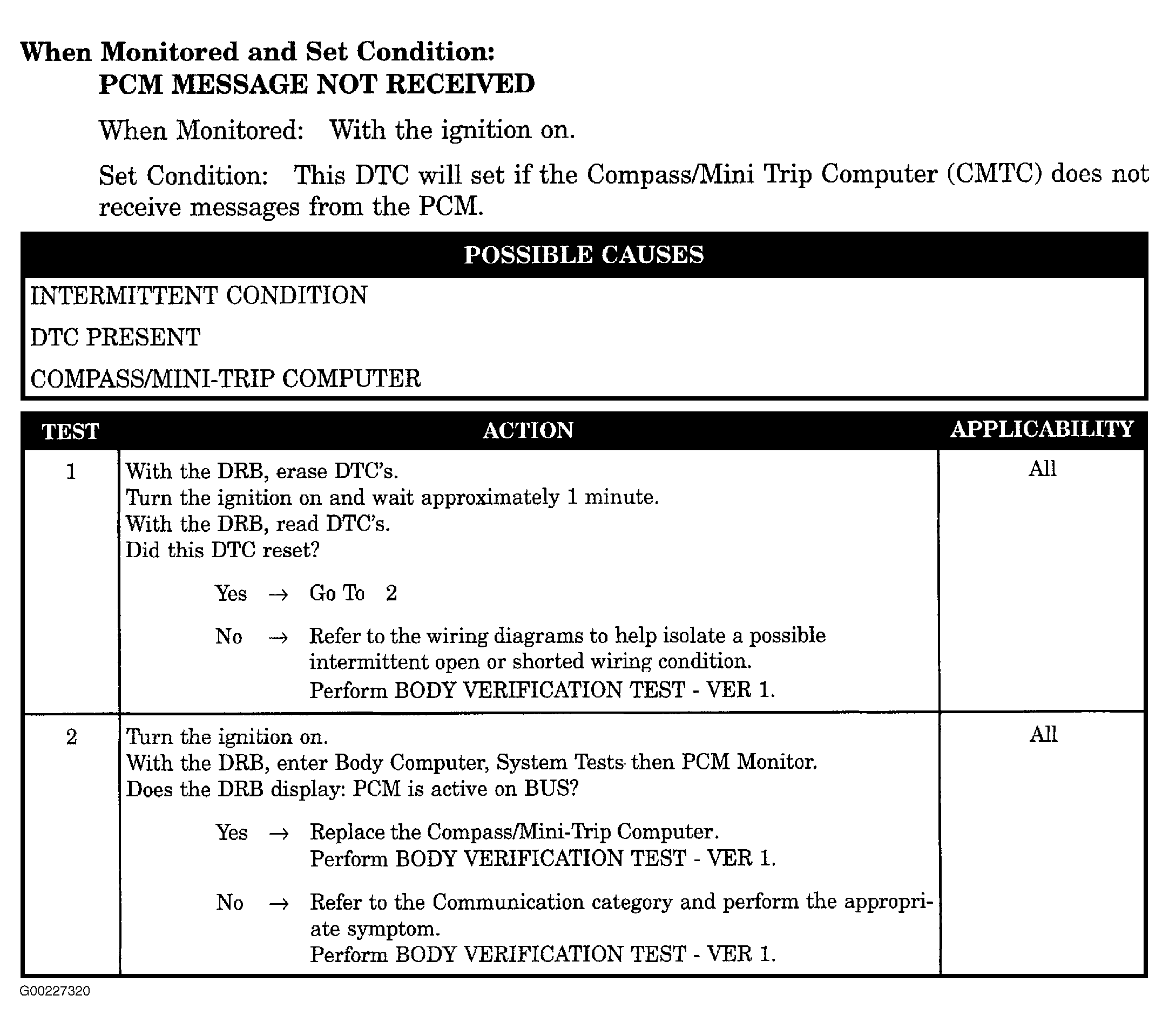

Fig 1: PCM Message Not Received

G00227320

Courtesy of CHRYSLER CORP.
