Charging System Warning Indicator Not Operating Properly
Charging System Warning Indicator Not Operating Properly
For testing procedures, see
Fig 1
.

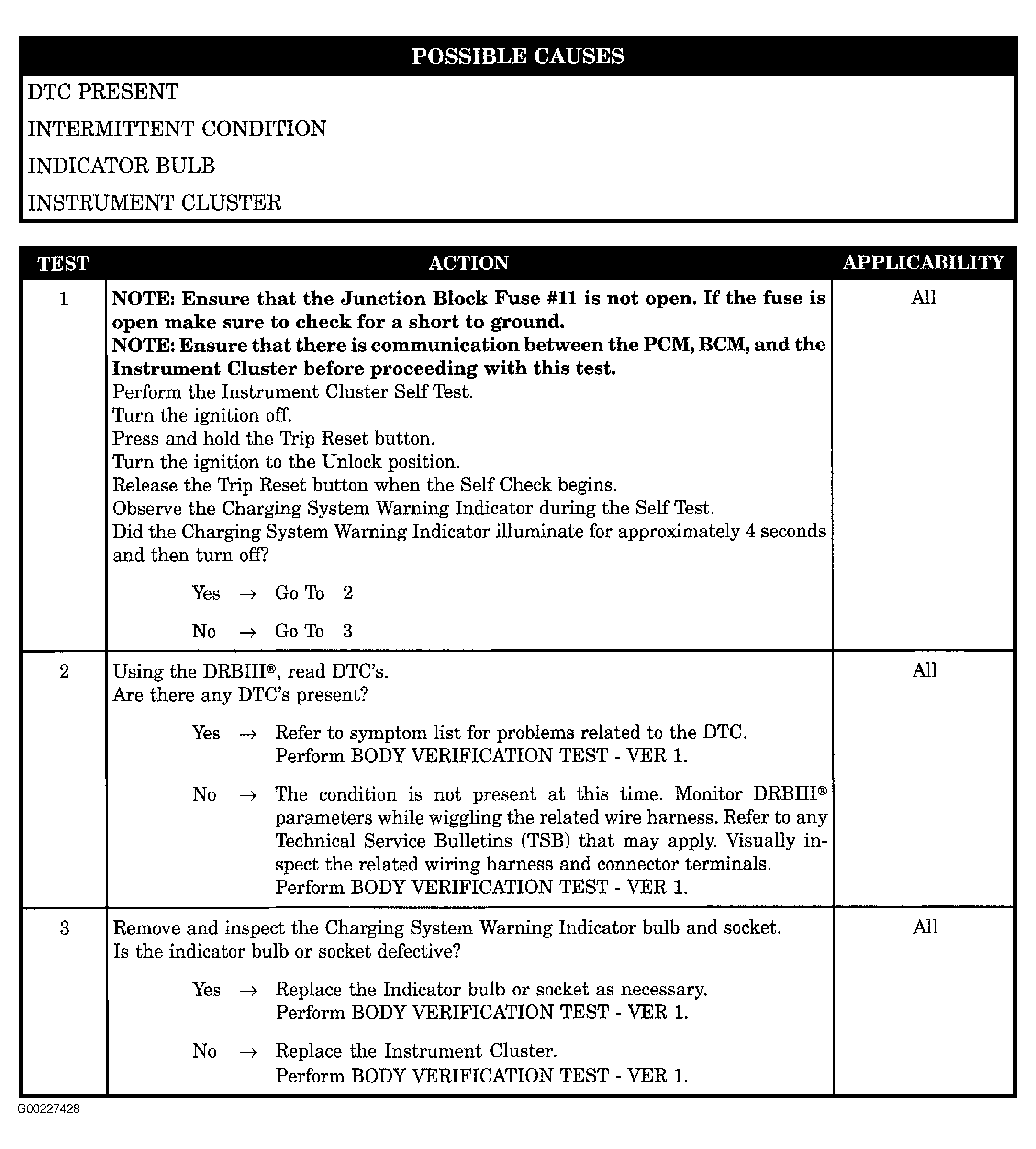

Fig 1: Charging System Warning Indicator Not Operating Properly
Courtesy of CHRYSLER CORP.
