PCM Message Not Received

For testing procedures, see Fig 1 and Fig 2 .

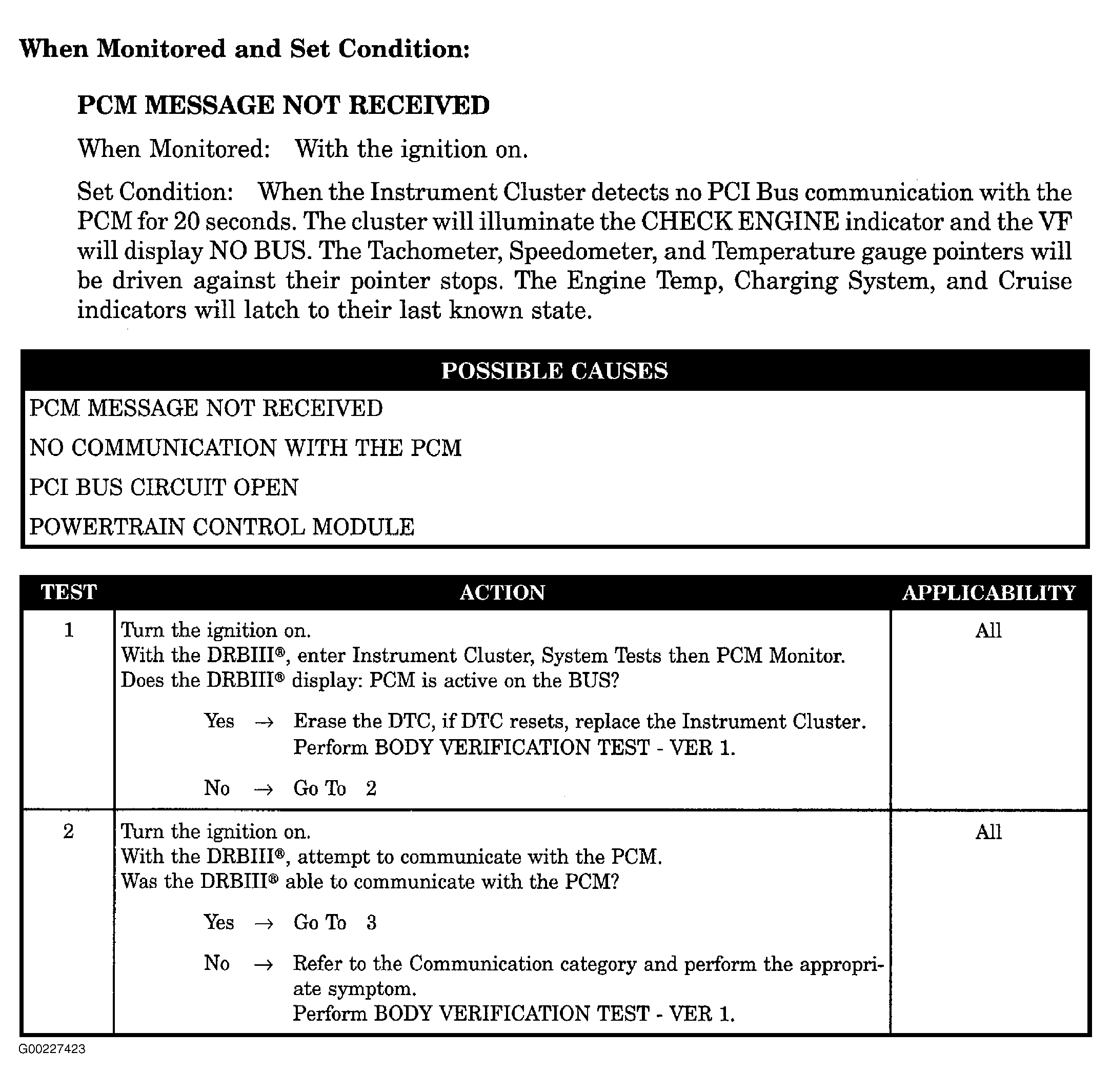

Fig 1: PCM Message Not Received - Steps 1 & 2 (1 Of 2)

Courtesy of CHRYSLER CORP.

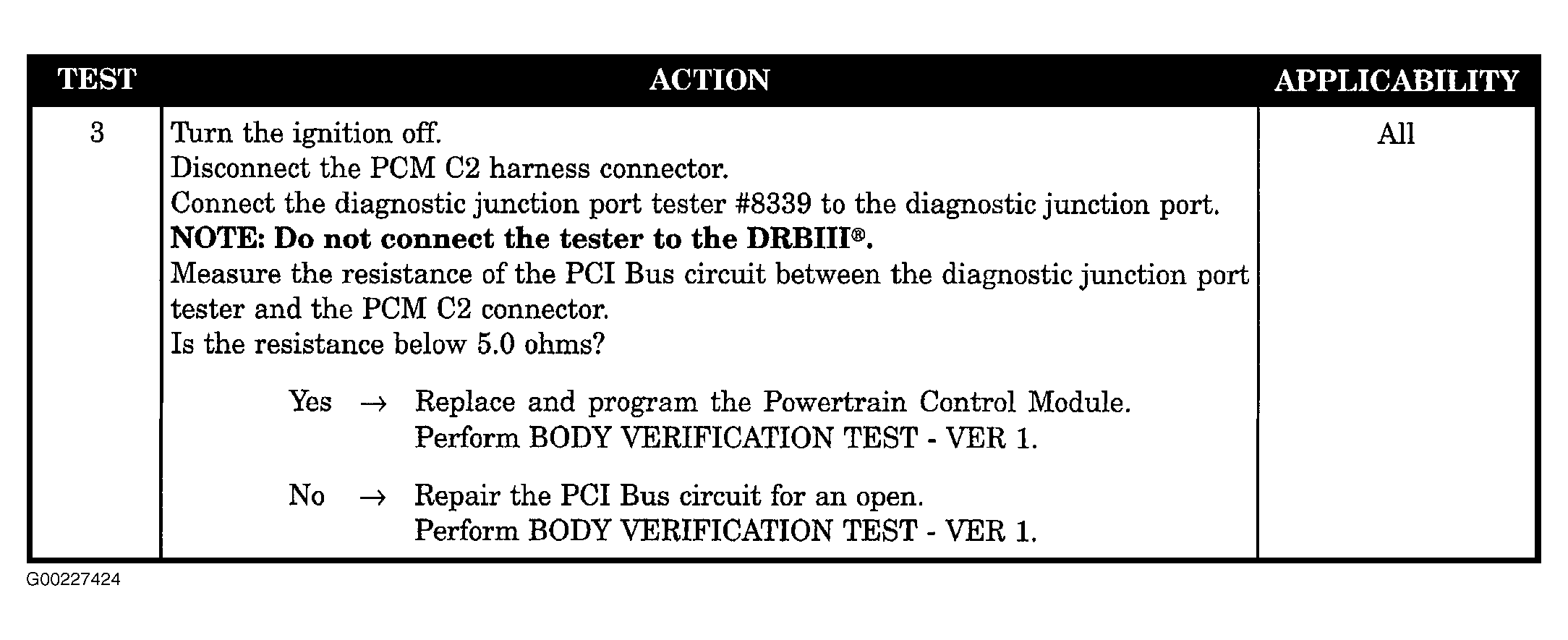

Fig 2: PCM Message Not Received - Step 3 (2 Of 2)

Courtesy of CHRYSLER CORP.
