Horns Fail To Sound

For testing procedures, see Fig 1 -Fig 4 .

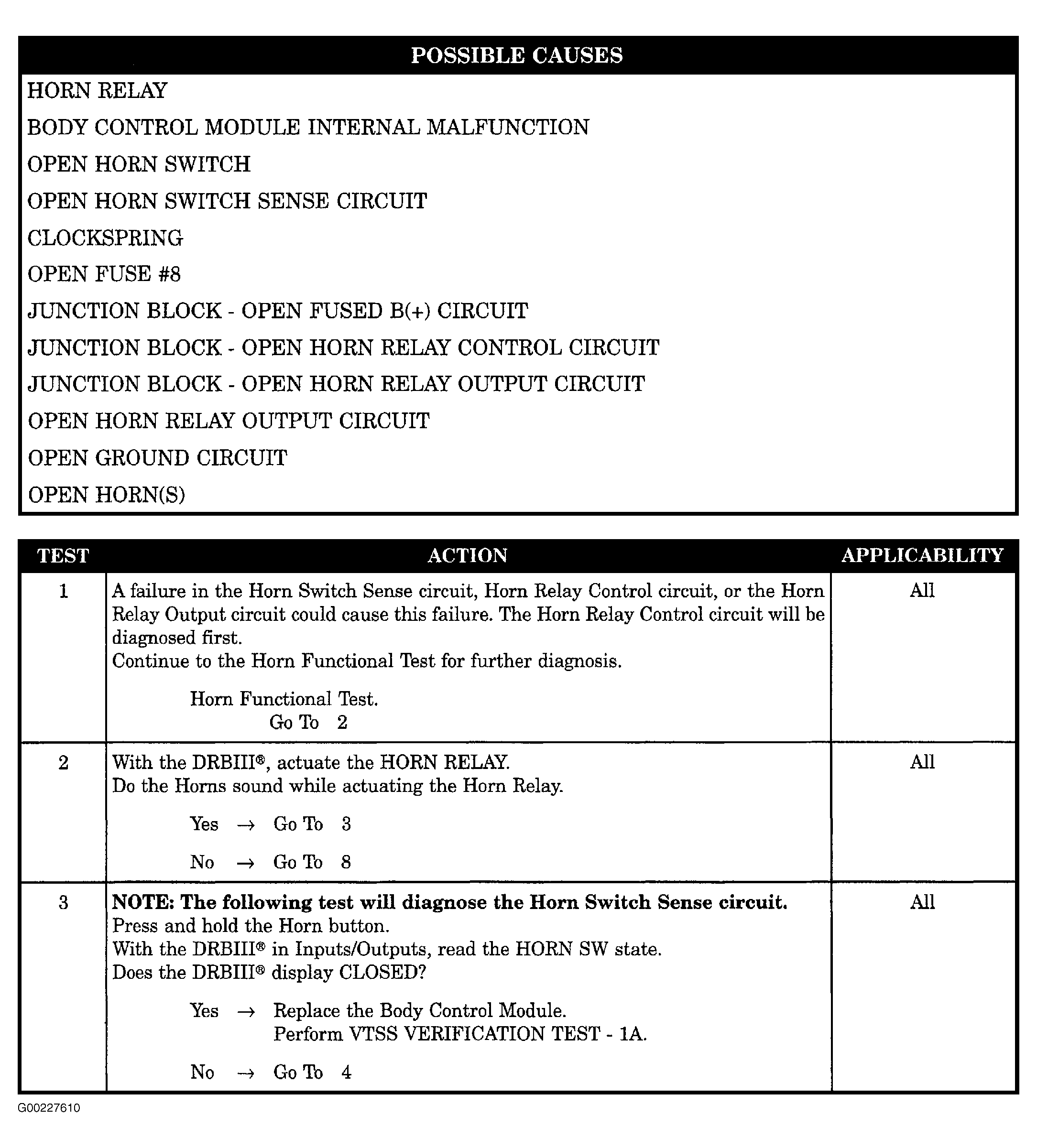

Fig 1: Horns Fail To Sound - Steps 1-3 (1 Of 4)

Courtesy of CHRYSLER CORP.

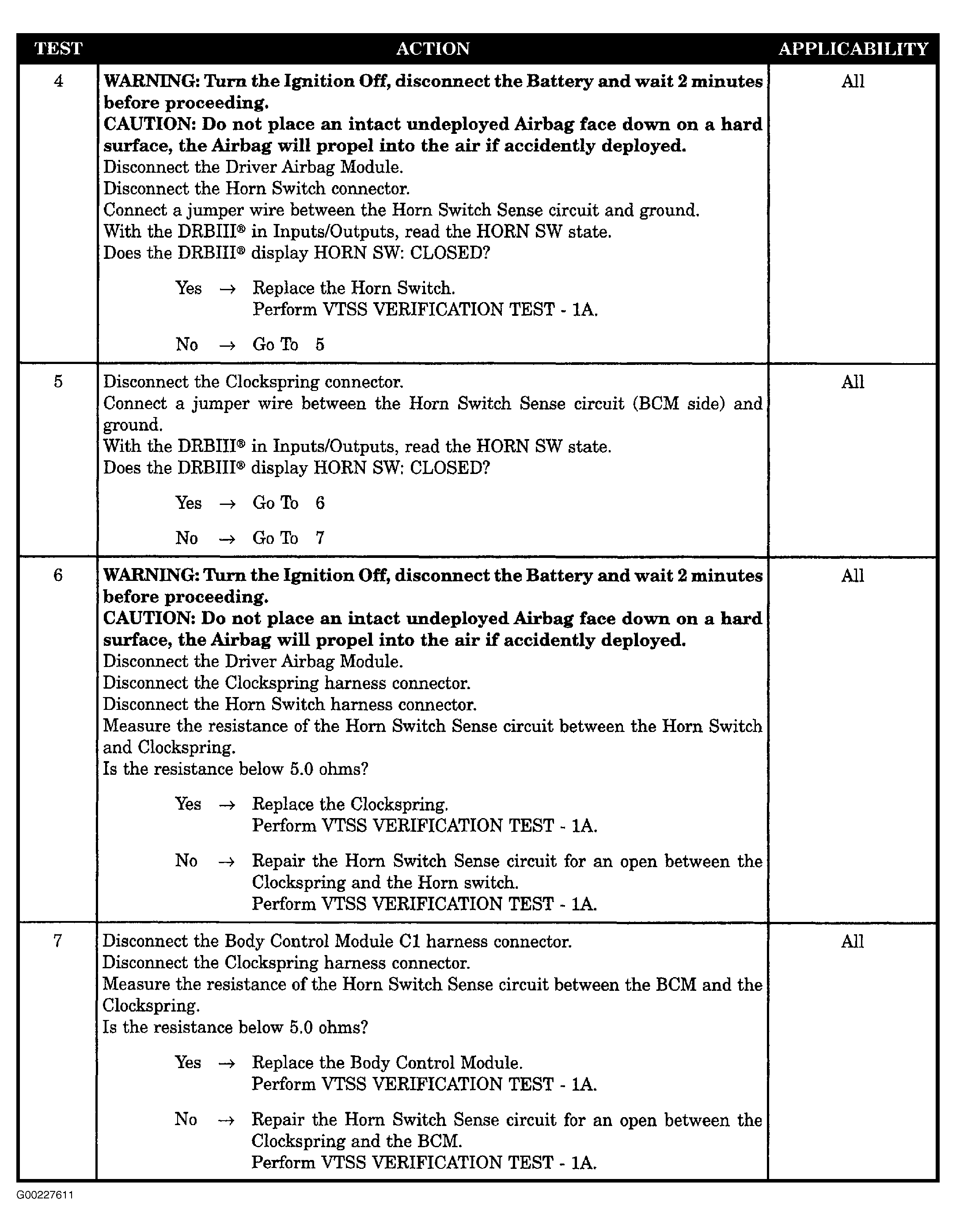

Fig 2: Horns Fail To Sound - Steps 4-7 (2 Of 4)

Courtesy of CHRYSLER CORP.

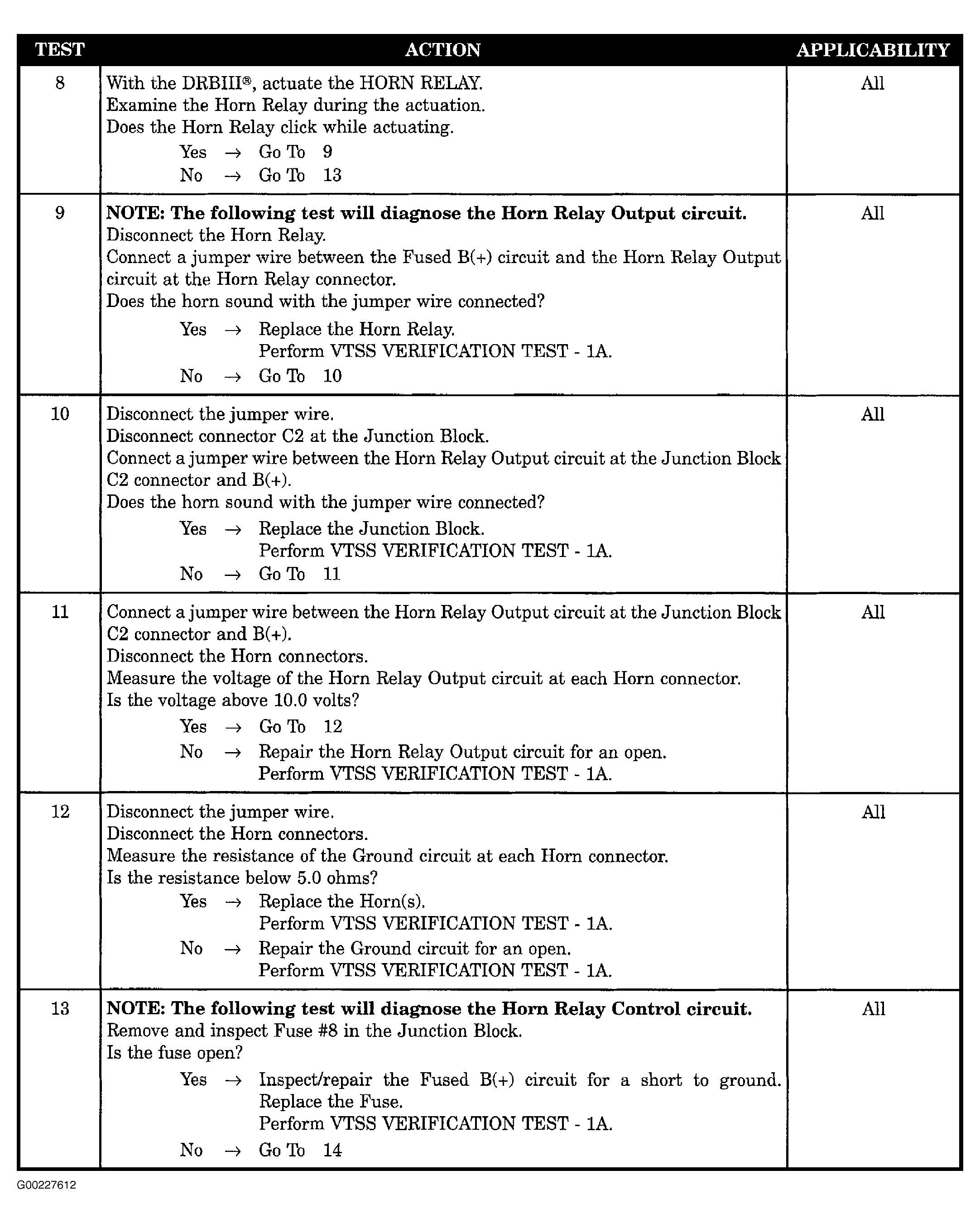

Fig 3: Horns Fail To Sound - Steps 8-13 (3 Of 4)

Courtesy of CHRYSLER CORP.

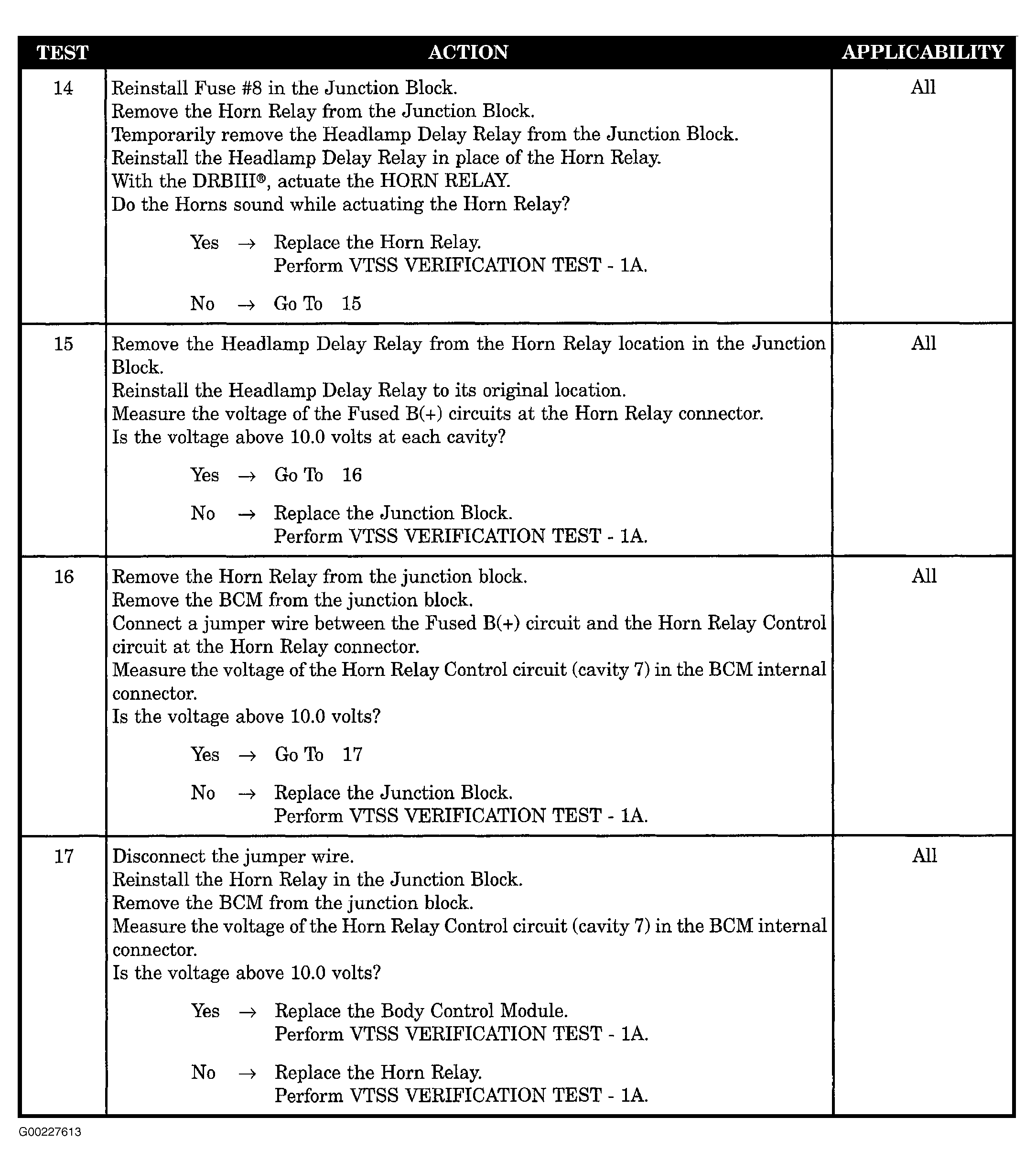

Fig 4: Horns Fail To Sound - Steps 14-17 (4 Of 4)

Courtesy of CHRYSLER CORP.
