No Antenna Connection

For testing procedures, see Fig 1 .

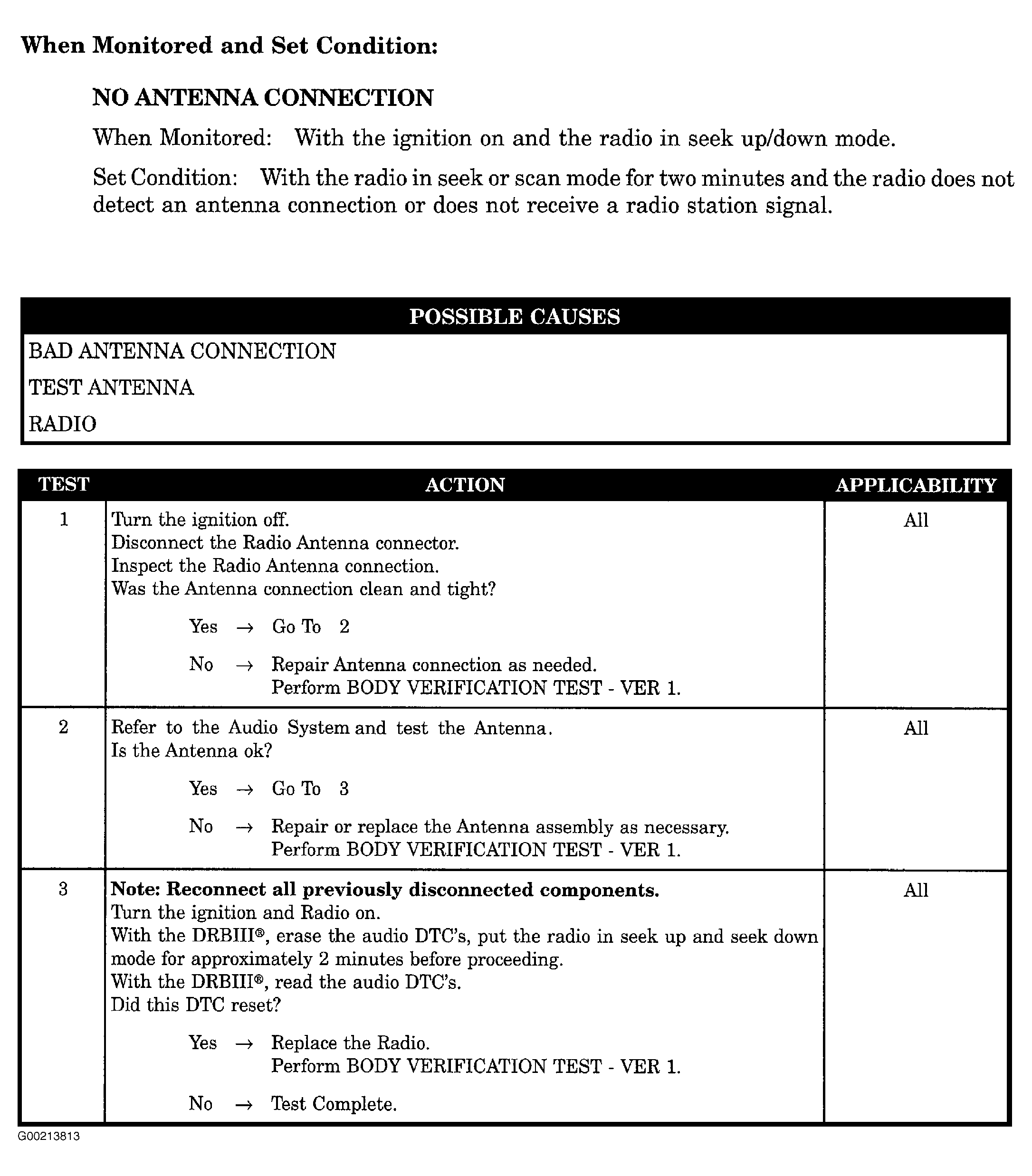

Fig 1: No Antenna Connection
G00213813Courtesy of CHRYSLER CORP.
