EEPROM Checksum Failure

For testing procedures, see Fig 1 .

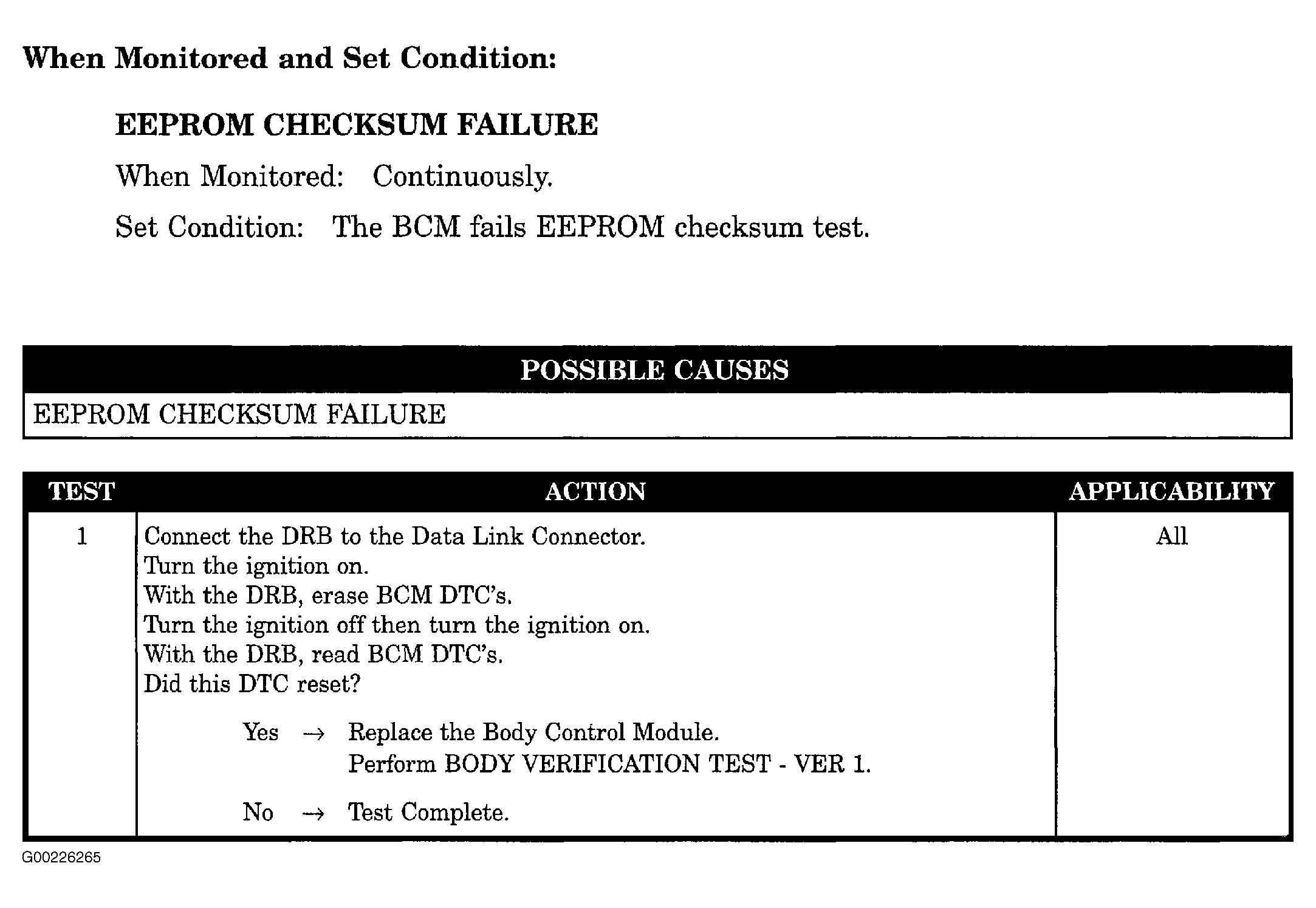

Fig 1: EEPROM Checksum Failure
G00226265Courtesy of CHRYSLER CORP.
