No Response From Controller Anti-Lock Brake

For testing procedures, see Fig 1 and Fig 2 .

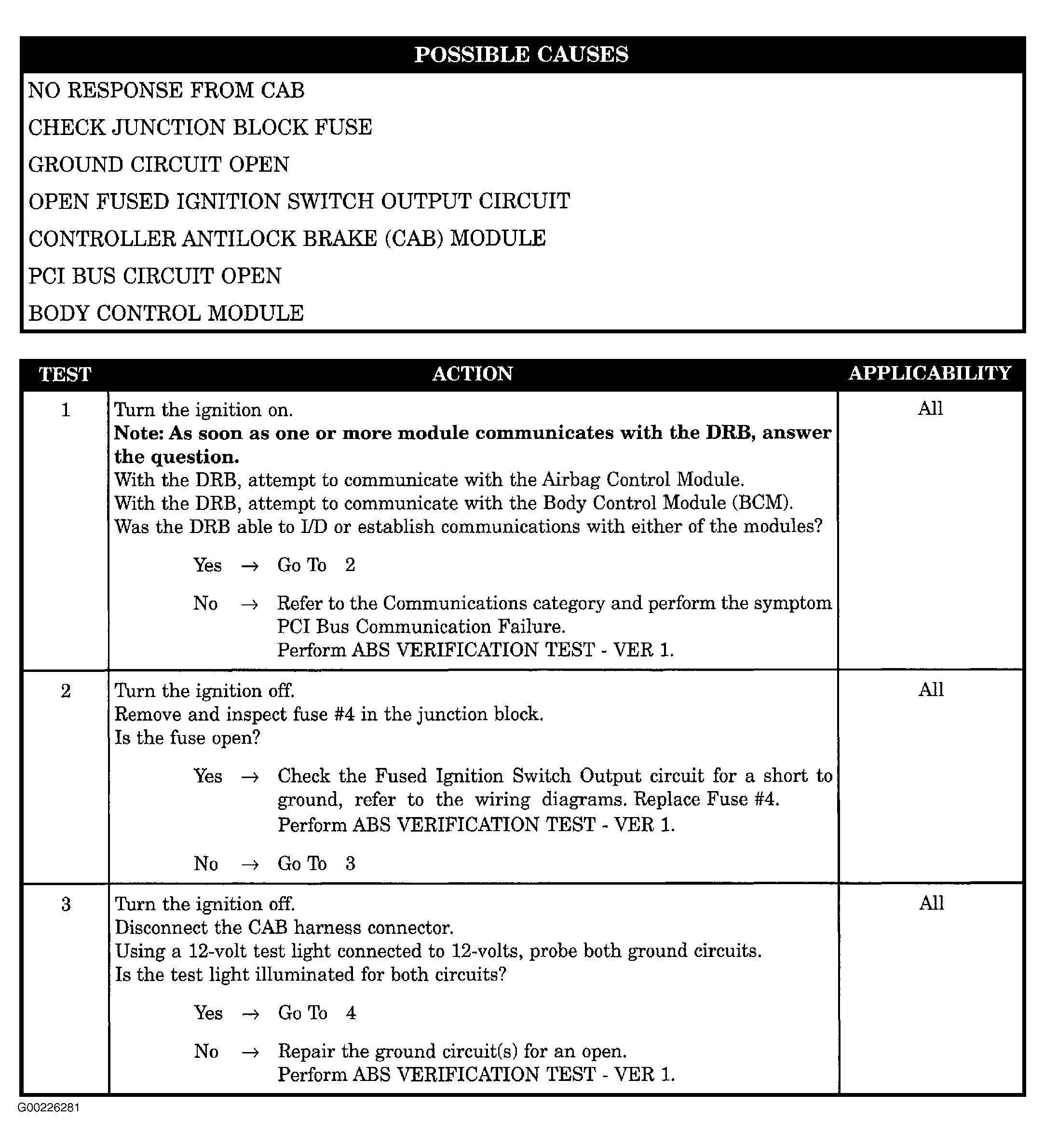

Fig 1: No Response From Controller Anti-Lock Brake - Steps 1-3 (1 Of 2)

Courtesy of CHRYSLER CORP.

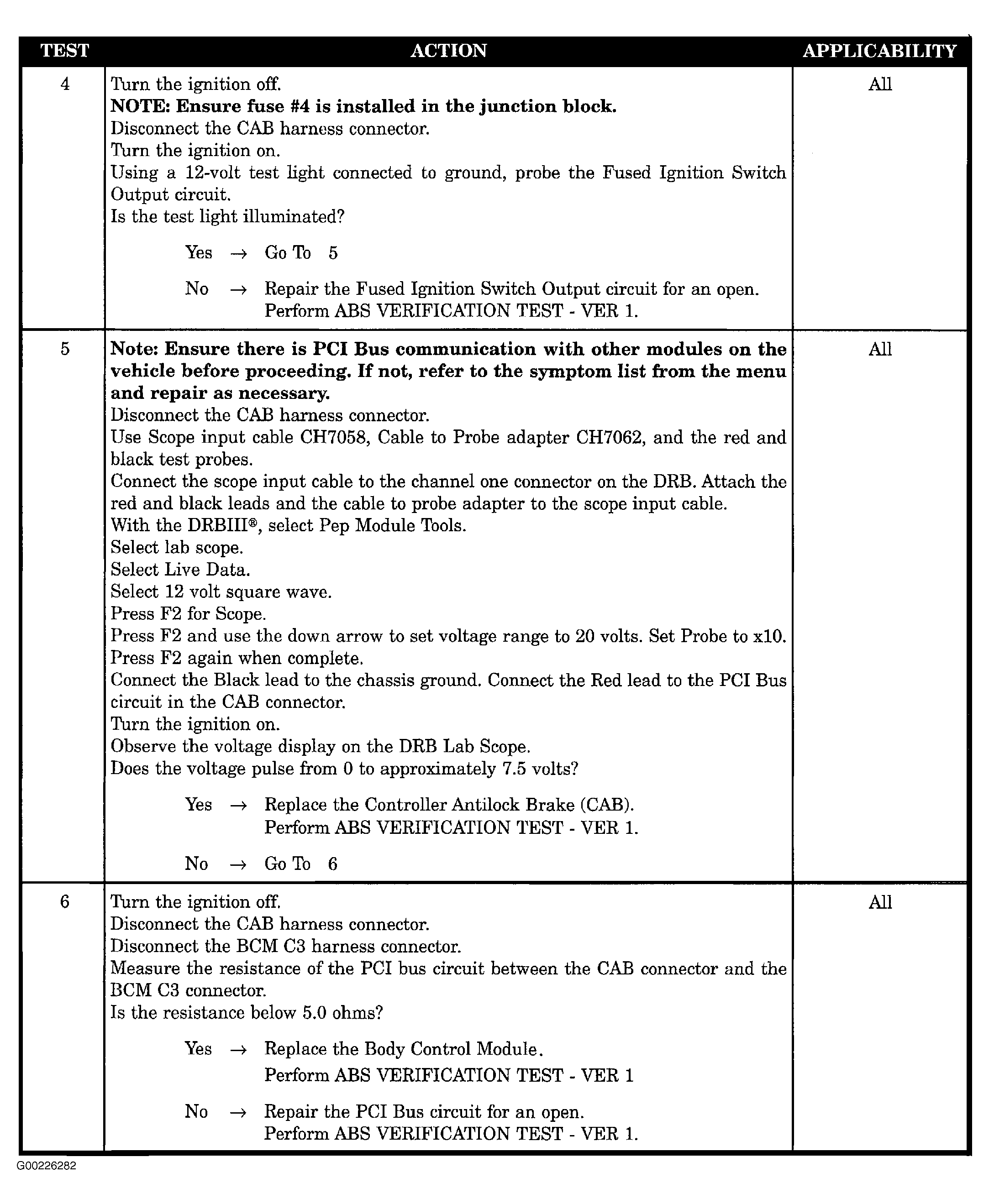

Fig 2: No Response From Controller Anti-Lock Brake - Steps 4-6 (2 Of 2)

Courtesy of CHRYSLER CORP.
