PCI Bus Communication Failure
PCI Bus Communication Failure
For testing procedures, see
Fig 1
-
Fig 3
.

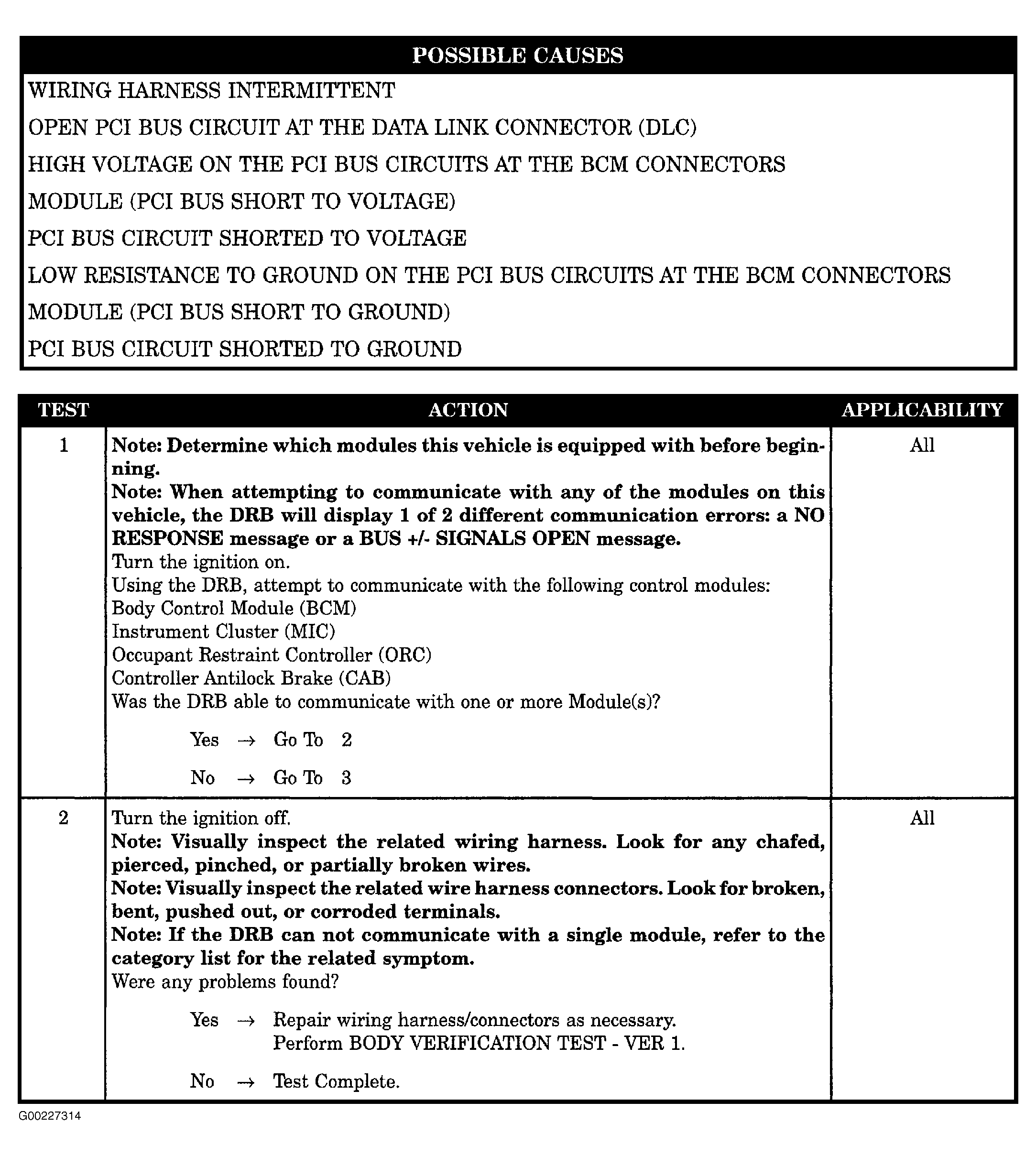

Fig 1: PCI Bus Communication Failure - Steps 1 & 2 (1 Of 3)
Courtesy of CHRYSLER CORP.

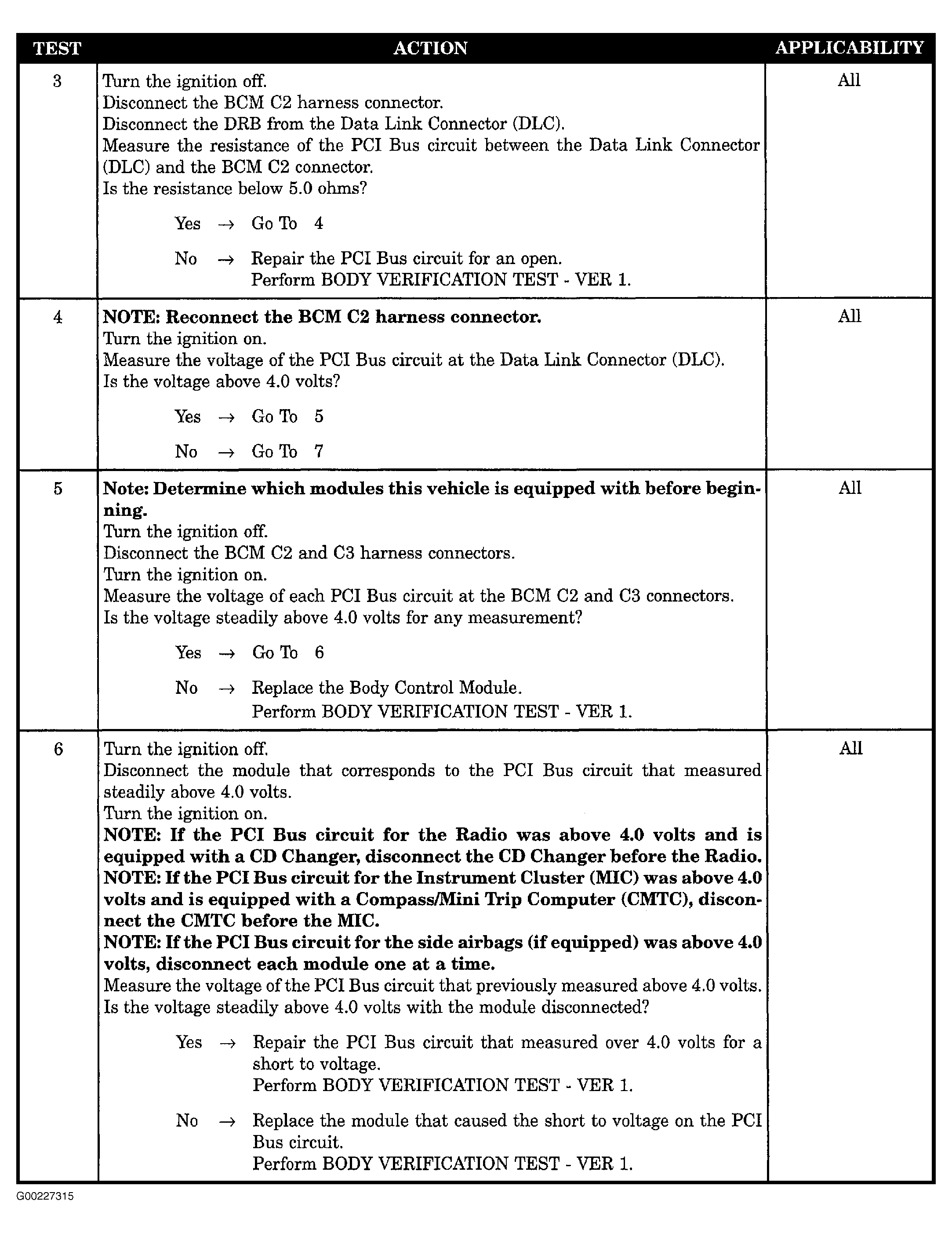

Fig 2: PCI Bus Communication Failure - Steps 3-6 (2 Of 3)
Courtesy of CHRYSLER CORP.

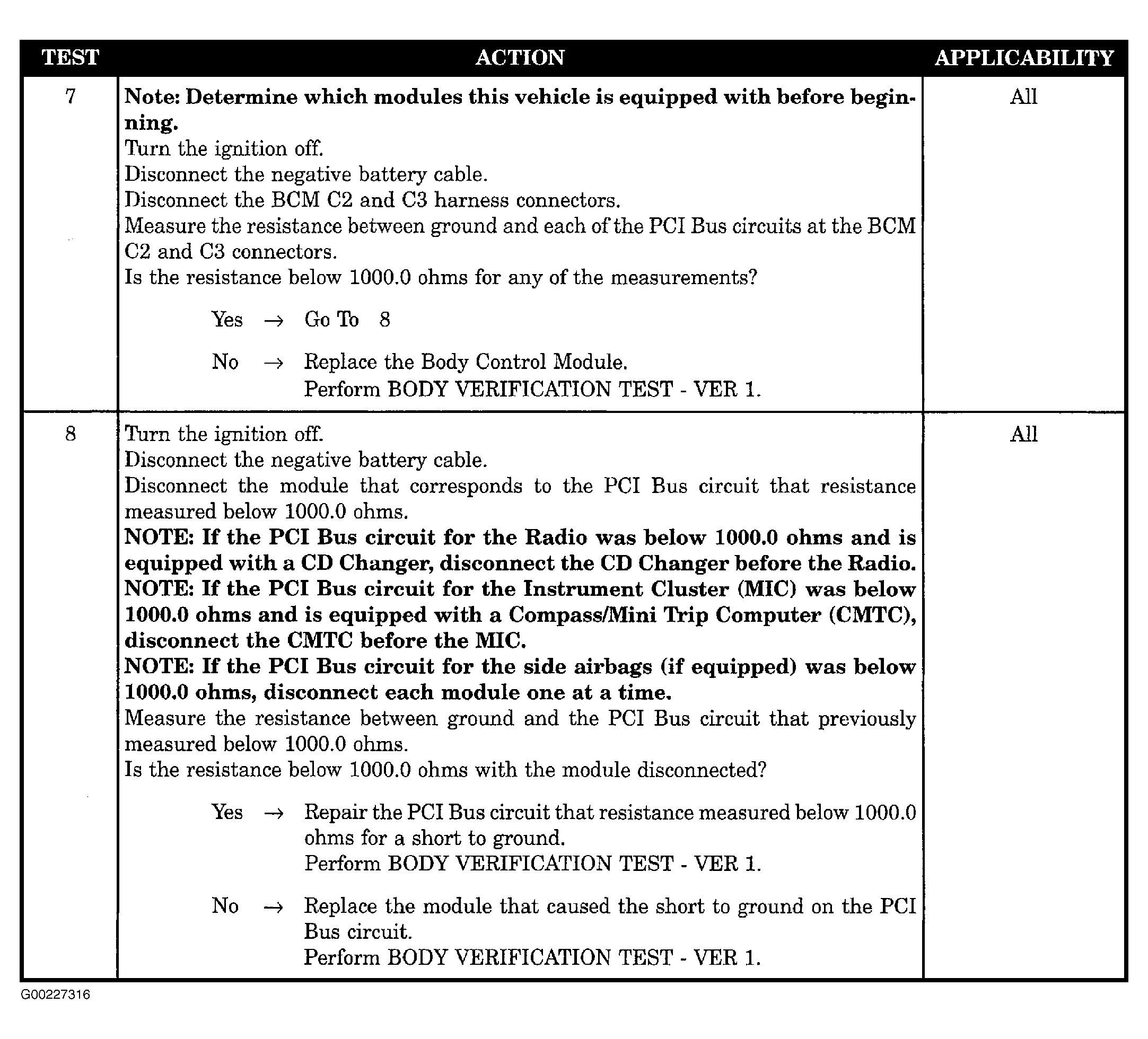

Fig 3: PCI Bus Communication Failure - Steps 7 & 8 (3 Of 3)
