SKIM Messages Not Received

For testing procedures, see Fig 1 .

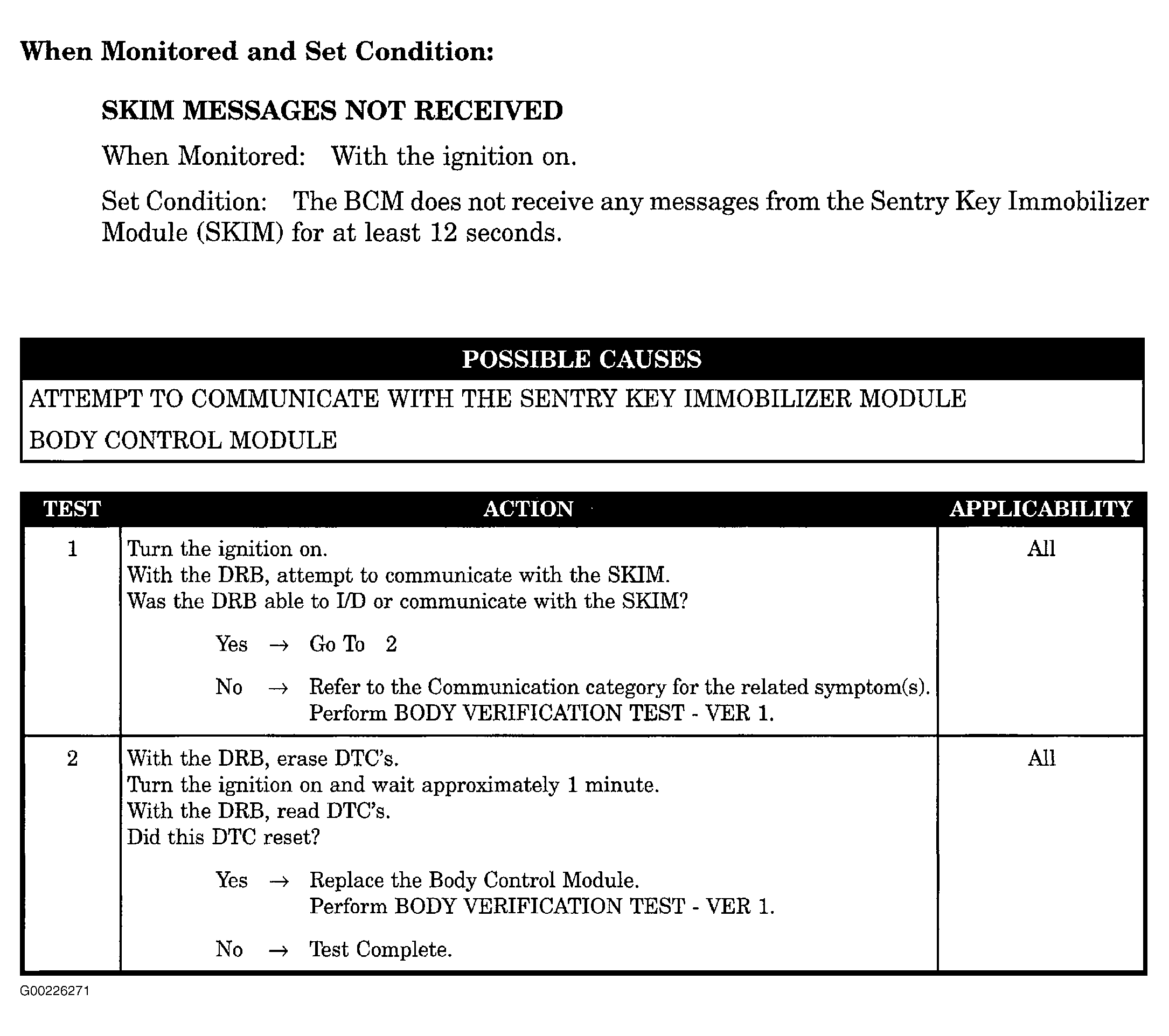

Fig 1: SKIM Messages Not Received

G00226271

Courtesy of CHRYSLER CORP.
