TCM Messages Not Received

For testing procedures, see Fig 1 .

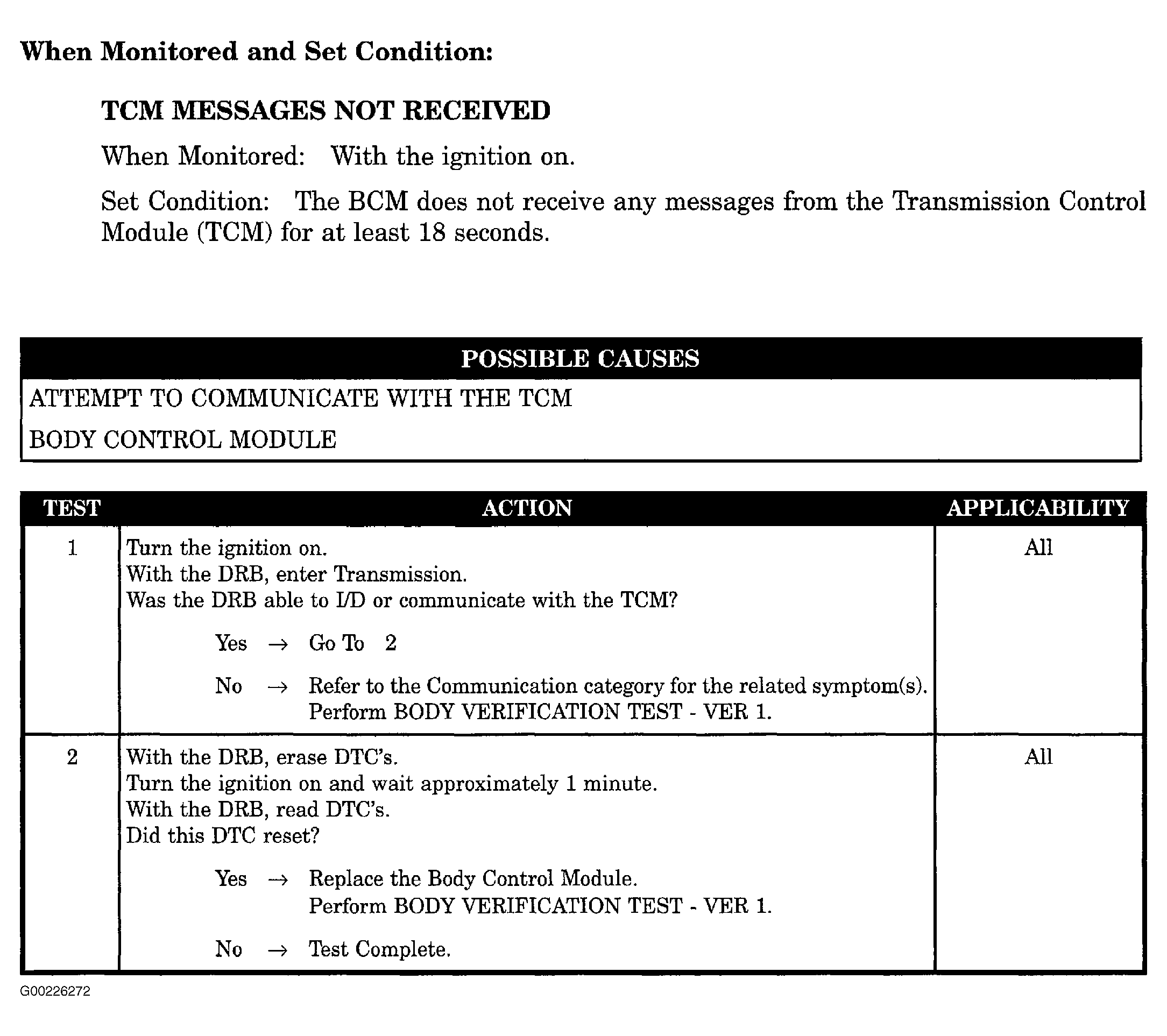

Fig 1: TCM Messages Not Received

G00226272

Courtesy of CHRYSLER CORP.
