Common Output Shorted To Battery

For testing procedures, see Fig 1 -Fig 4 .

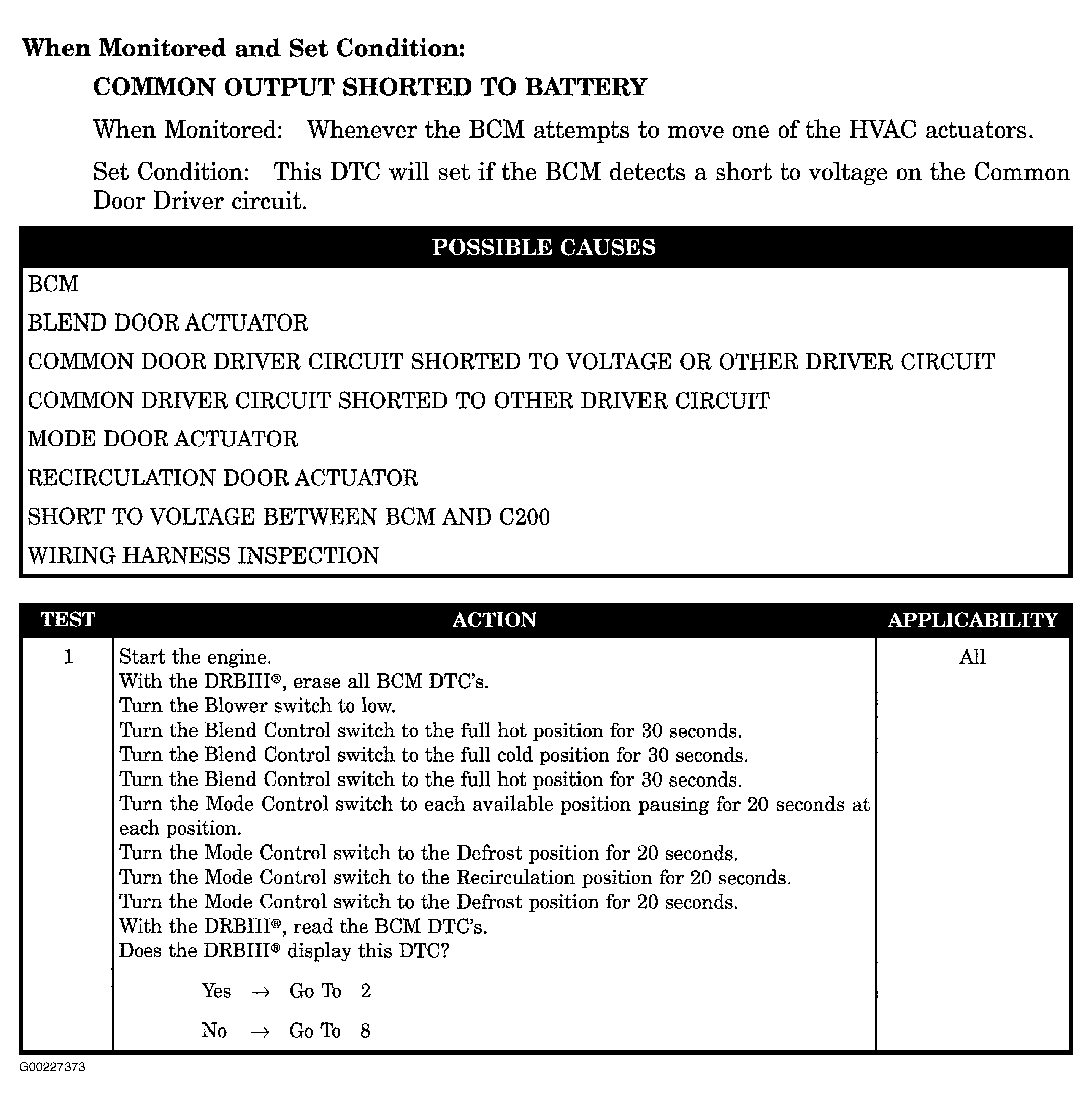

Fig 1: Common Output Shorted To Battery - Step 1 (1 Of 4)

Courtesy of CHRYSLER CORP.

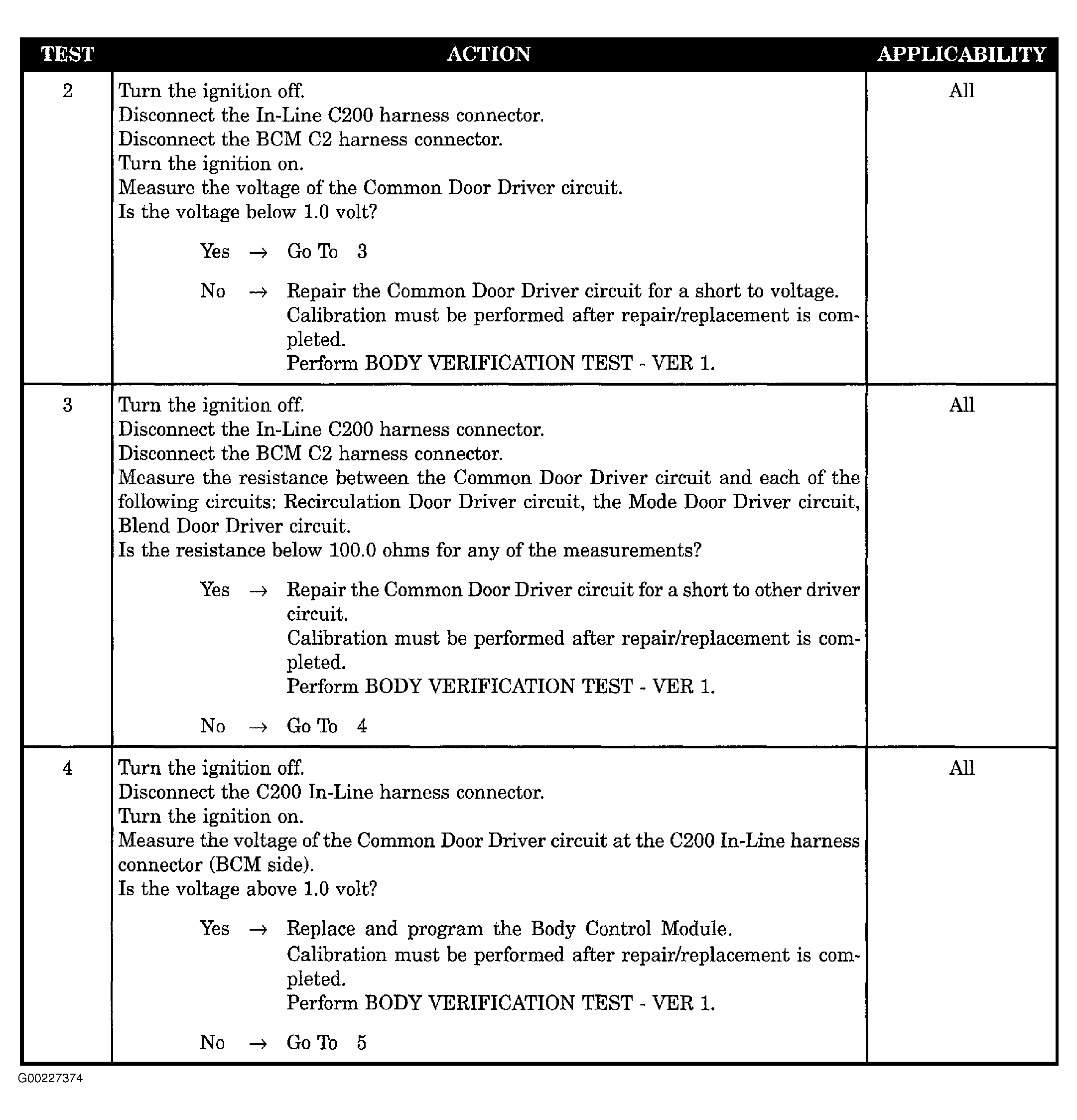

Fig 2: Common Output Shorted To Battery - Steps 2-4 (2 Of 4)

Courtesy of CHRYSLER CORP.

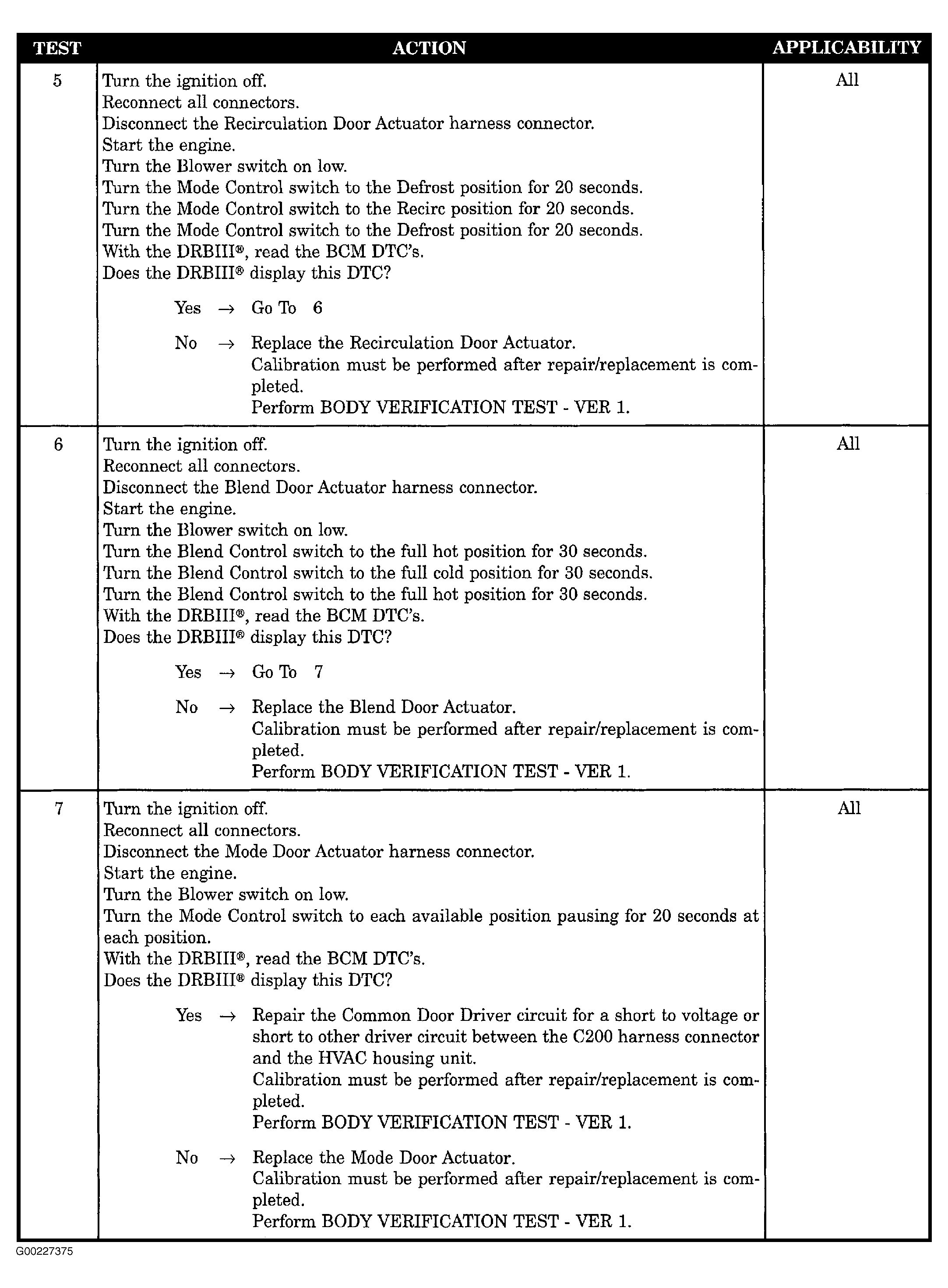

Fig 3: Common Output Shorted To Battery - Steps 5-7 (3 Of 4)

Courtesy of CHRYSLER CORP.

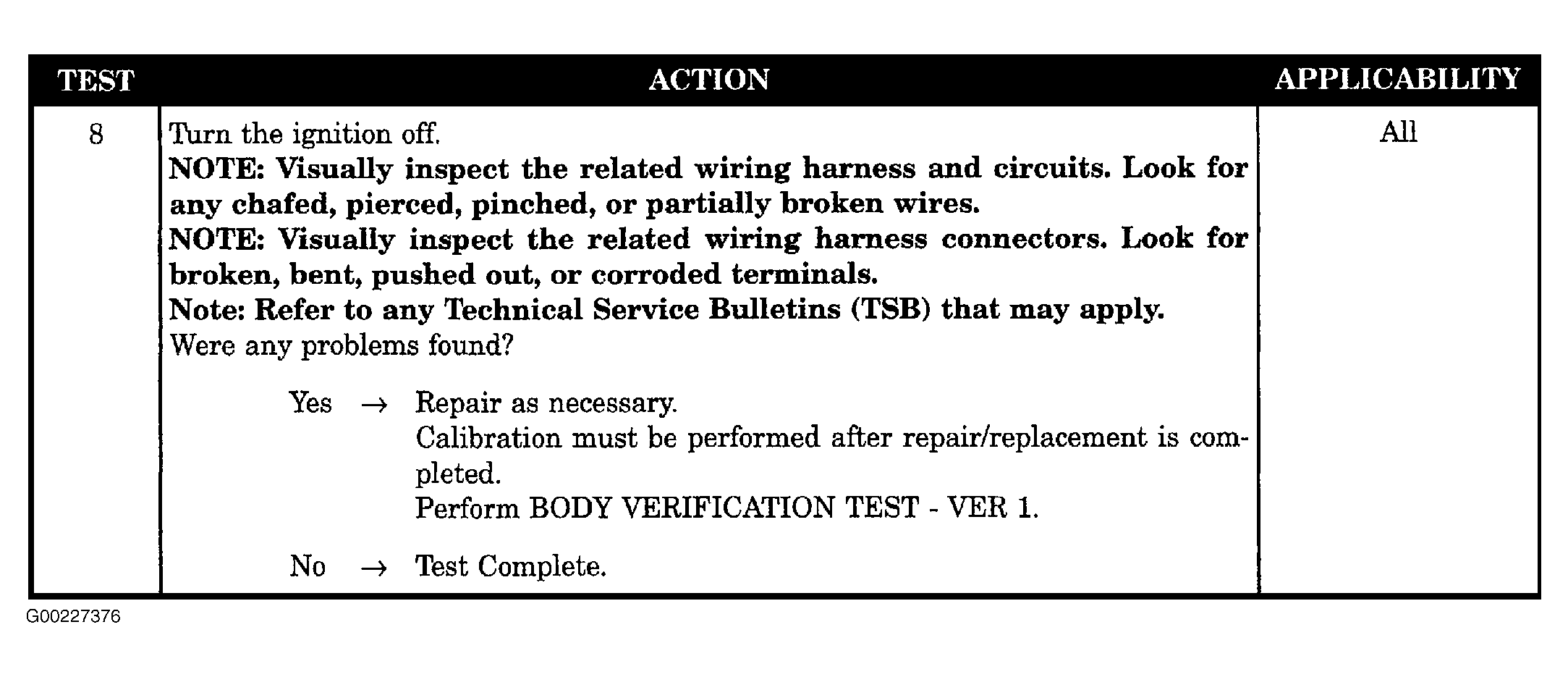

Fig 4: Common Output Shorted To Battery - Step 8 (4 Of 4)

Courtesy of CHRYSLER CORP.
