Instrument Cluster Systems
›
Brake Warning Indicator Always On
Brake Warning Indicator Always On
For testing procedures, see

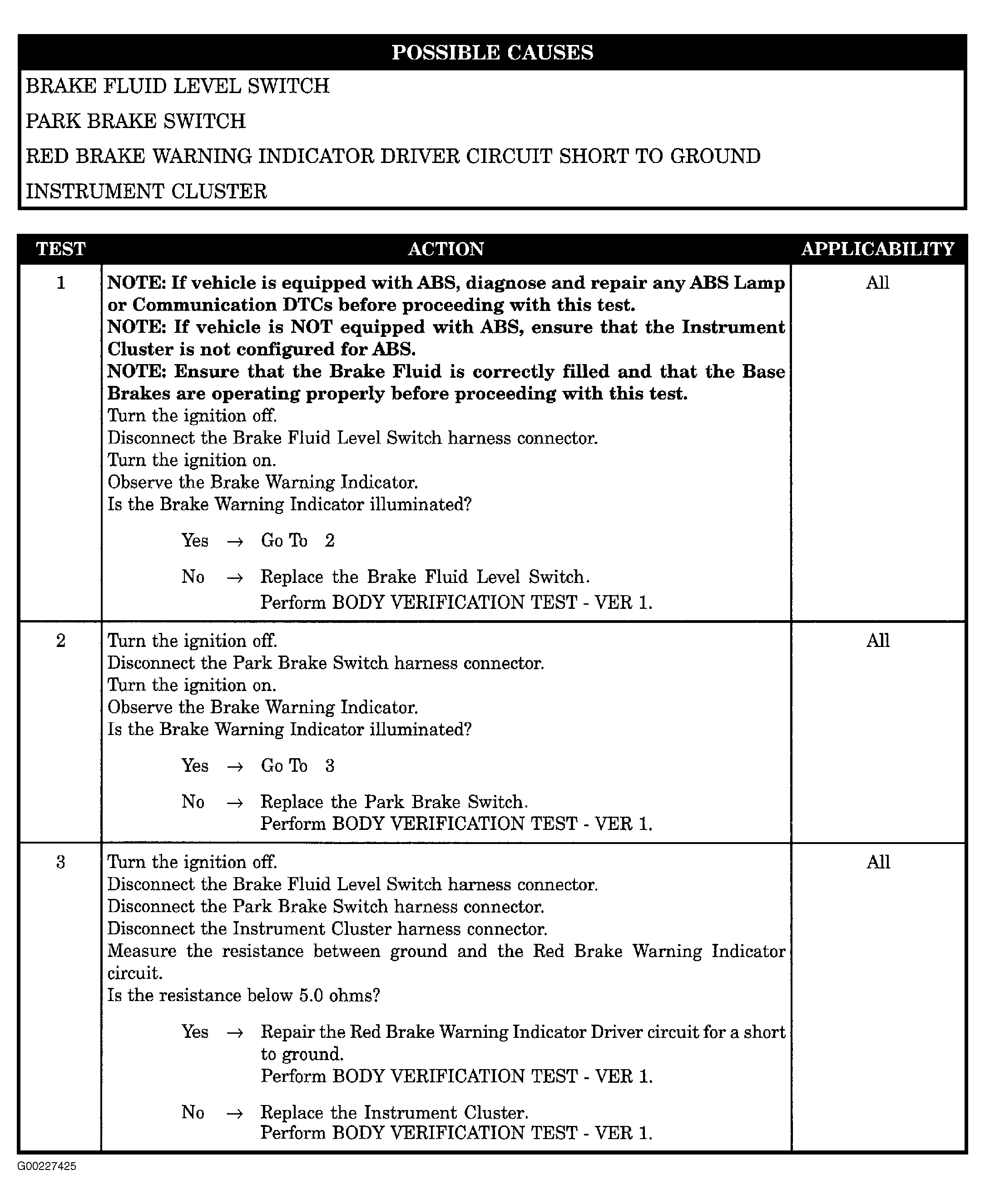

Fig 1
.
Fig 1: Brake Warning Indicator Always On
Courtesy of CHRYSLER CORP.
