Brake Warning Indicator Inoperative

For testing procedures, see Fig 1 and Fig 2 .

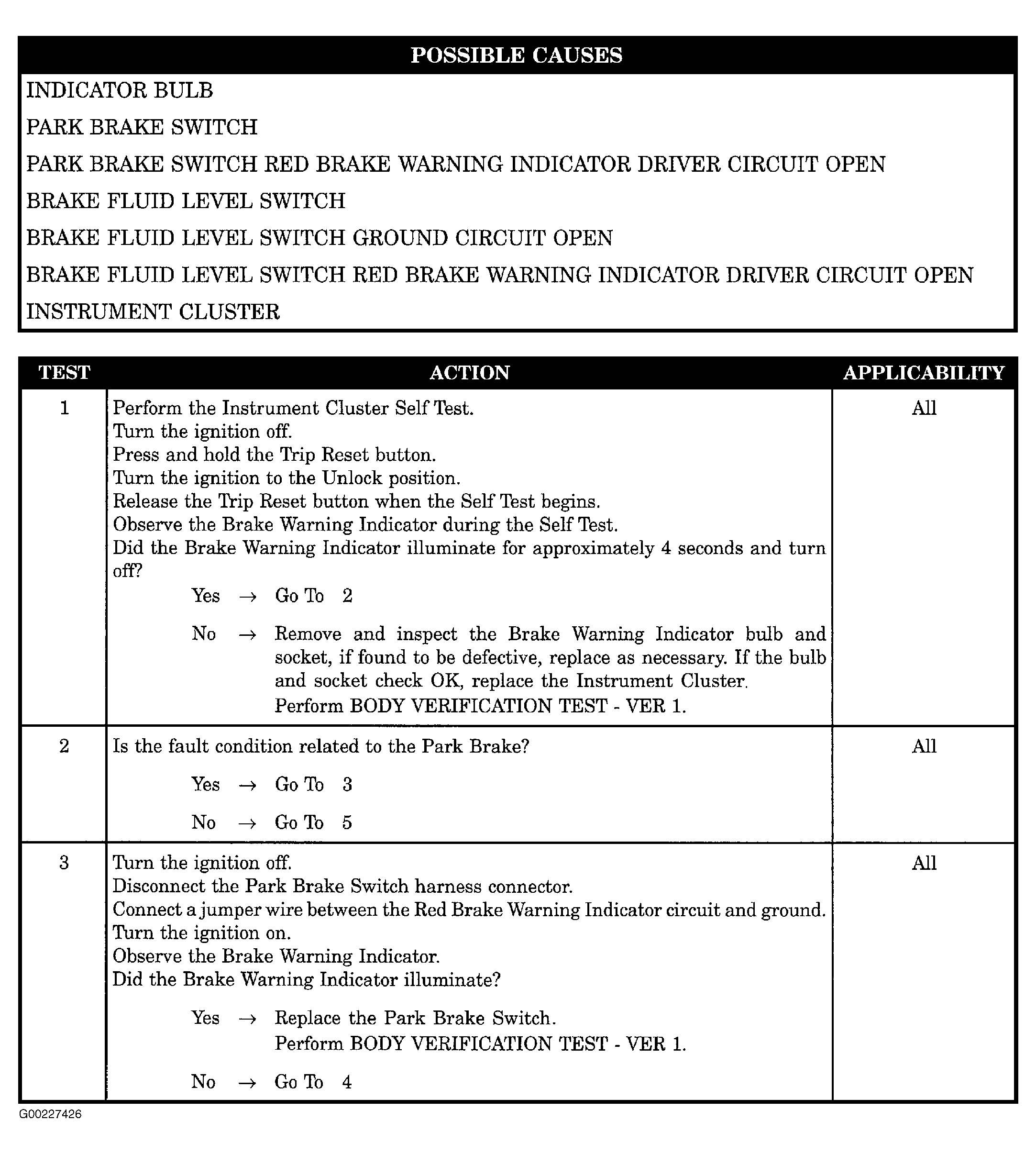

Fig 1: Brake Warning Indicator Inoperative - Steps 1-3 (1 Of 2)

Courtesy of CHRYSLER CORP.

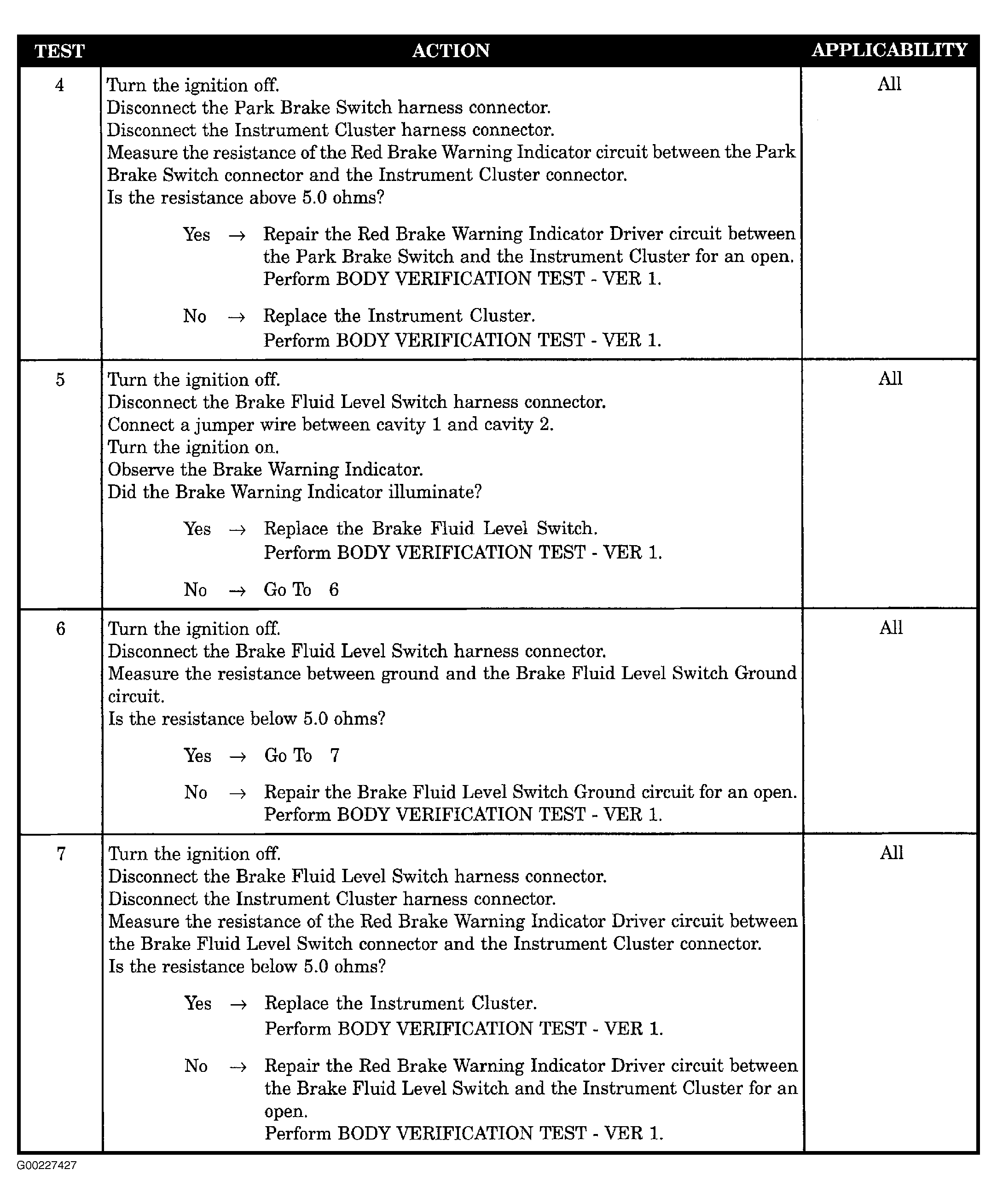

Fig 2: Brake Warning Indicator Inoperative - Steps 4-7 (2 Of 2)

Courtesy of CHRYSLER CORP.
