Body, Cab Control Systems
›
Body Control Modules - Except Coupe
›
System Tests
›
Instrument Cluster Systems
›
Fuel Level Sending Unit Failure
Fuel Level Sending Unit Failure
For testing procedures, see
Fig 1
-
Fig 3
.

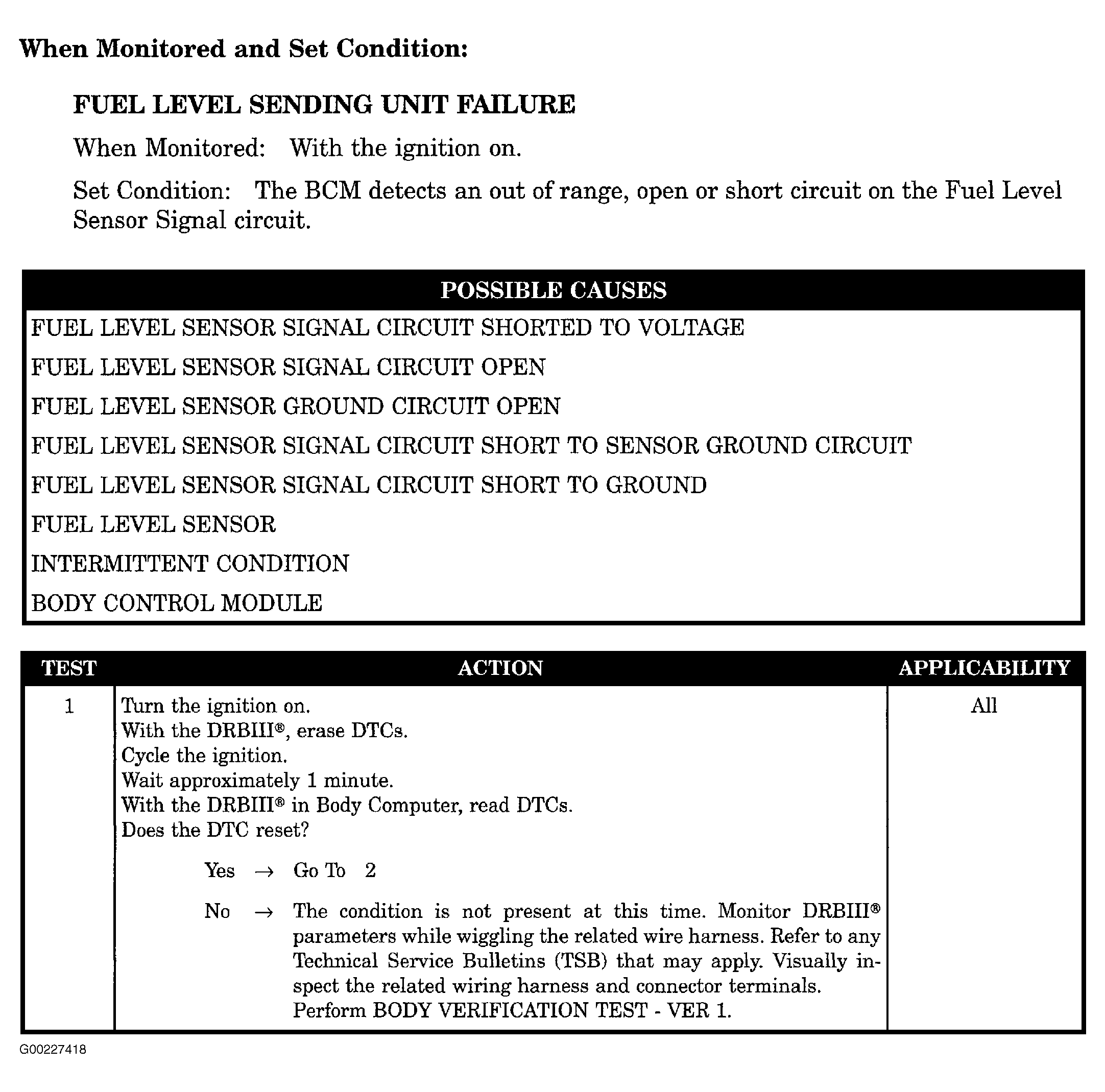

Fig 1: Fuel Level Sending Unit Failure - Step 1 (1 Of 3)
Courtesy of CHRYSLER CORP.

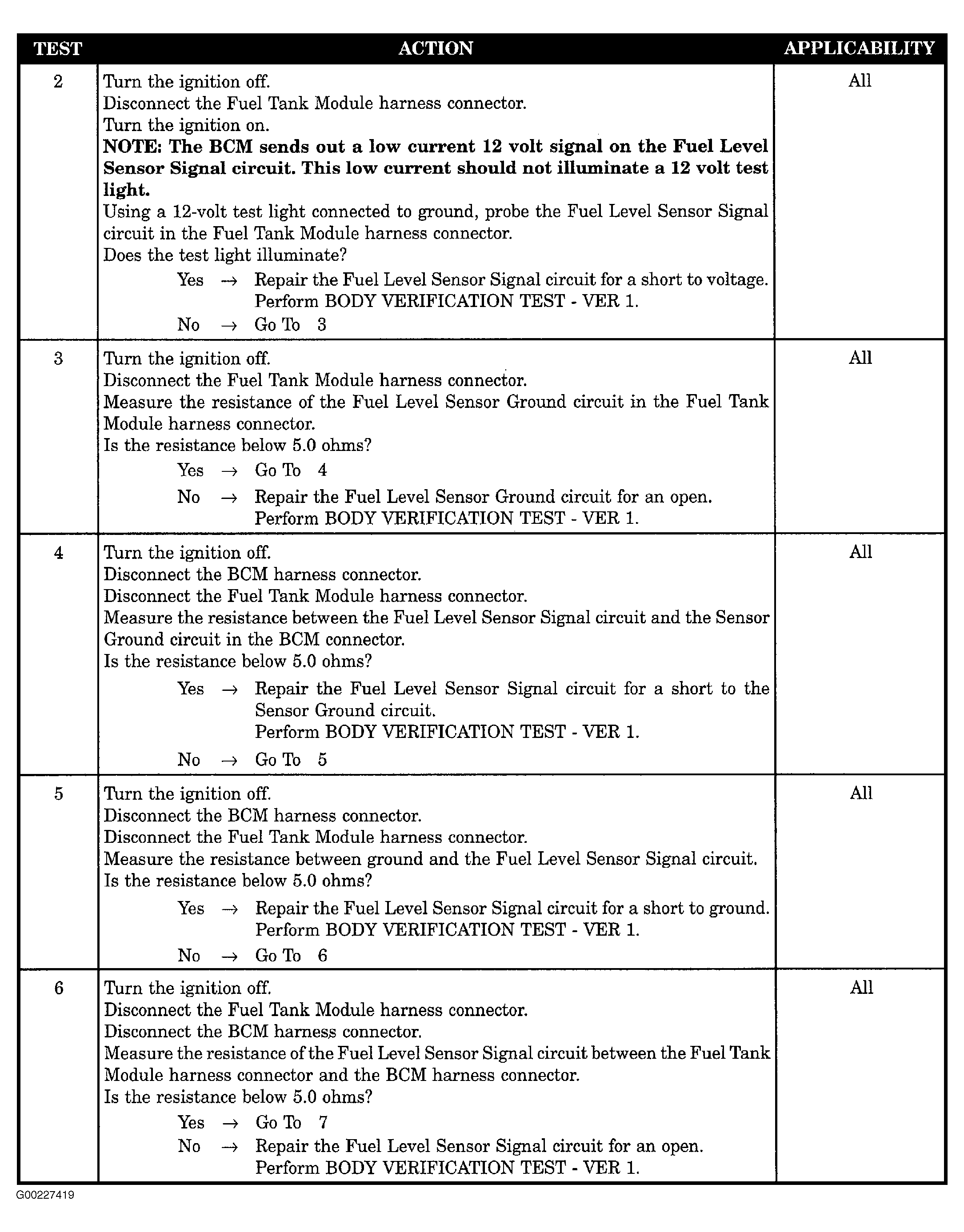

Fig 2: Fuel Level Sending Unit Failure - Steps 2-6 (2 Of 3)
Courtesy of CHRYSLER CORP.

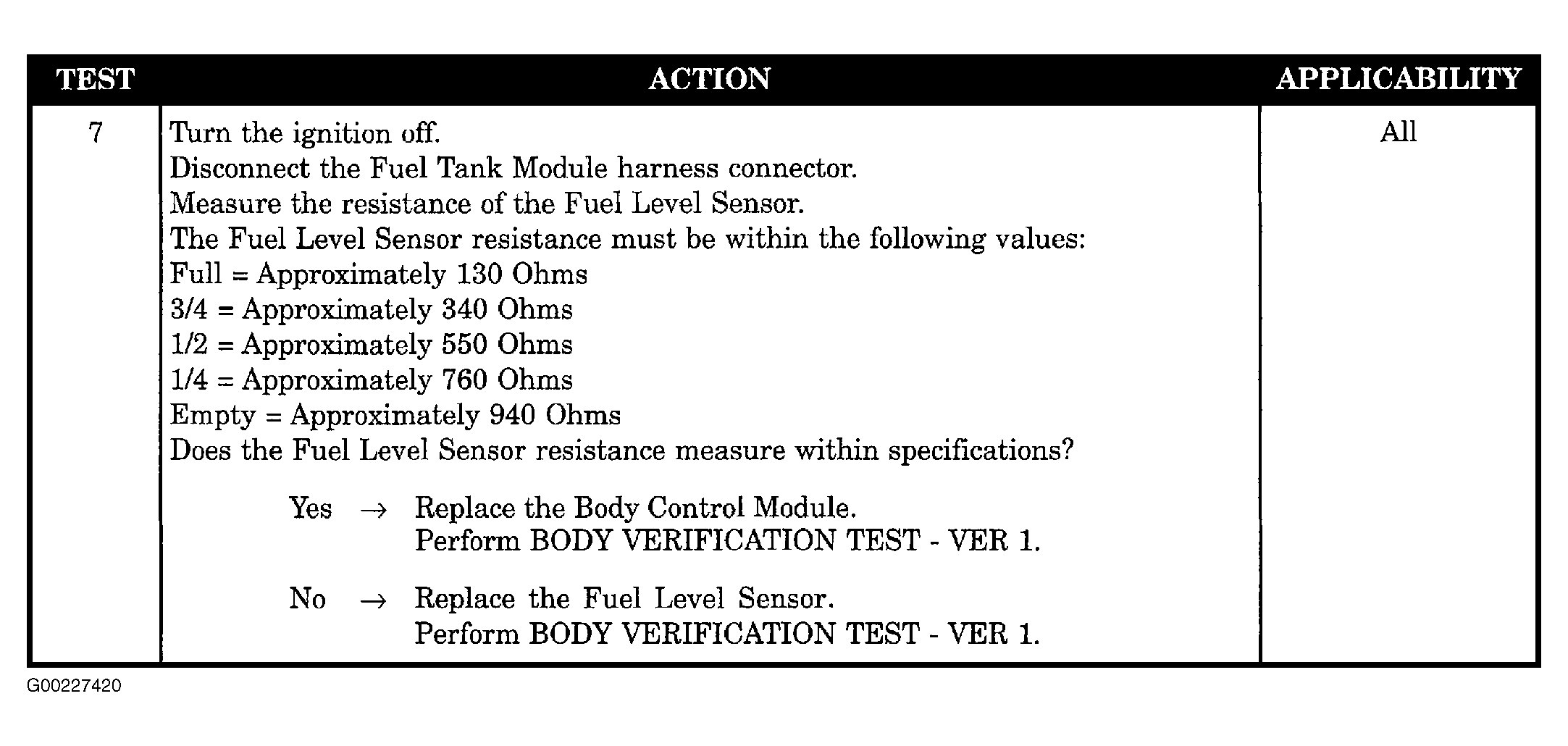

Fig 3: Fuel Level Sending Unit Failure - Step 7 (3 Of 3)
Courtesy of CHRYSLER CORP.
