Low Fuel Warning Indicator Not Operating Properly
For testing procedures, see
Fig 1
.

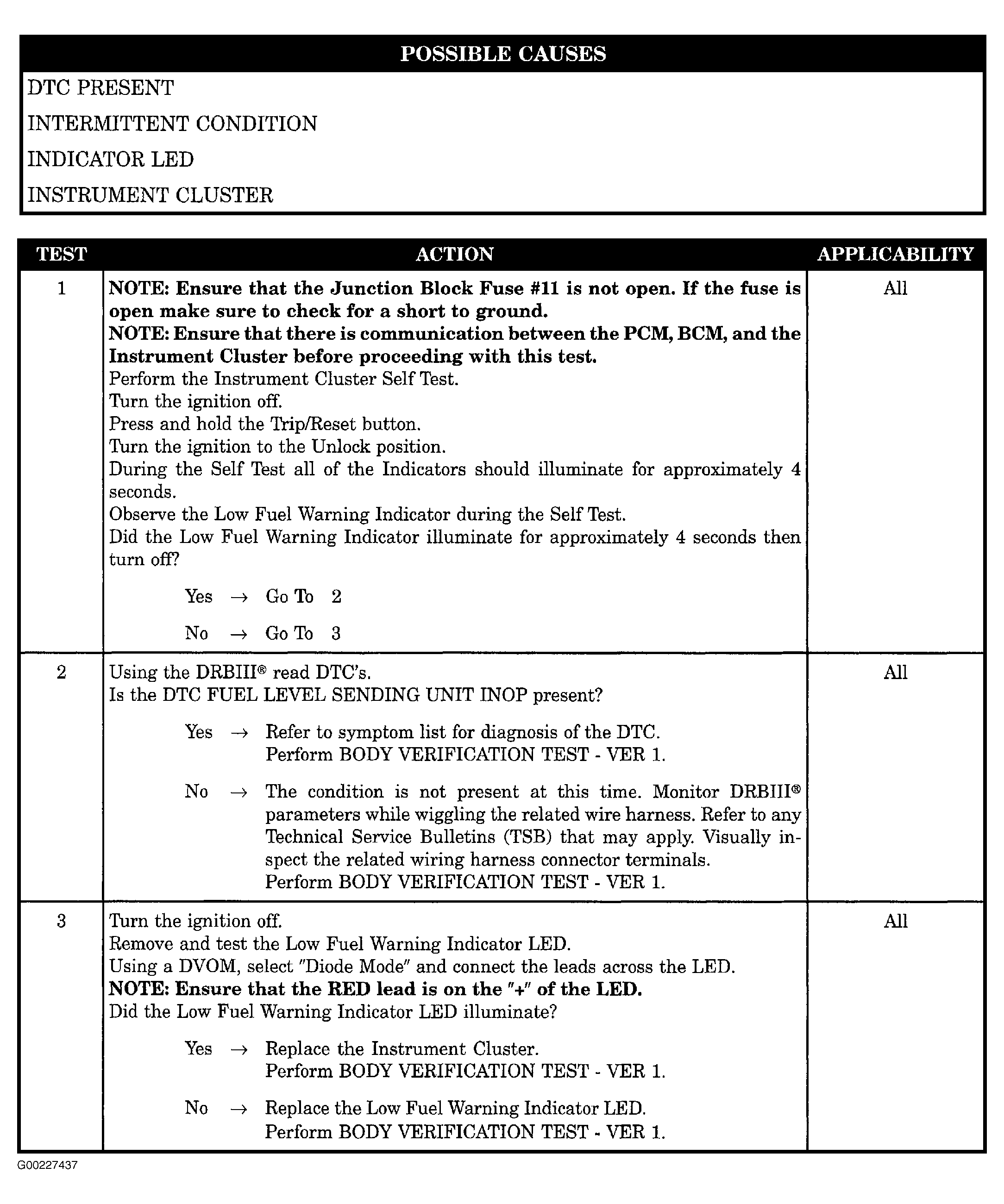

Fig 1: Low Fuel Warning Indicator Not Operating Properly
Courtesy of CHRYSLER CORP.
