Oil Pressure Indicator Not Operating Properly
For testing procedures, see
Fig 1
and
Fig 2
.

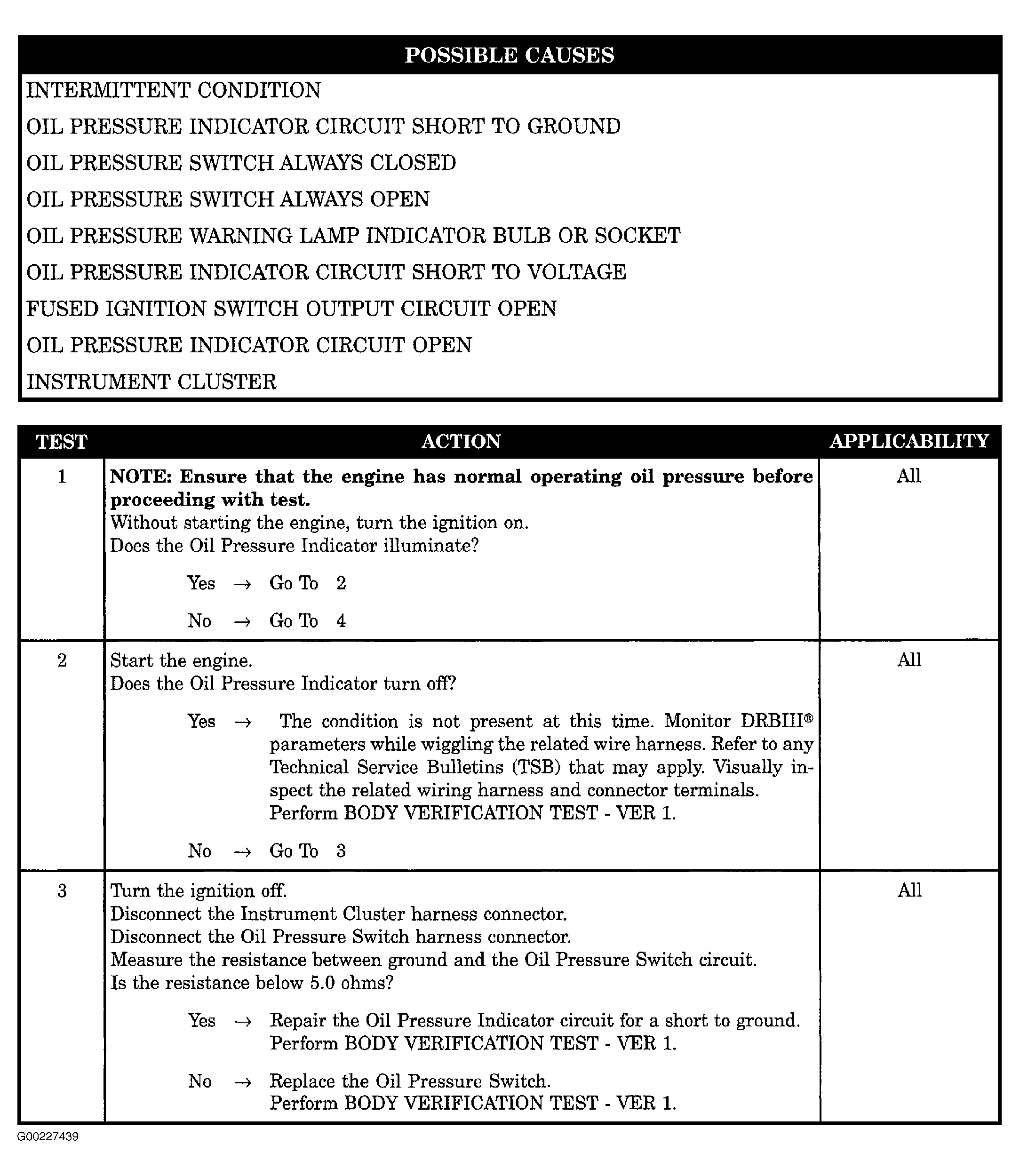

Fig 1: Oil Pressure Indicator Not Operating Properly - Steps 1-3 (1 Of 2)
Courtesy of CHRYSLER CORP.

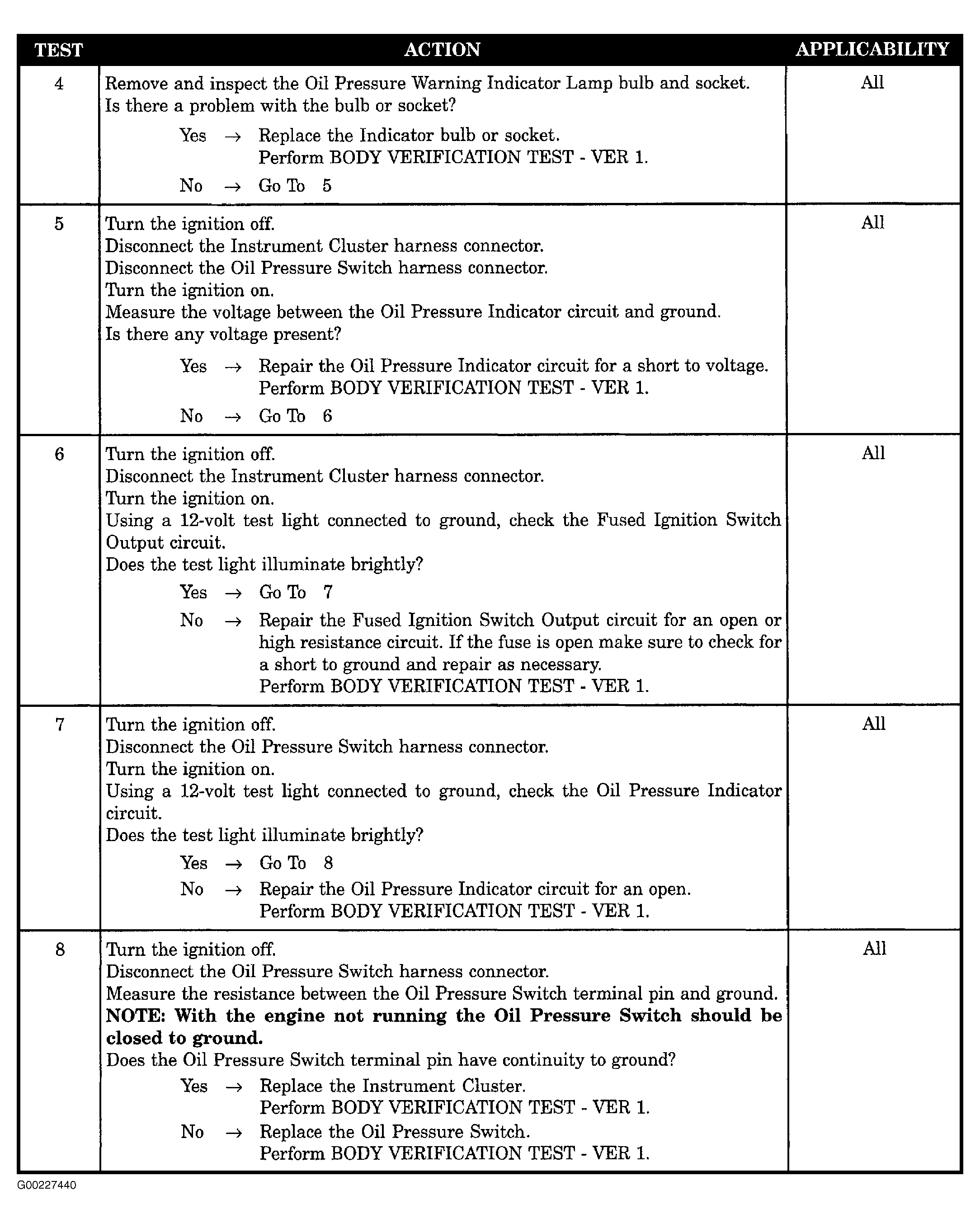

Fig 2: Oil Pressure Indicator Not Operating Properly - Steps 4-8 (2 Of 2)
Courtesy of CHRYSLER CORP.
