Wiper On/Off Relay Output Shorted High

For testing procedures, see Fig 1 .

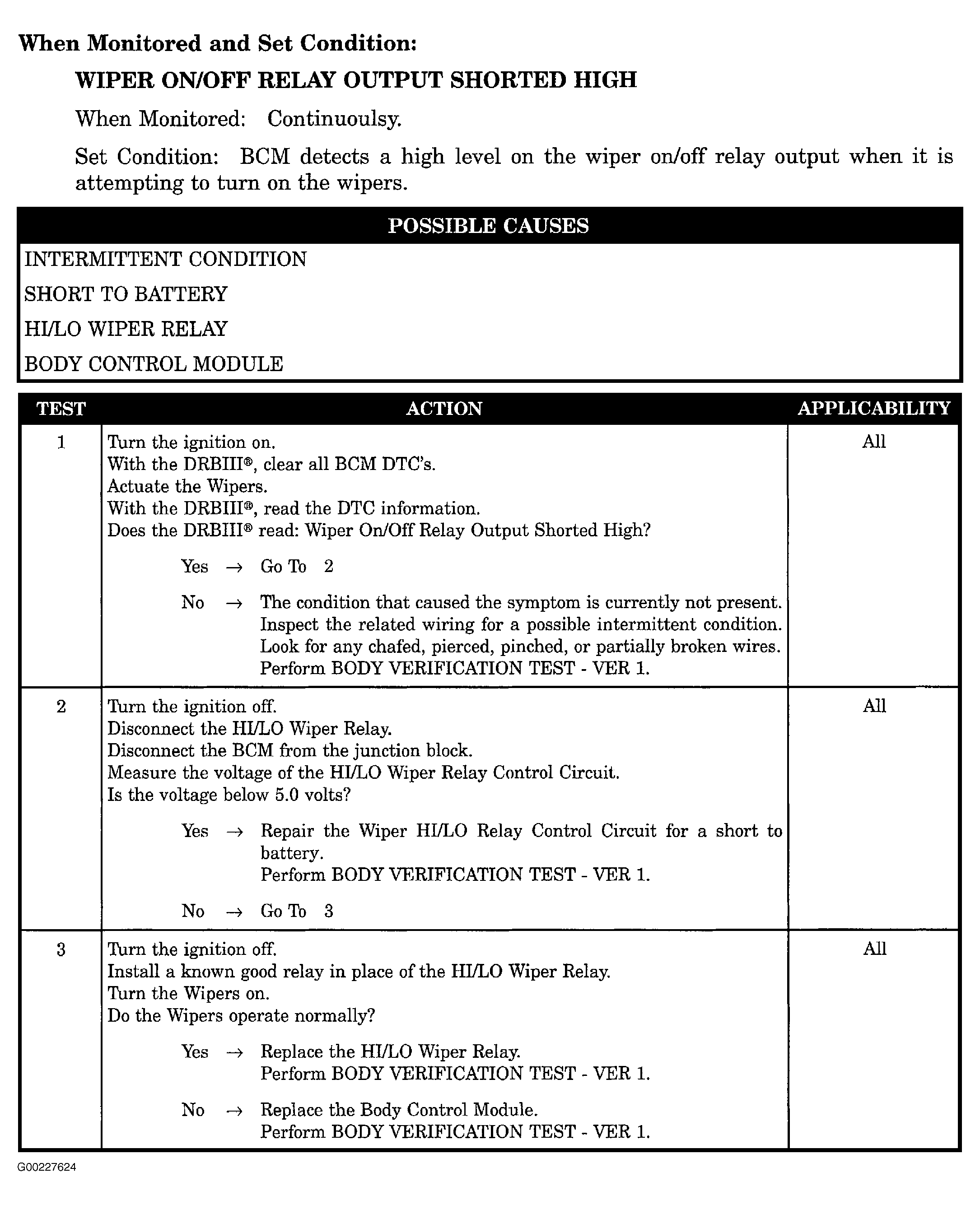

Fig 1: Wiper On/Off Relay Output Shorted High
G00227624Courtesy of CHRYSLER CORP.
