RKE Unable To Enter Program Mode

For testing procedures, see Fig 1 .

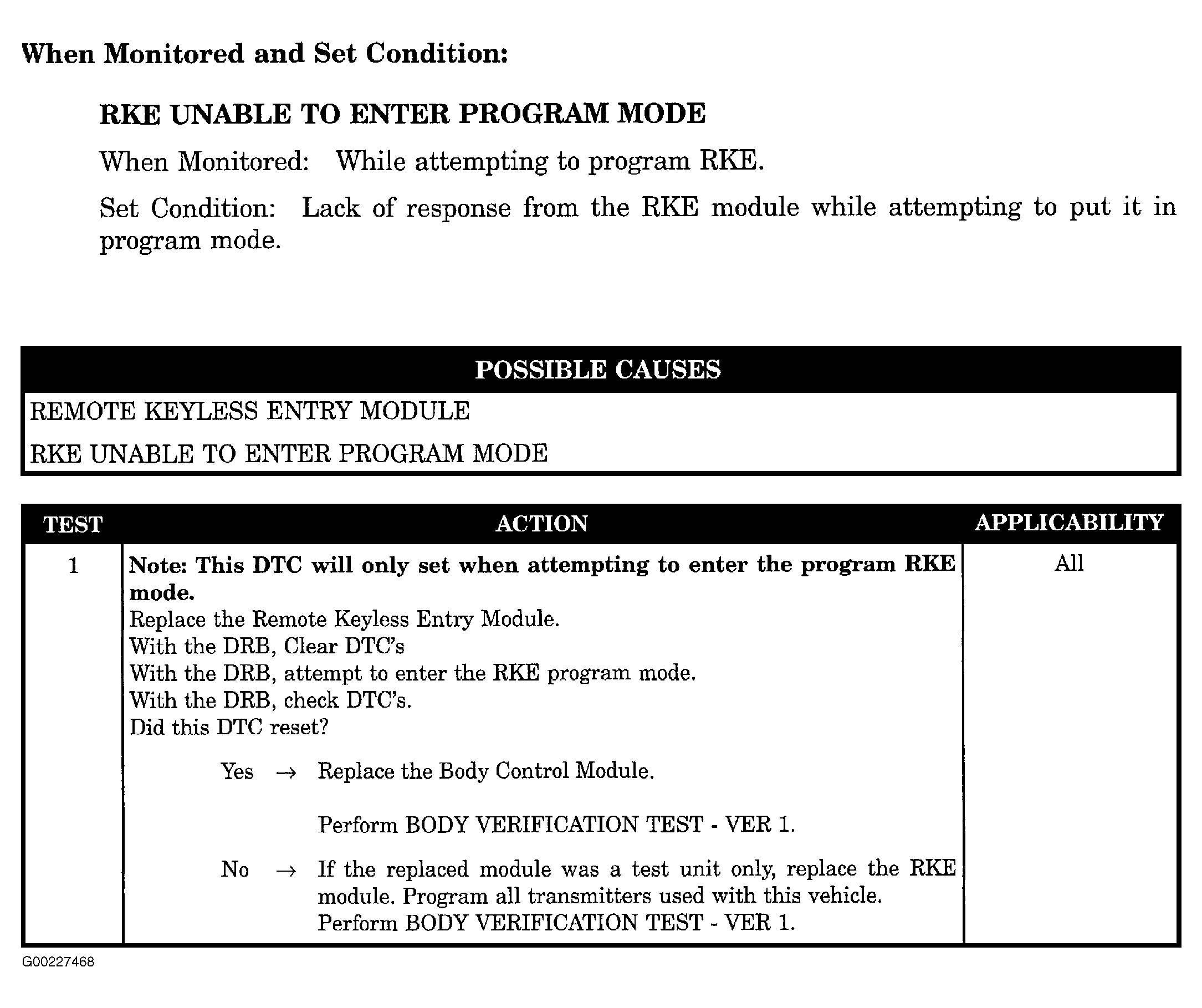

Fig 1: RKE Unable To Enter Program Mode

G00227468

Courtesy of CHRYSLER CORP.
