VTSS Indicator Inoperative

For testing procedures, see Fig 1 and Fig 2 .

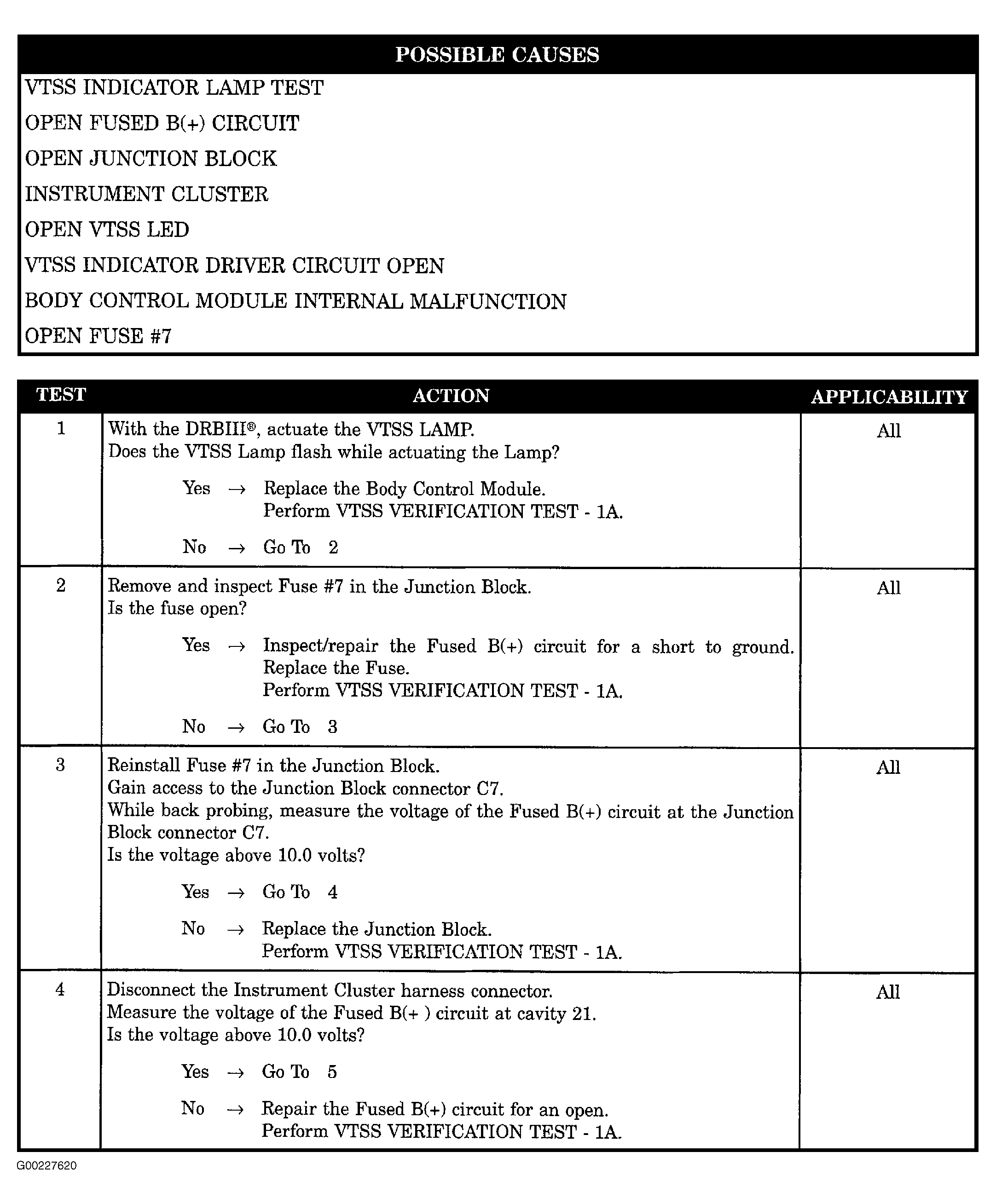

Fig 1: VTSS Indicator Inoperative - Steps 1-4 (1 Of 2)

Courtesy of CHRYSLER CORP.

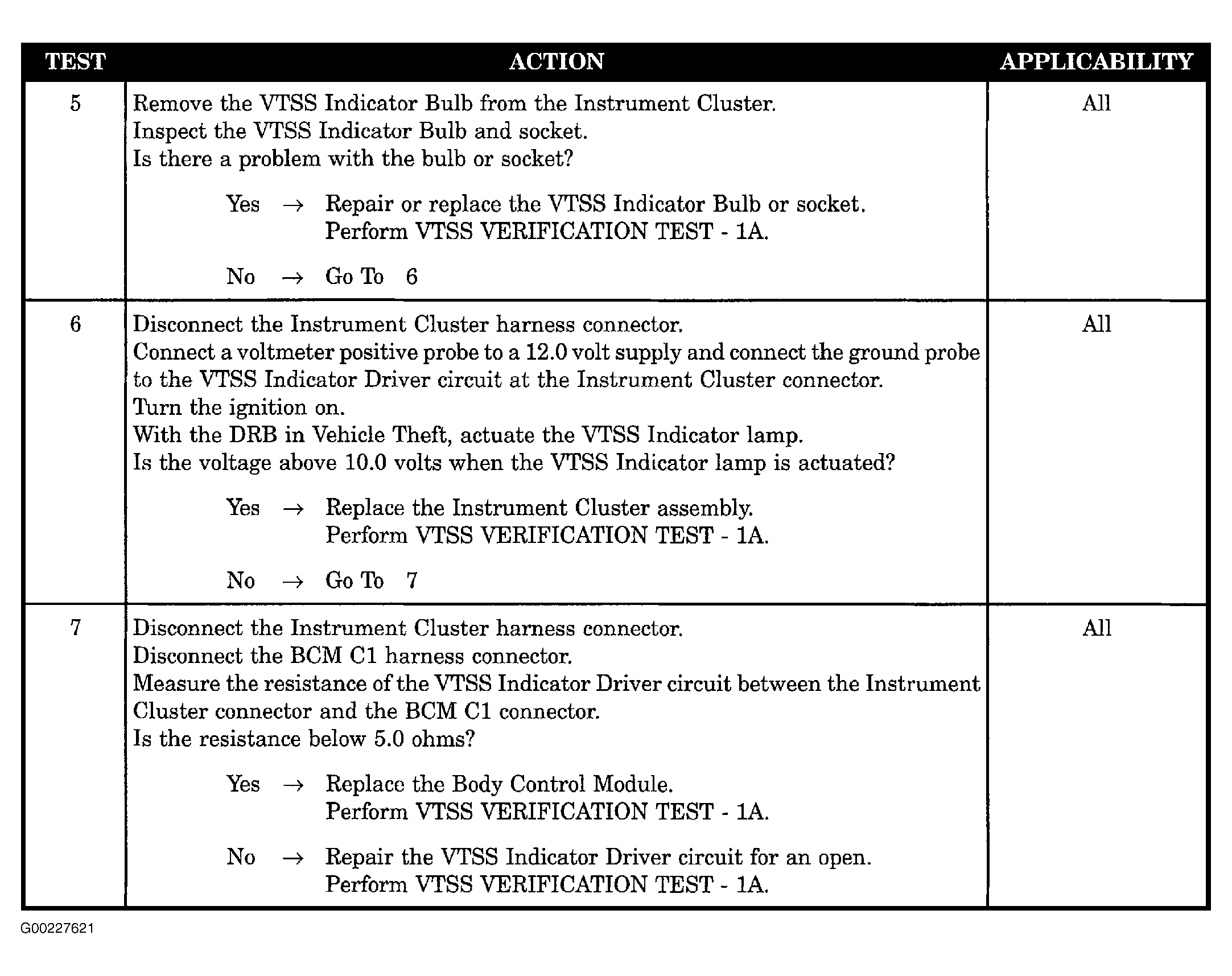

Fig 2: VTSS Indicator Inoperative - Steps 5-7 (2 Of 2)

Courtesy of CHRYSLER CORP.
