PCM Messages Not Received

For testing procedures, see Fig 1 and Fig 2 .

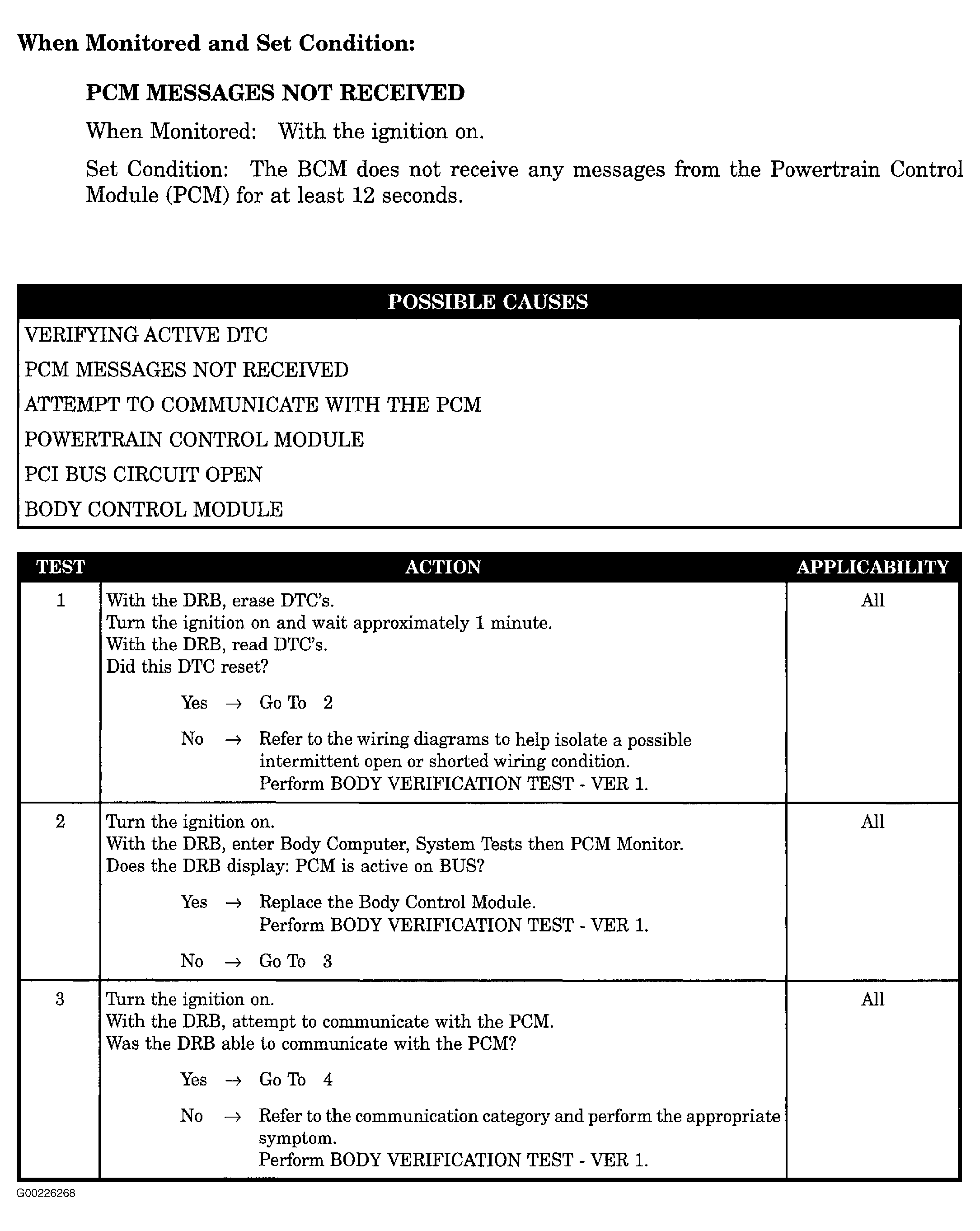

Fig 1: PCM Messages Not Received - Steps 1-3 (1 Of 2)

Courtesy of CHRYSLER CORP.

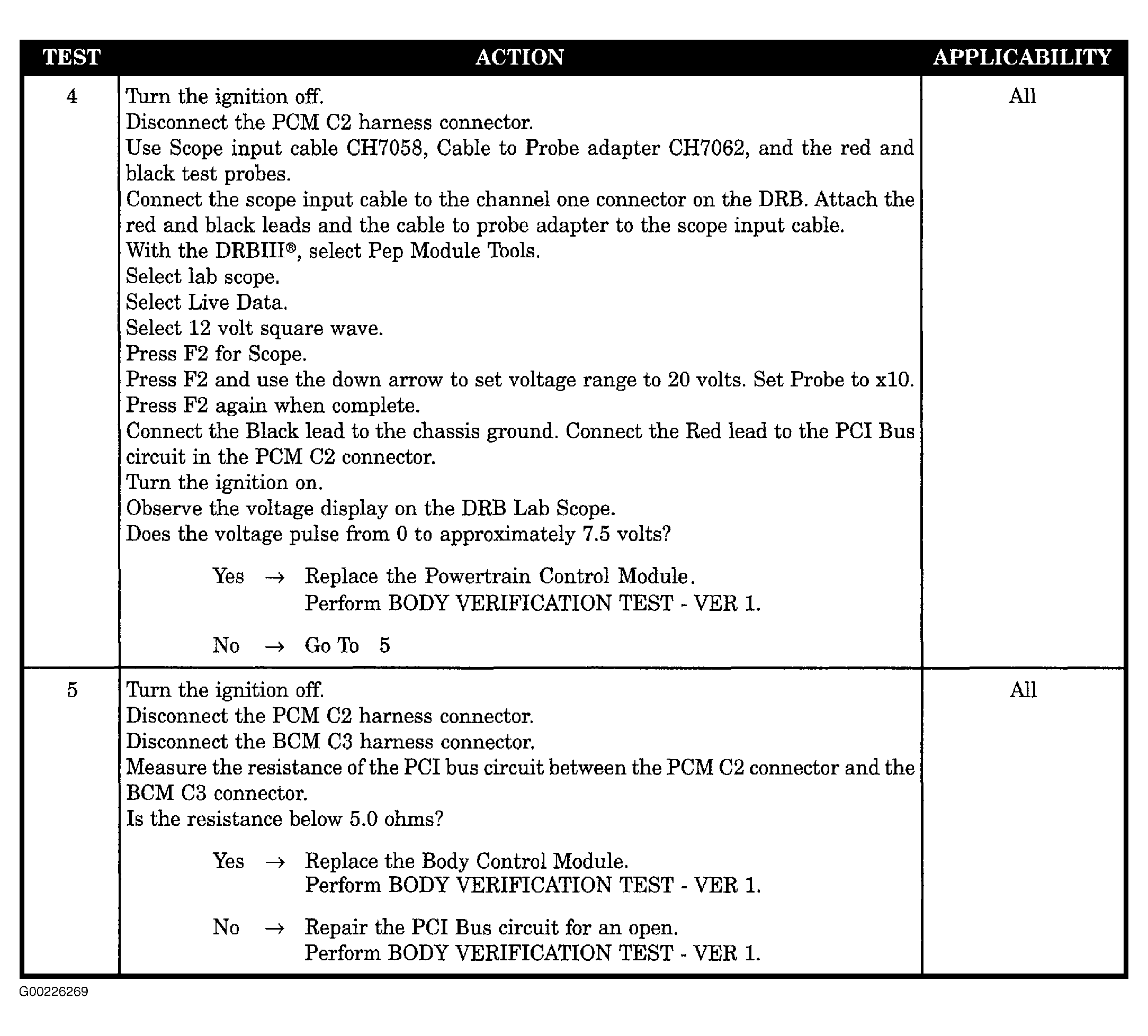

Fig 2: PCM Messages Not Received - Steps 4 & 5 (2 Of 2)

Courtesy of CHRYSLER CORP.
