Power AMP Shutdown - Base Audio System

For testing procedures, see Fig 1 and Fig 2 .

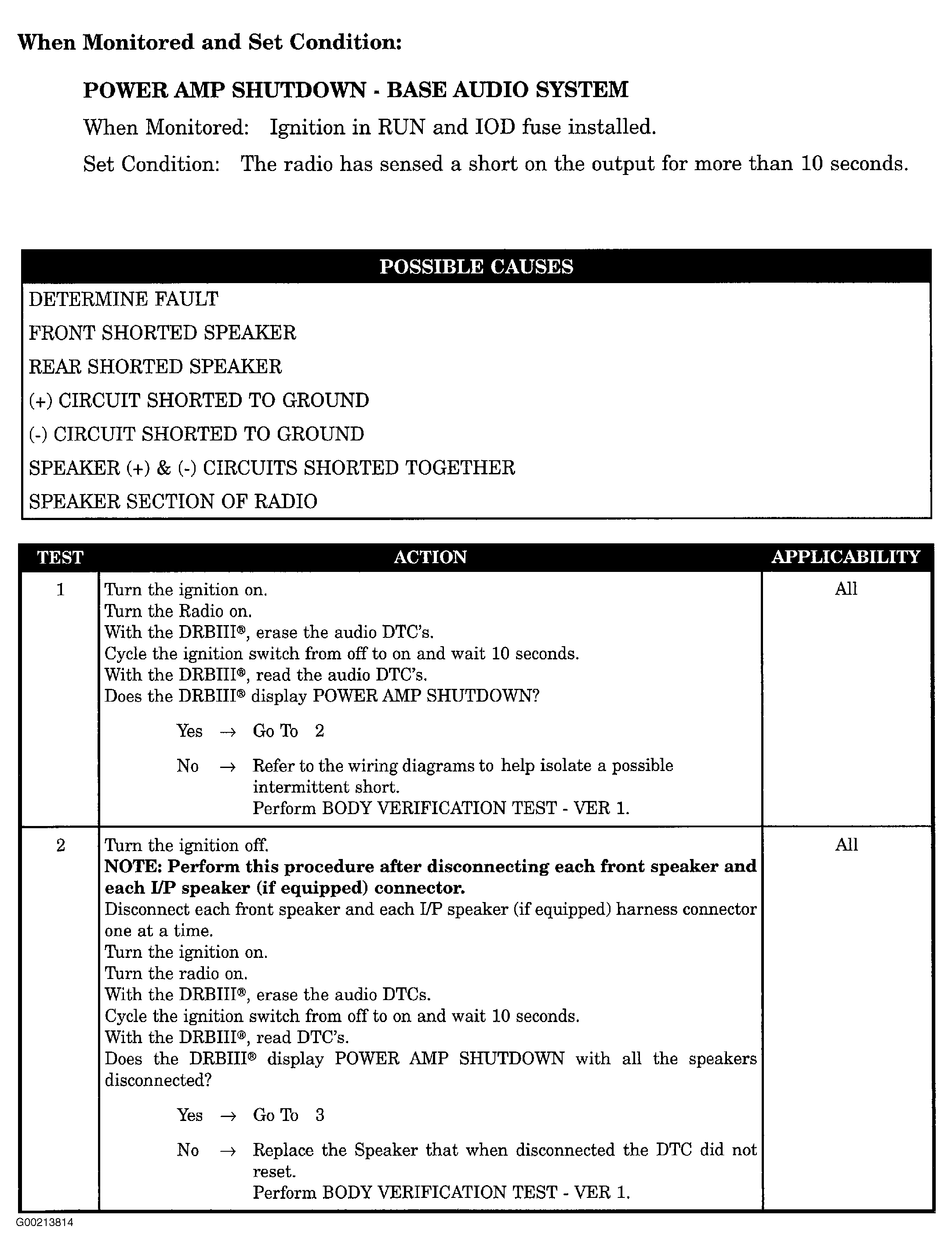

Fig 1: Power AMP Shutdown - Base Audio System - Steps 1 & 2 (1 Of 2)

Courtesy of CHRYSLER CORP.

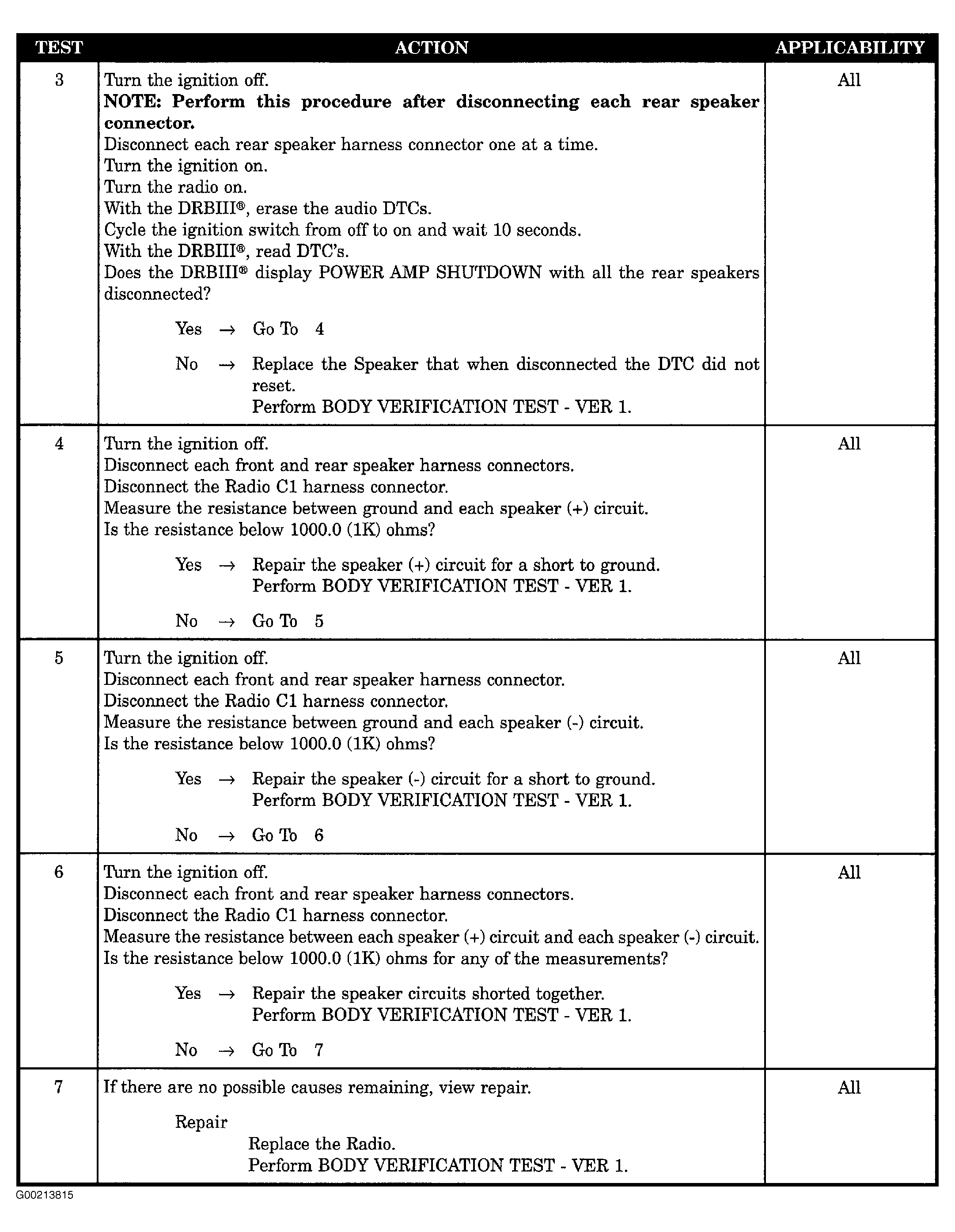

Fig 2: Power AMP Shutdown - Base Audio System - Steps 3-7 (2 Of 2)

Courtesy of CHRYSLER CORP.
