Common Output Shorted To Ground

For testing procedures, see Fig 1 and Fig 2 .

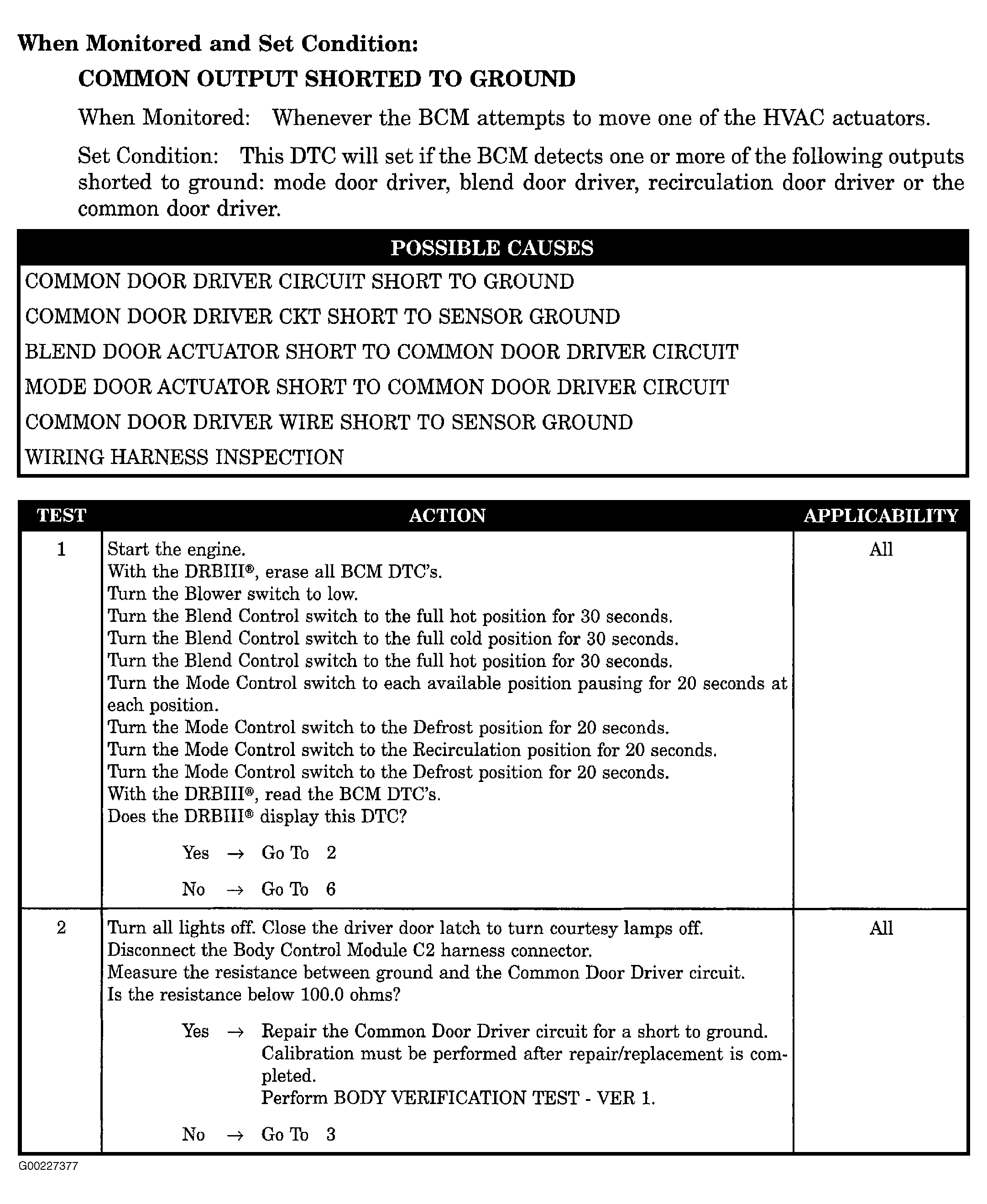

Fig 1: Common Output Shorted To Ground - Steps 1 & 2 (1 Of 2)

Courtesy of CHRYSLER CORP.

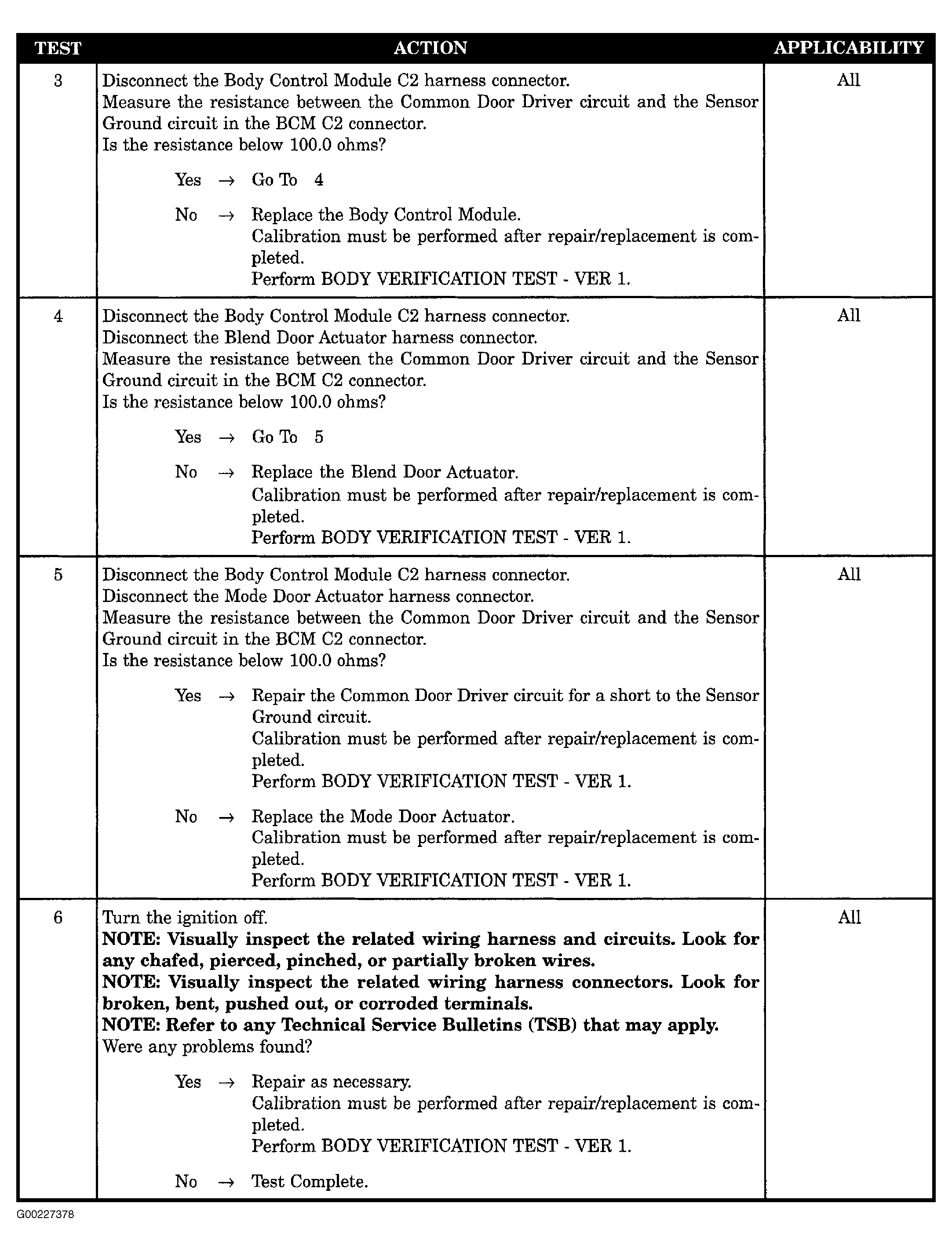

Fig 2: Common Output Shorted To Ground - Steps 3-6 (2 Of 2)

Courtesy of CHRYSLER CORP.
