A/C Pressure Sensor Connector End View
A/C Pressure Sensor Connector End View

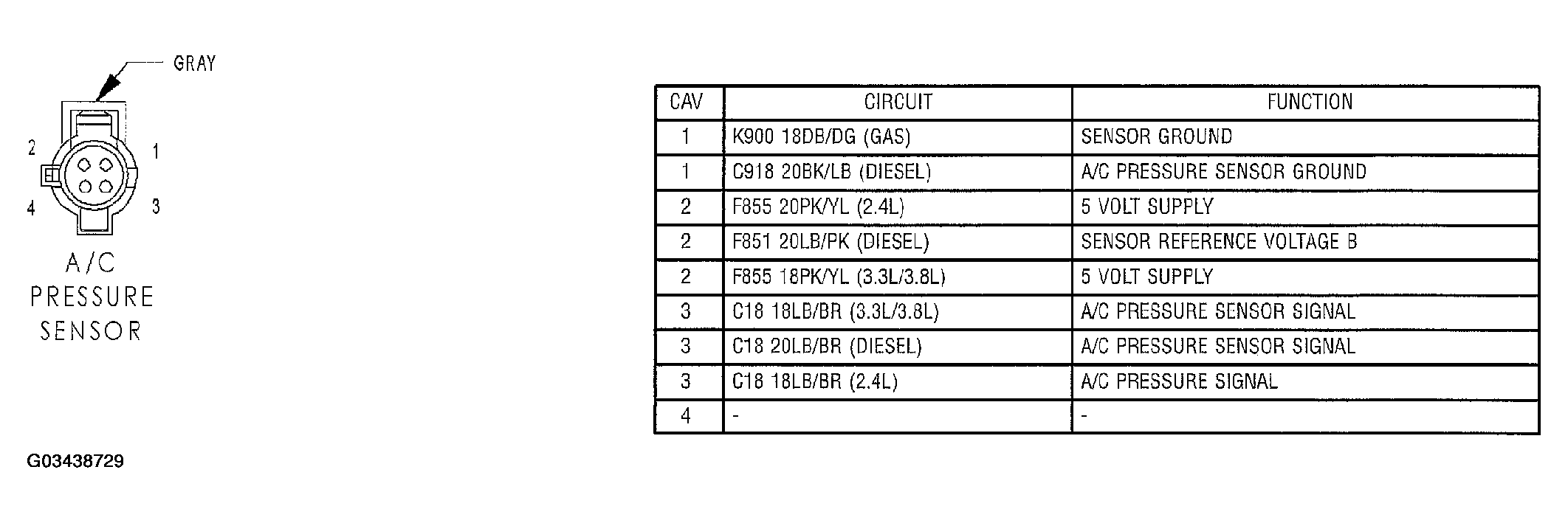

Fig 1: A/C Pressure Sensor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
