Adjustable Pedals Module (Except Export) - 14-Way Connector End View

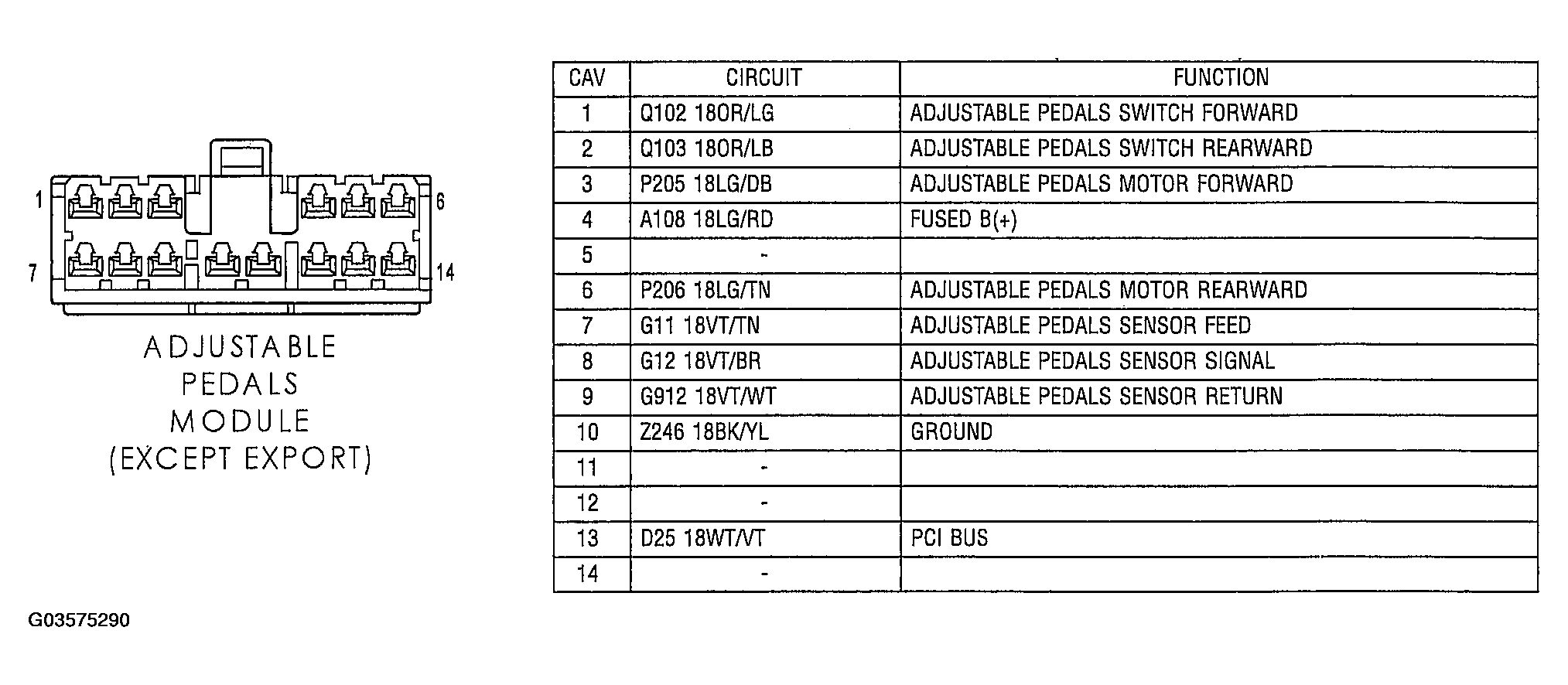

Fig 1: Adjustable Pedals Module (Except Export) - 14-Way Connector End View
G03575290Courtesy of CHRYSLER GROUP, LLC
