Disassembly - ICU
- Remove the ICU from the vehicle. (Refer to REMOVAL
).
- Disconnect the pump/motor wiring harness from the CAB (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.

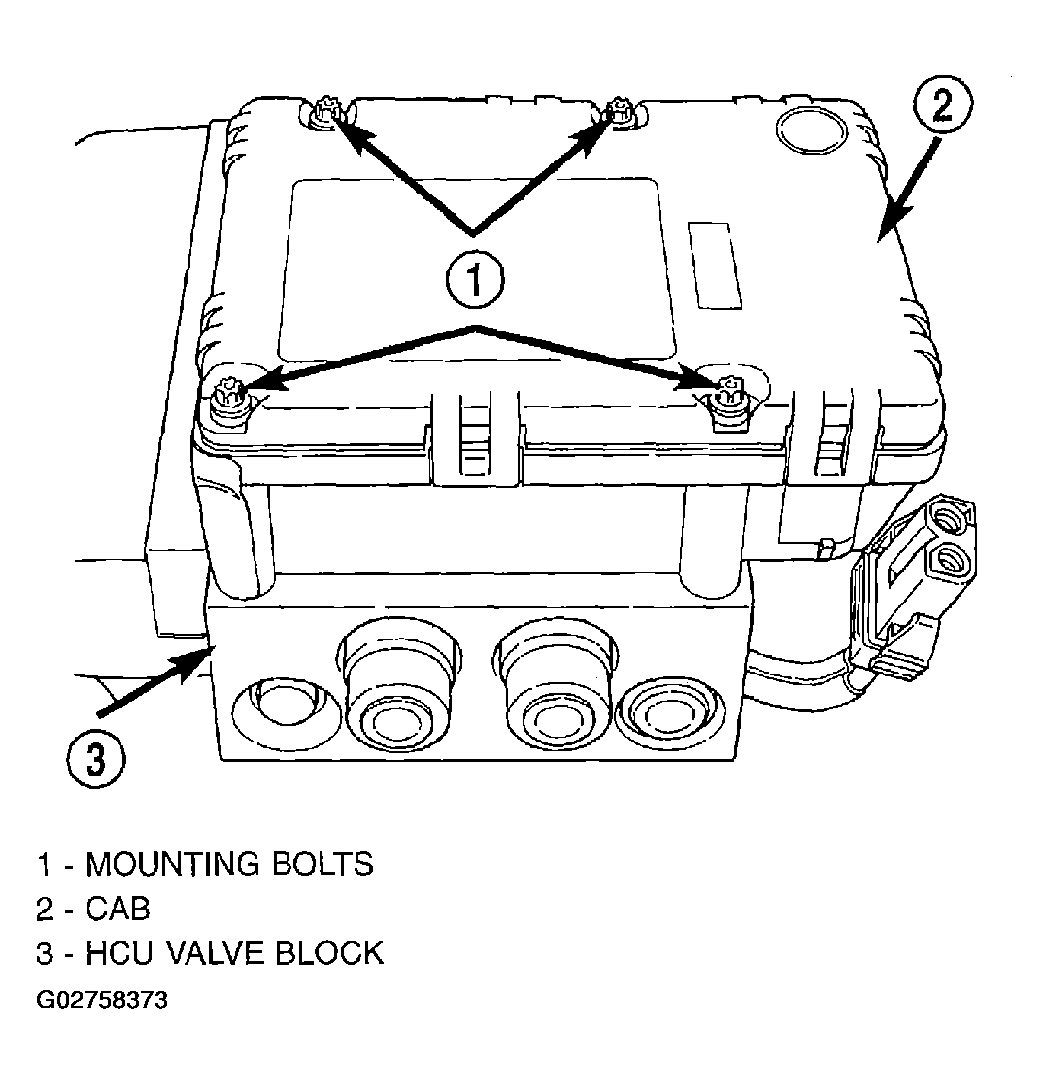

- Remove the 4 bolts (Fig 2
) attaching the CAB to the HCU.
Courtesy of DAIMLERCHRYSLER CORP.

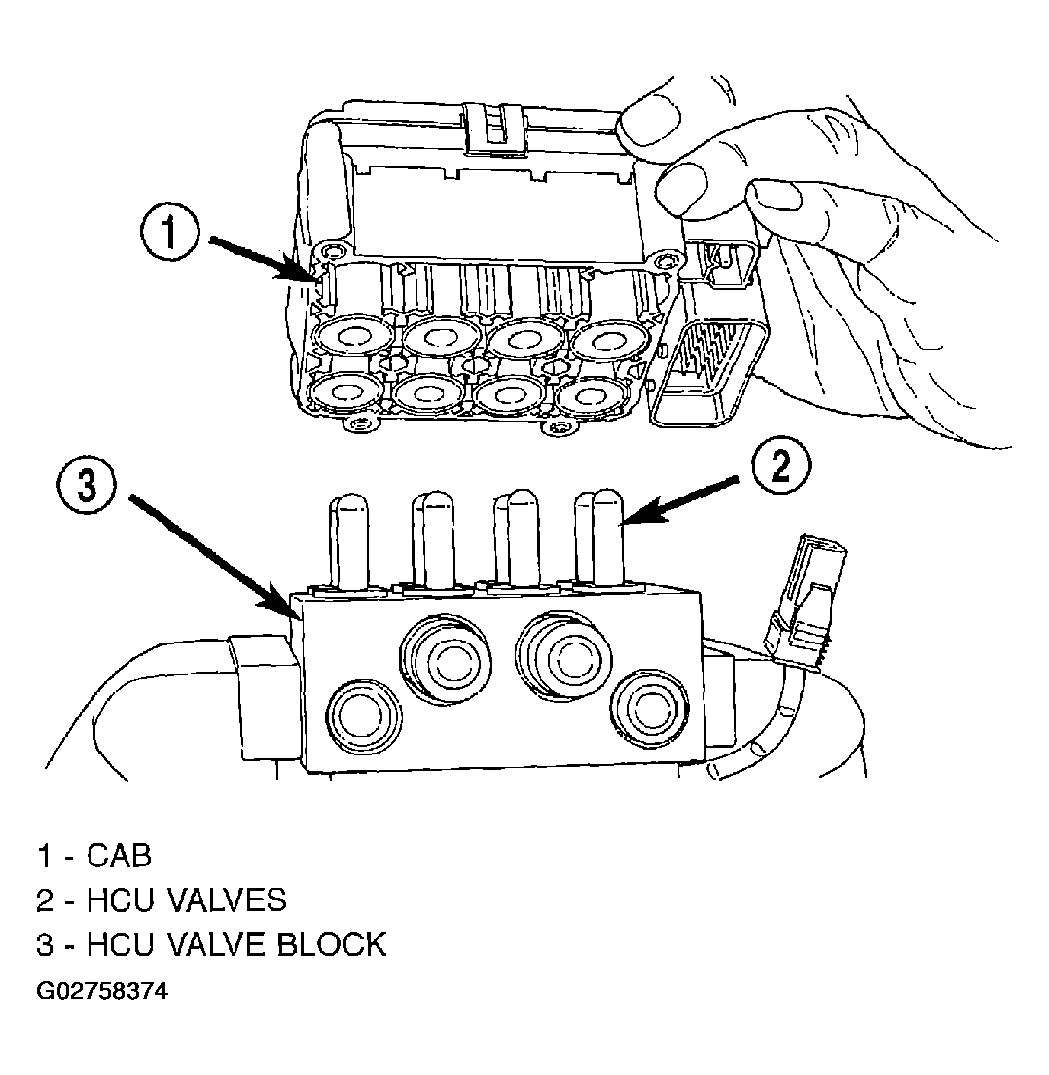

- Remove the CAB from the HCU (Fig 3
).
