Body Control Module Connector End View (C1)
Body Control Module Connector End View (C1)

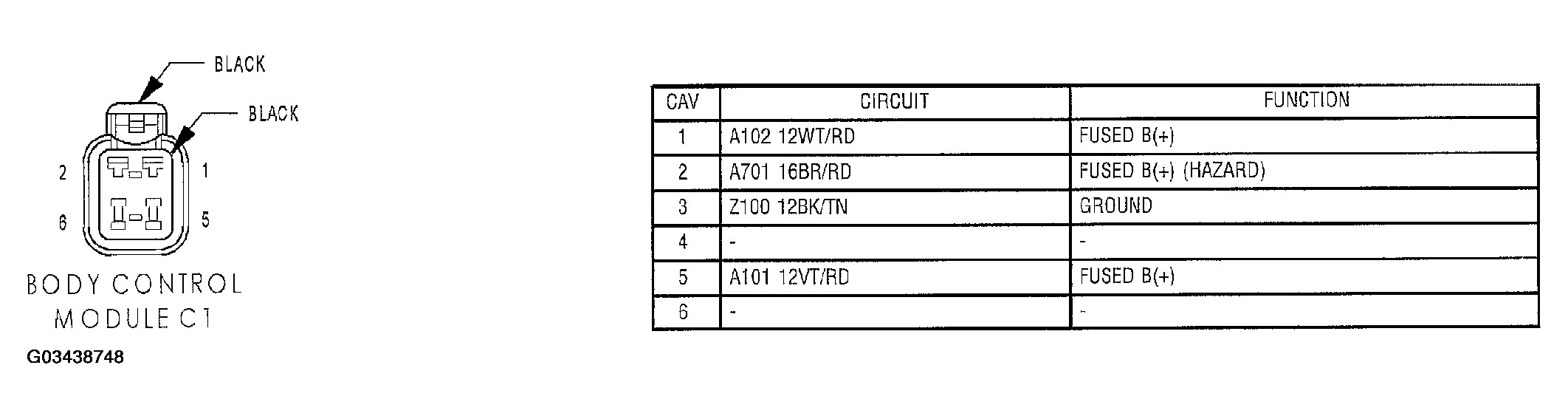

Fig 1: Body Control Module Connector End View (C1)
Courtesy of CHRYSLER GROUP, LLC
