Body Control Module Connector End View (C2)

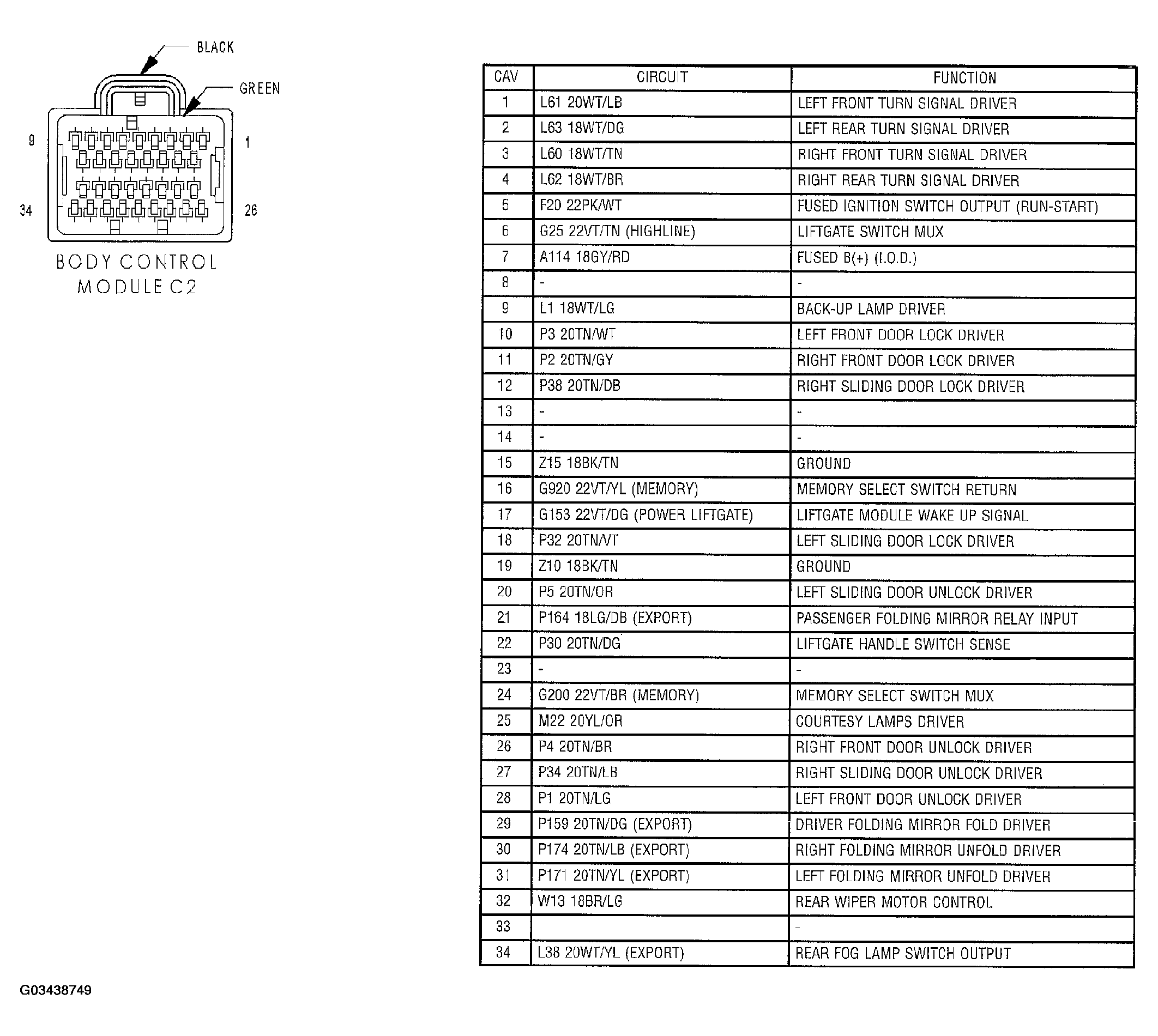

Fig 1: Body Control Module Connector End View (C2)
G03438749Courtesy of CHRYSLER GROUP, LLC
