Body Control Module Connector End View (C3)

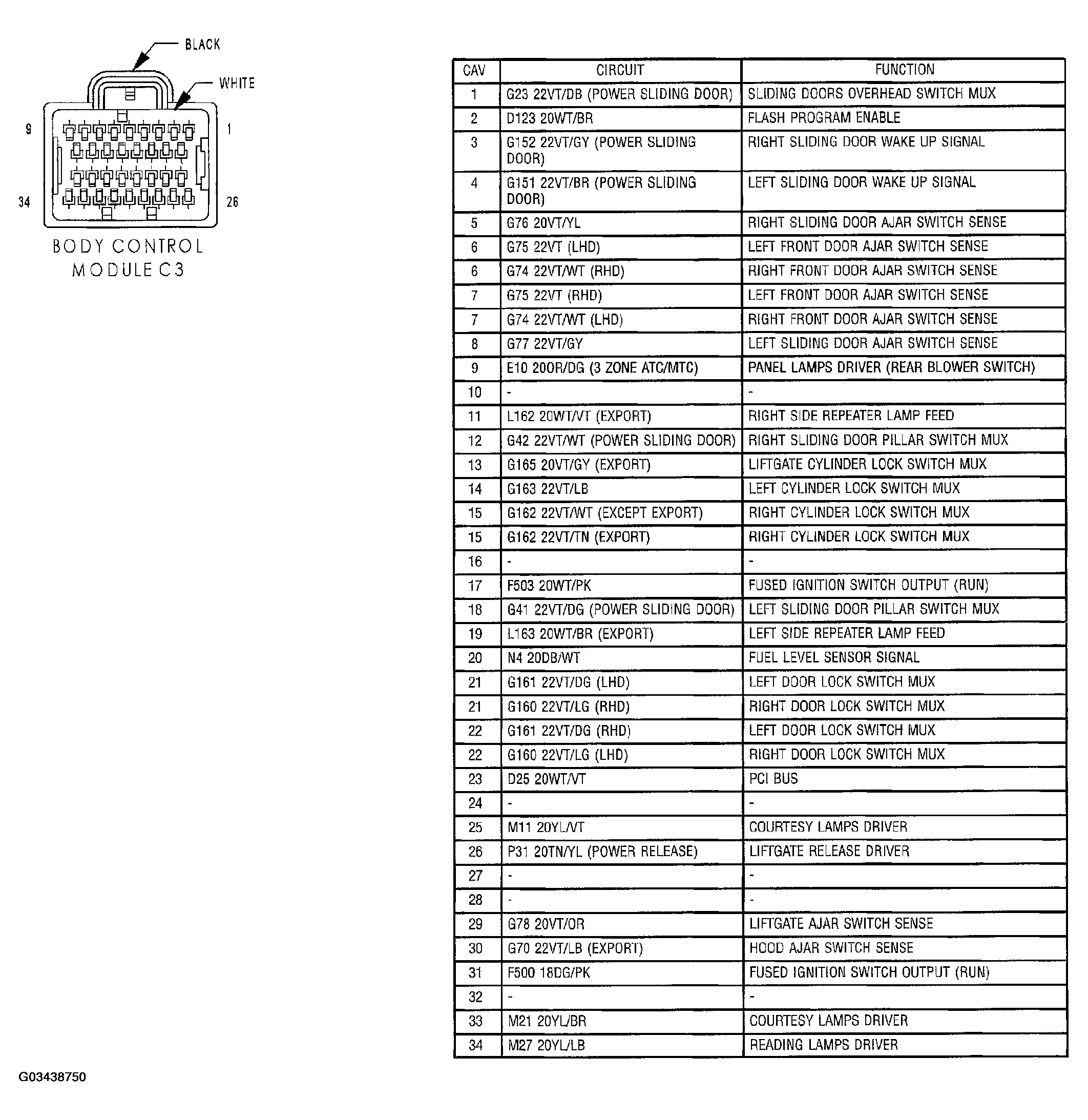

Fig 1: Body Control Module Connector End View (C3)
G03438750Courtesy of CHRYSLER GROUP, LLC
