Home › Chrysler › 2002 › Voyager EC › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Body Control Module Connector End View (C4)

Body Control Module Connector End View (C4)

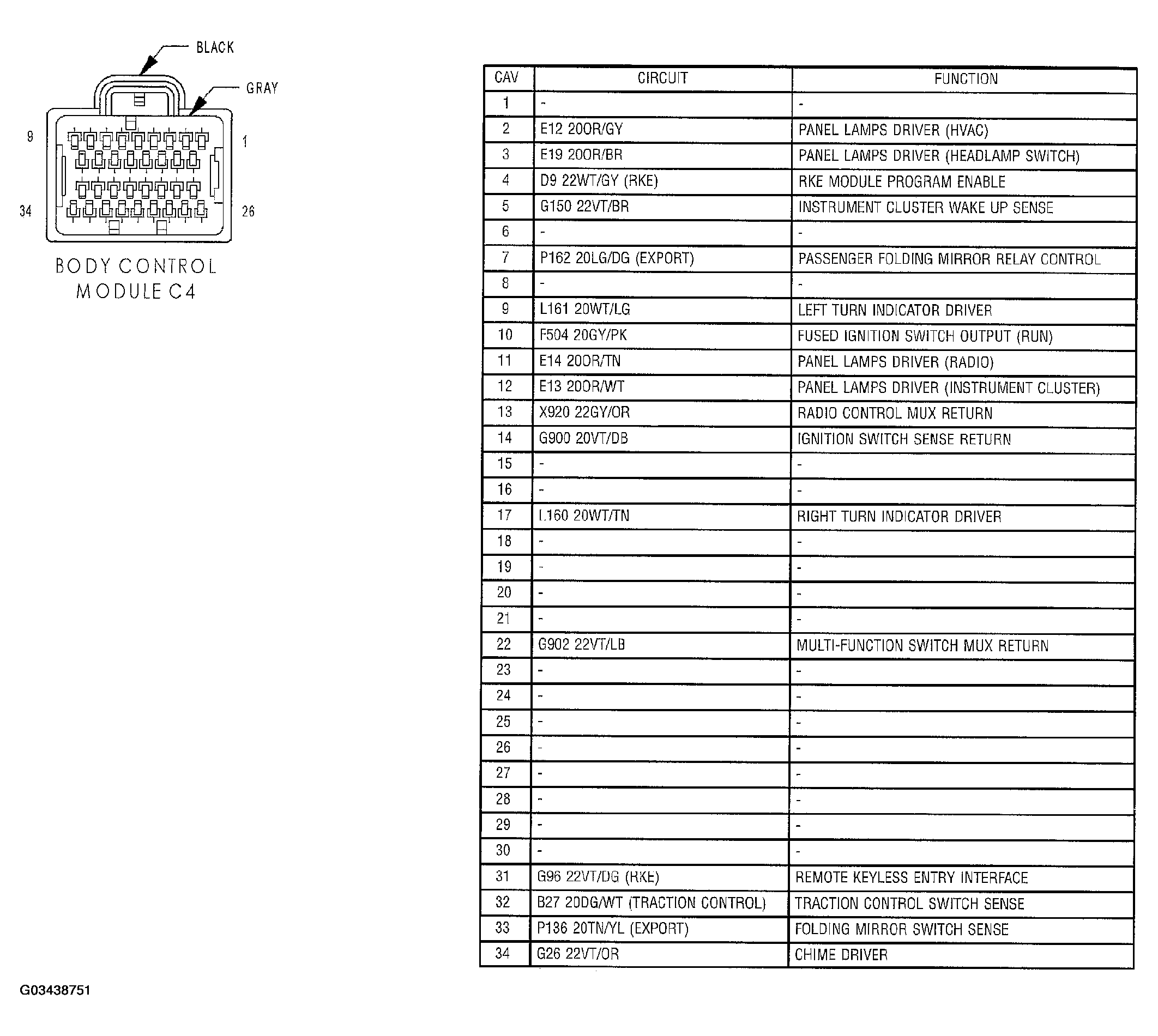

Fig 1: Body Control Module Connector End View (C4)
G03438751Courtesy of CHRYSLER GROUP, LLC
