Body Control Module Connector End View (C5)

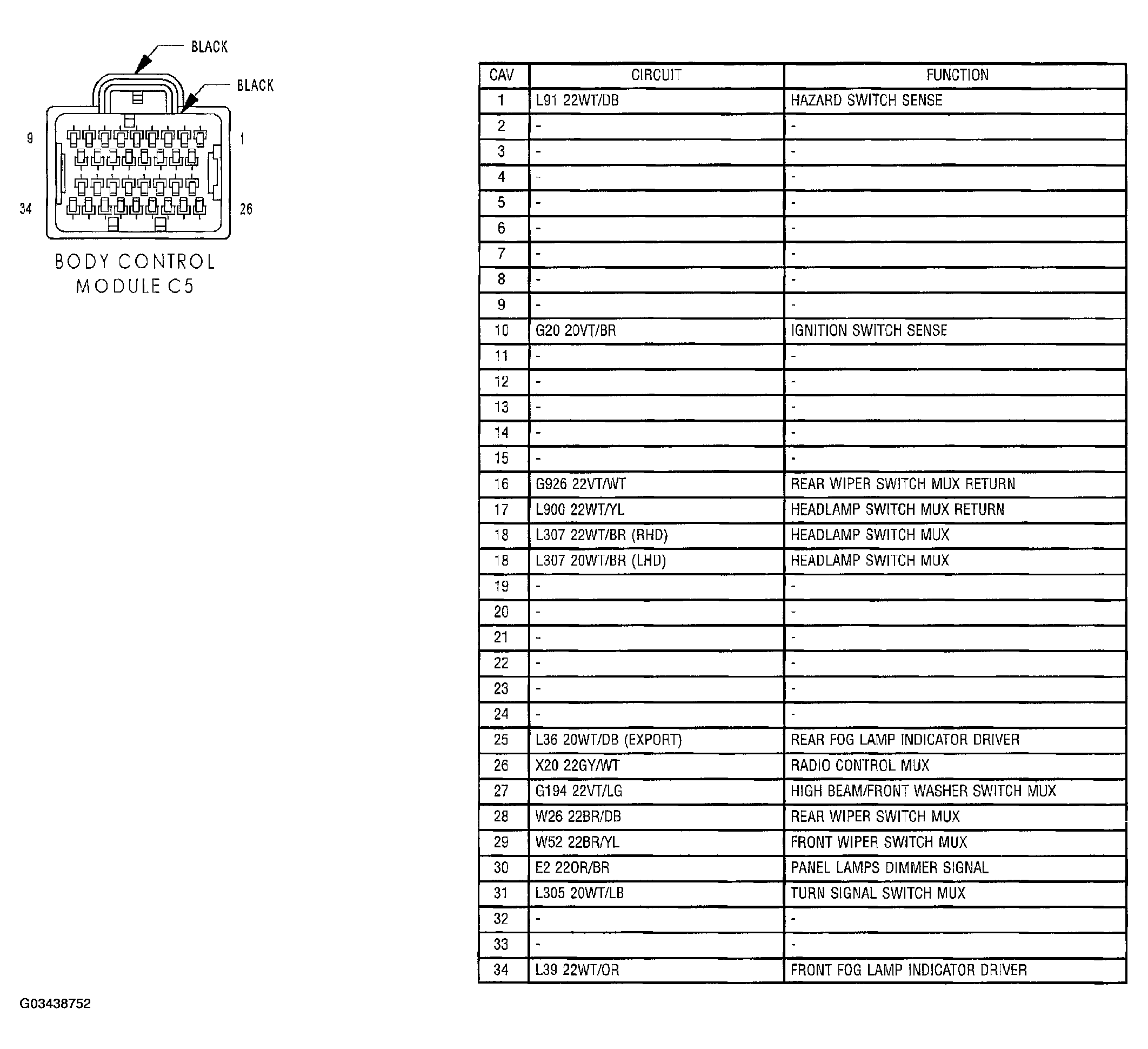

Fig 1: Body Control Module Connector End View (C5)
G03438752Courtesy of CHRYSLER GROUP, LLC
