DVD Screen Connector End View
DVD Screen Connector End View

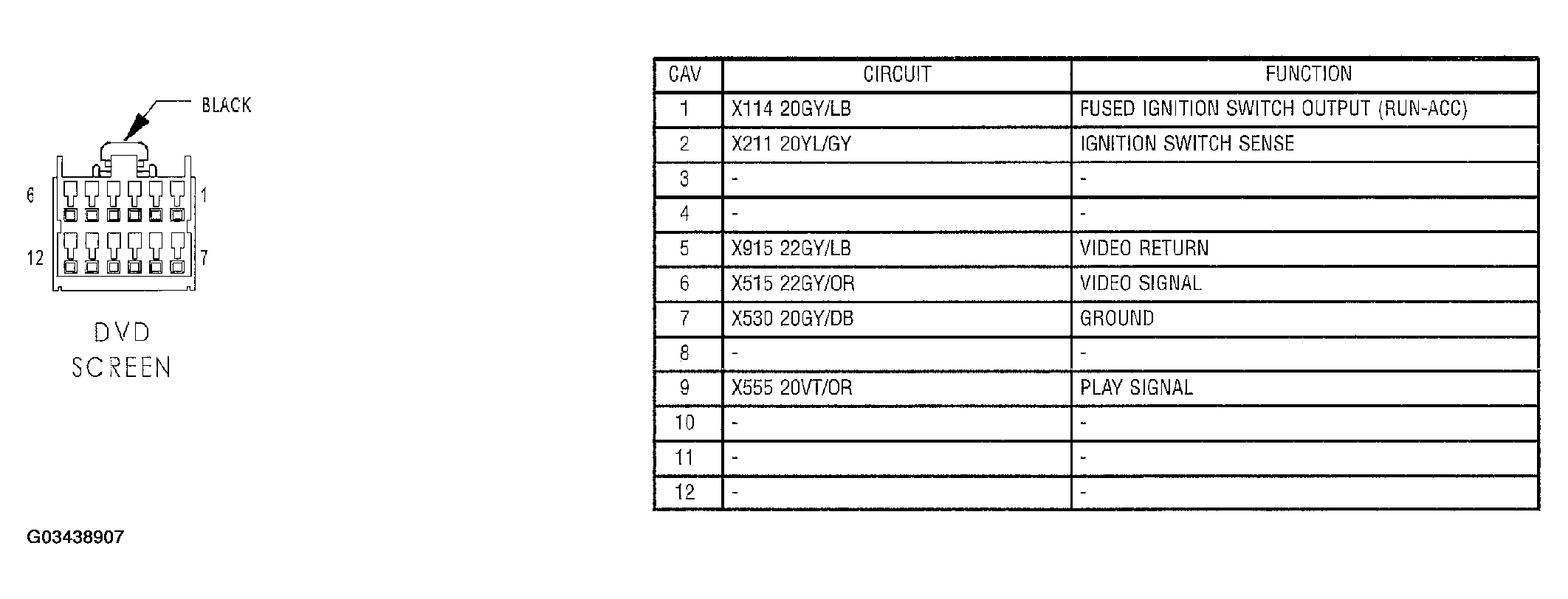

Fig 1: DVD Screen Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
