Driver Heated Seat Module Connector End View (C3)

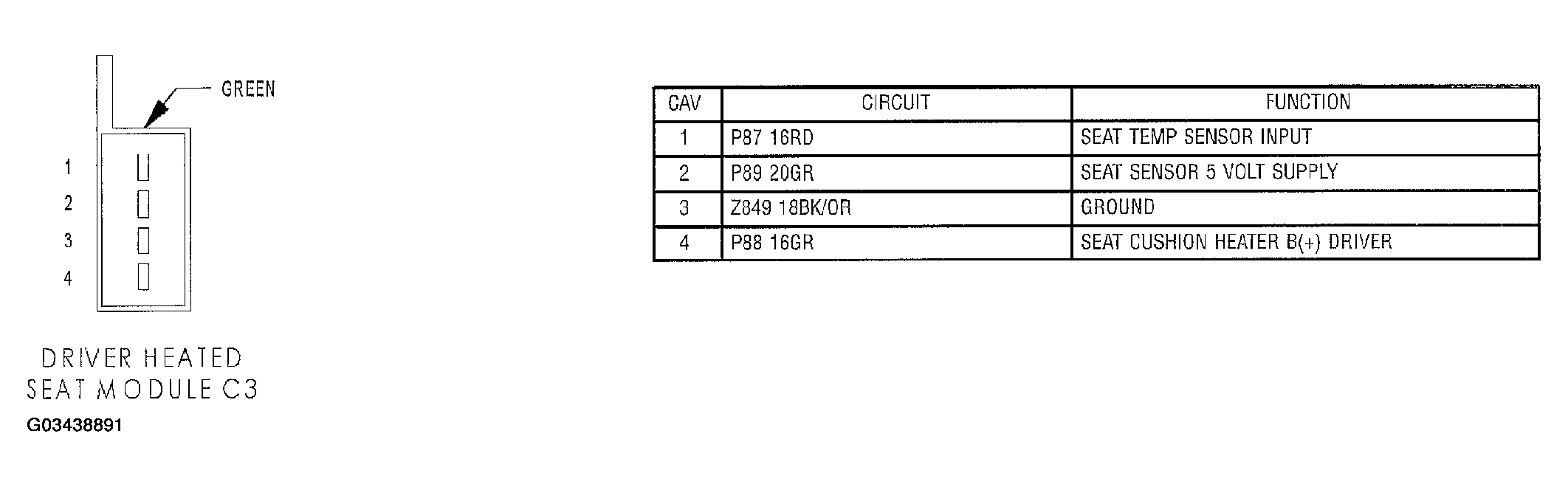

Fig 1: Driver Heated Seat Module Connector End View (C3)
G03438891Courtesy of CHRYSLER GROUP, LLC
