Front Control Module - Black 49 Way Connector End View
Front Control Module - Black 49 Way Connector End View

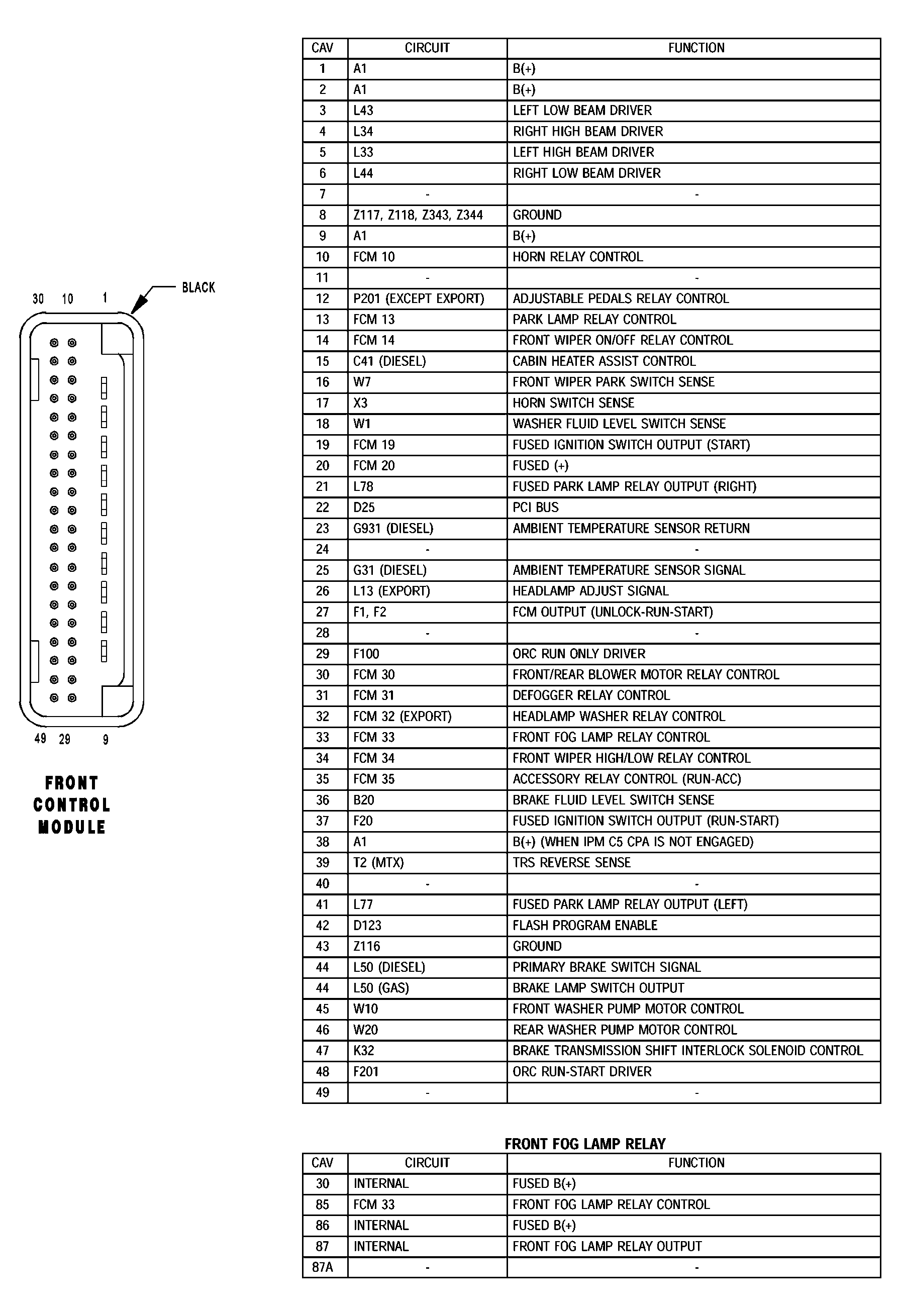

Fig 1: Front Control Module - Black 49 Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
