Generator Connector End View
Generator Connector End View

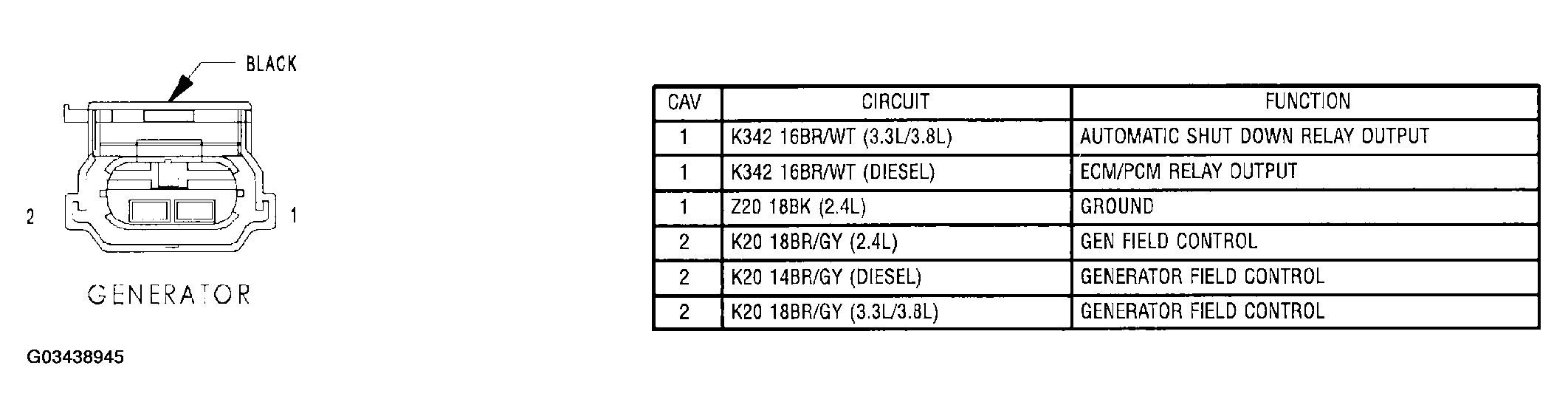

Fig 1: Generator Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
