Integrated Power Module Connector End View (C1)

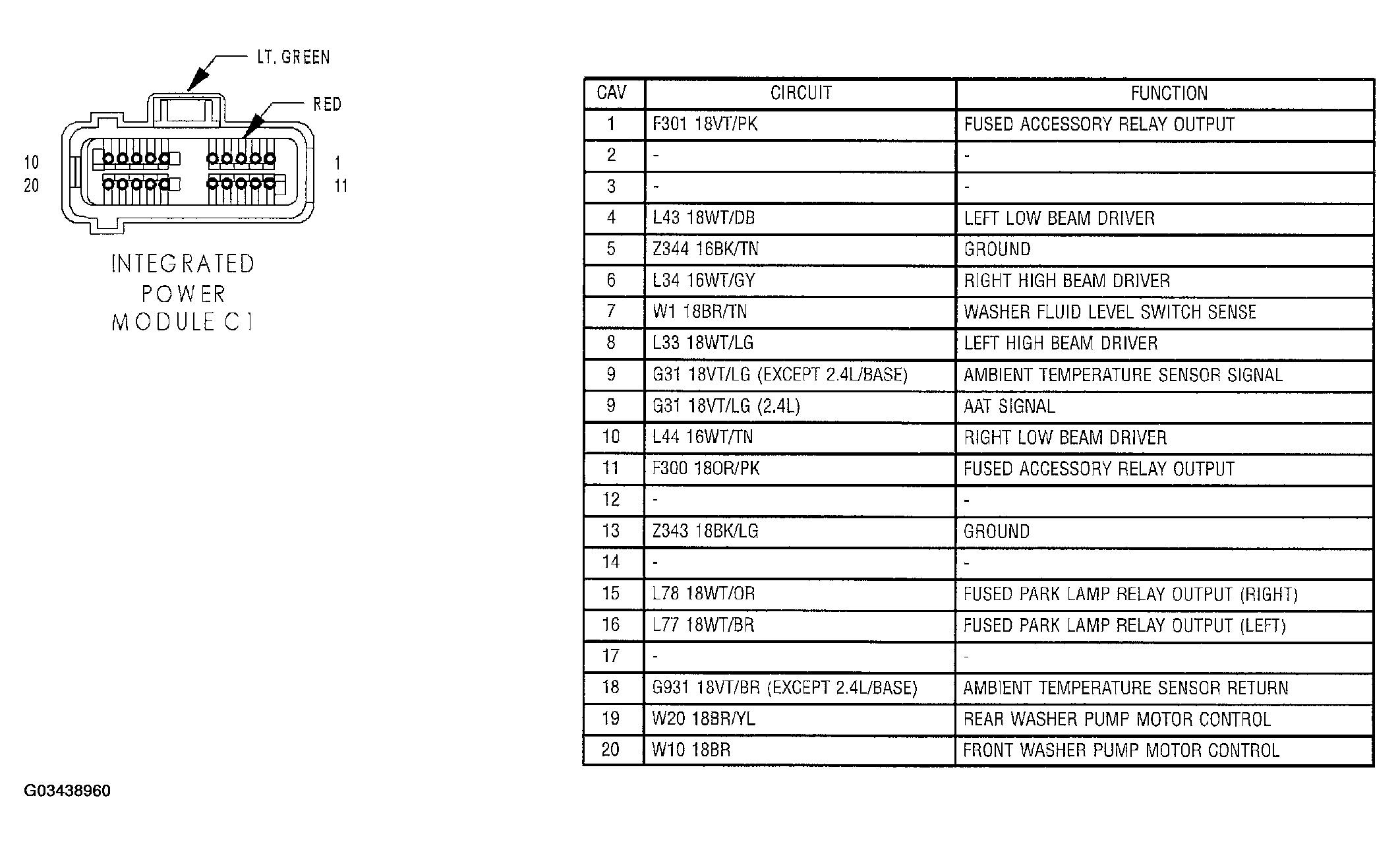

Fig 1: Integrated Power Module Connector End View (C1)
G03438960Courtesy of CHRYSLER GROUP, LLC
