Integrated Power Module Connector End View (C2)

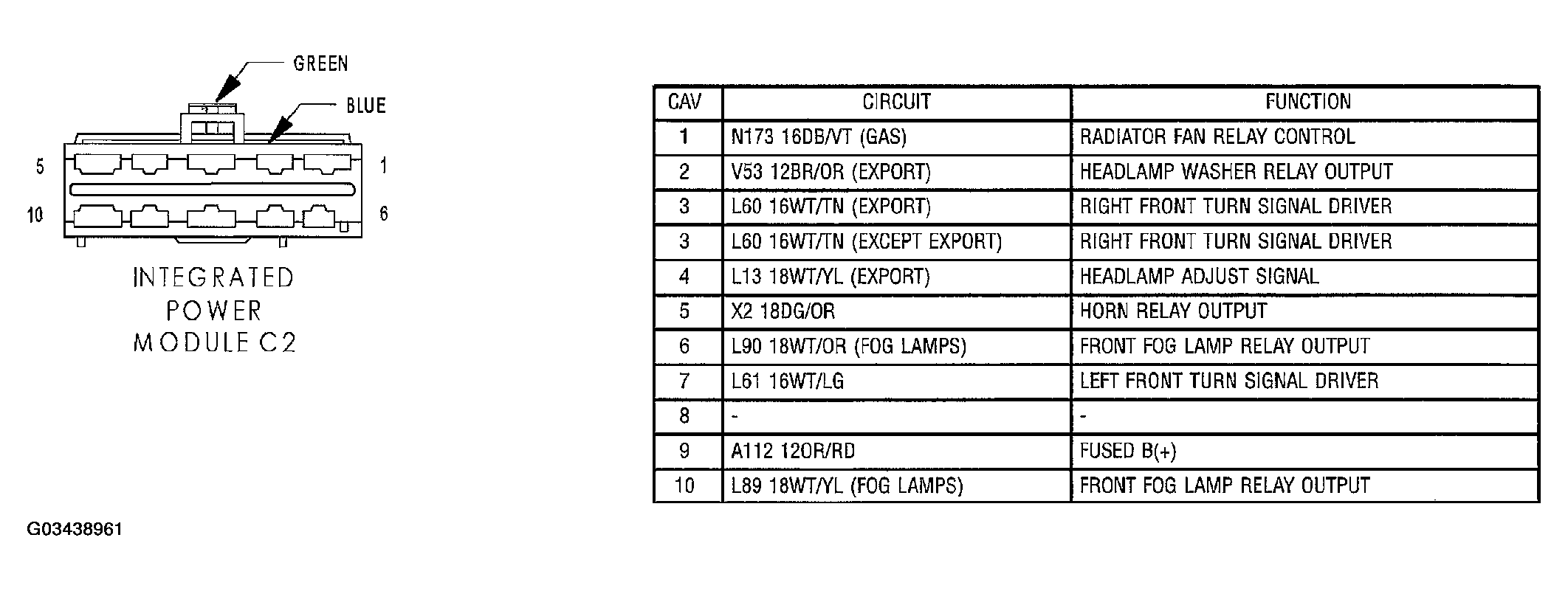

Fig 1: Integrated Power Module Connector End View (C2)
G03438961Courtesy of CHRYSLER GROUP, LLC
