Integrated Power Module Connector End View (C3)

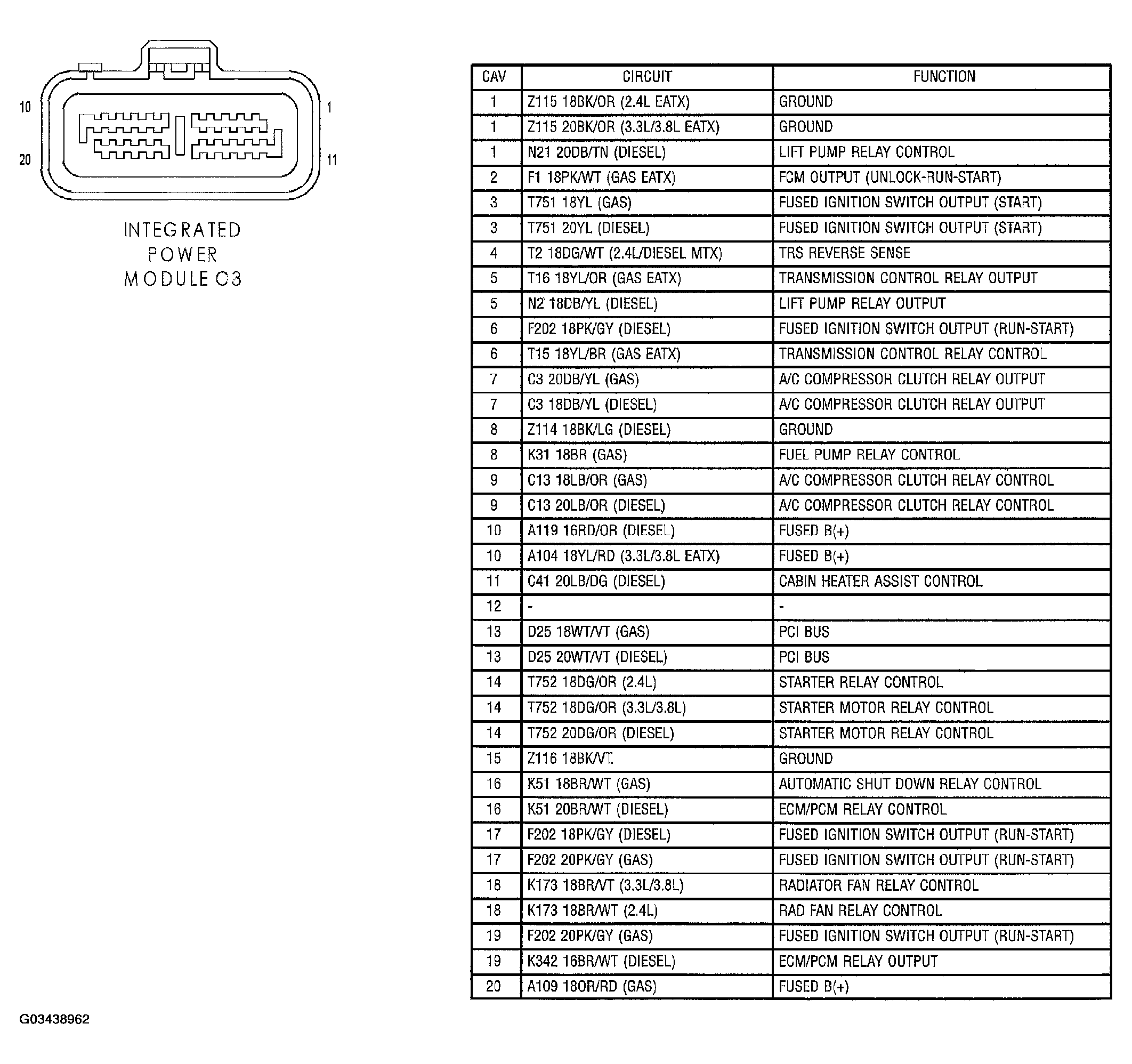

Fig 1: Integrated Power Module Connector End View (C3)
G03438962Courtesy of CHRYSLER GROUP, LLC
