Integrated Power Module Connector End View (C4)

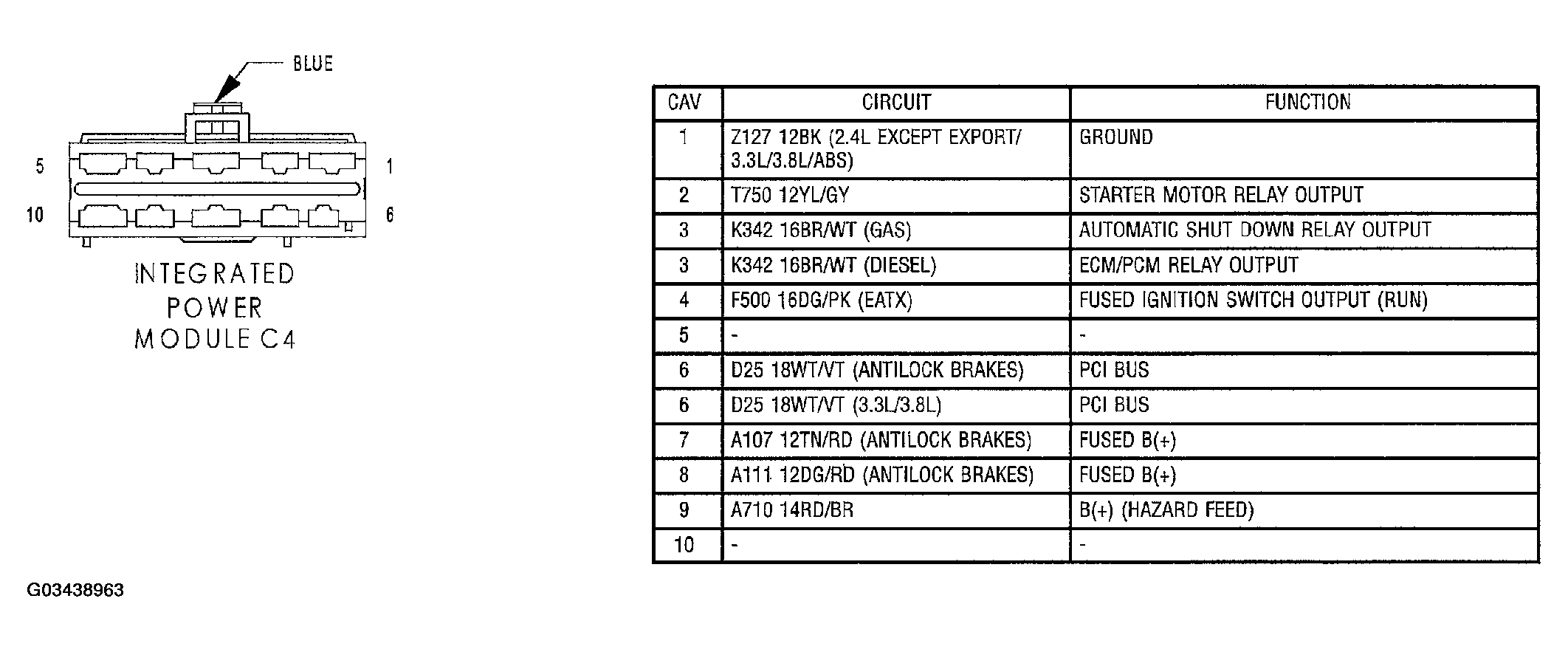

Fig 1: Integrated Power Module Connector End View (C4)
G03438963Courtesy of CHRYSLER GROUP, LLC
