Integrated Power Module Connector End View (C7)

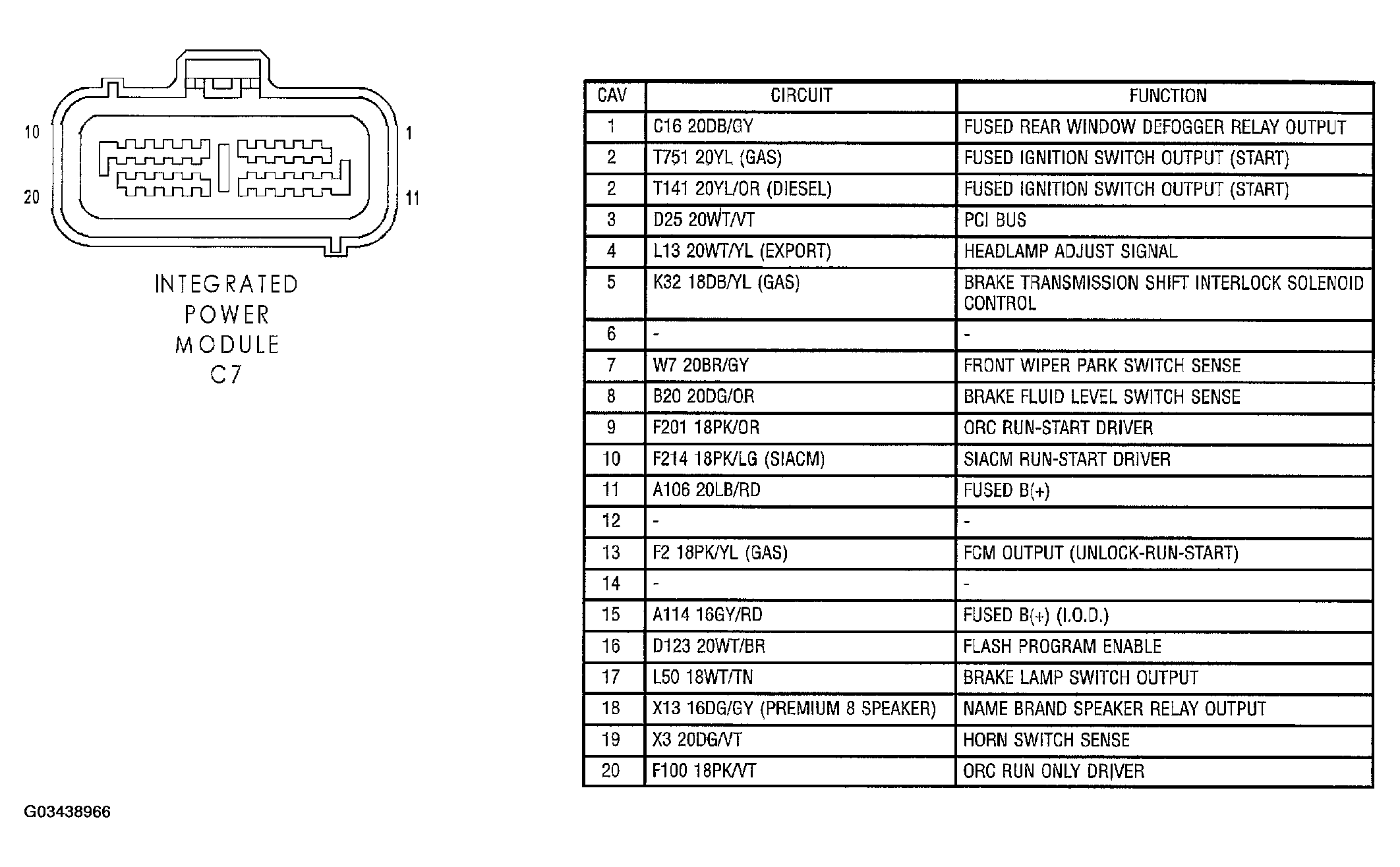

Fig 1: Integrated Power Module Connector End View (C7)
G03438966Courtesy of CHRYSLER GROUP, LLC
