Integrated Power Module Connector End View (C8)

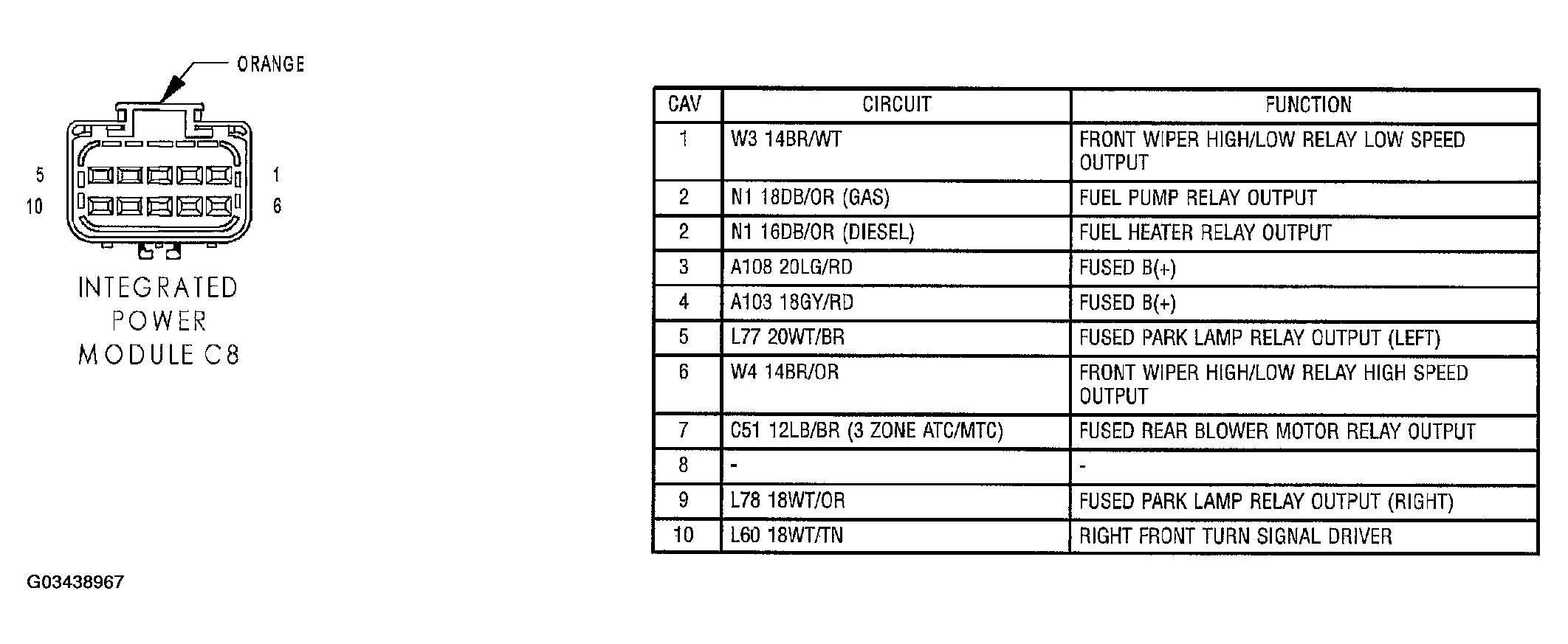

Fig 1: Integrated Power Module Connector End View (C8)
G03438967Courtesy of CHRYSLER GROUP, LLC
