Integrated Power Module Connector End View (C9)

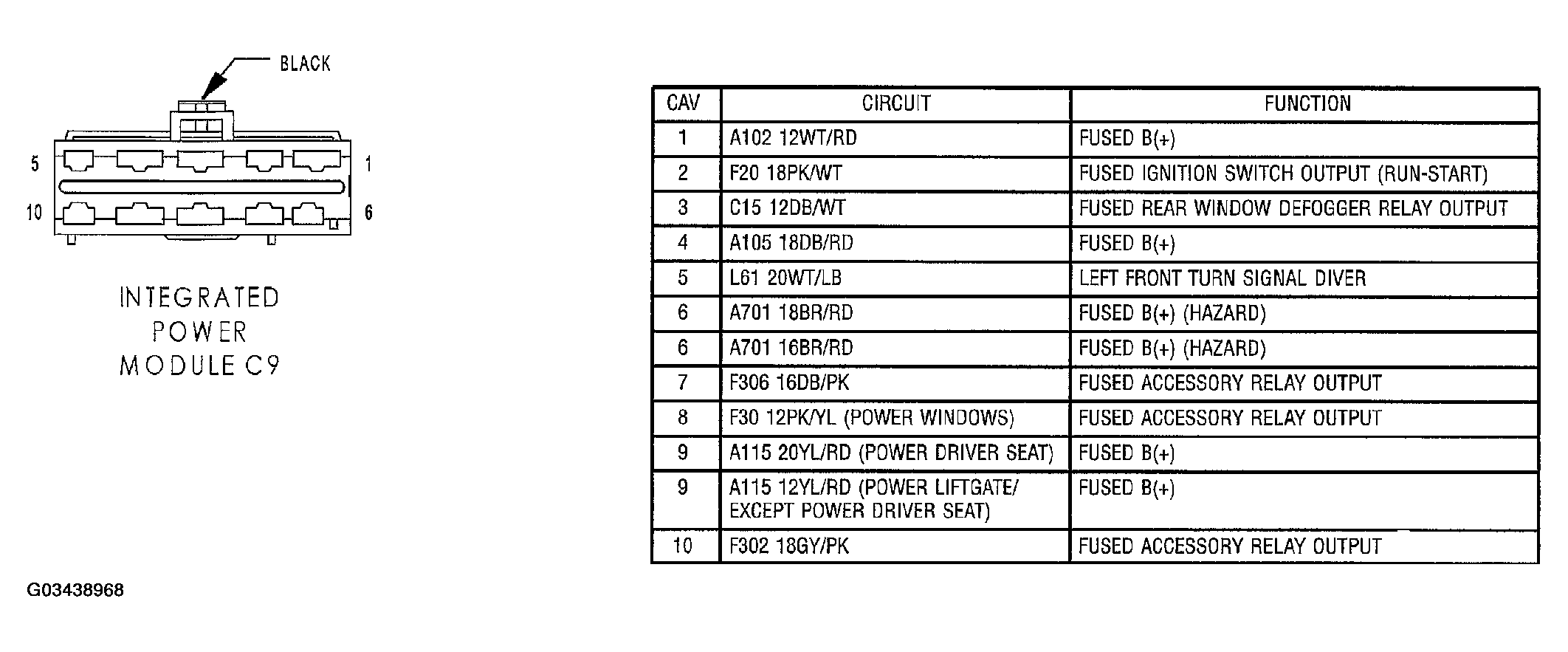

Fig 1: Integrated Power Module Connector End View (C9)
G03438968Courtesy of CHRYSLER GROUP, LLC
