Multi-Function Switch - Black 4 Way Connector End View

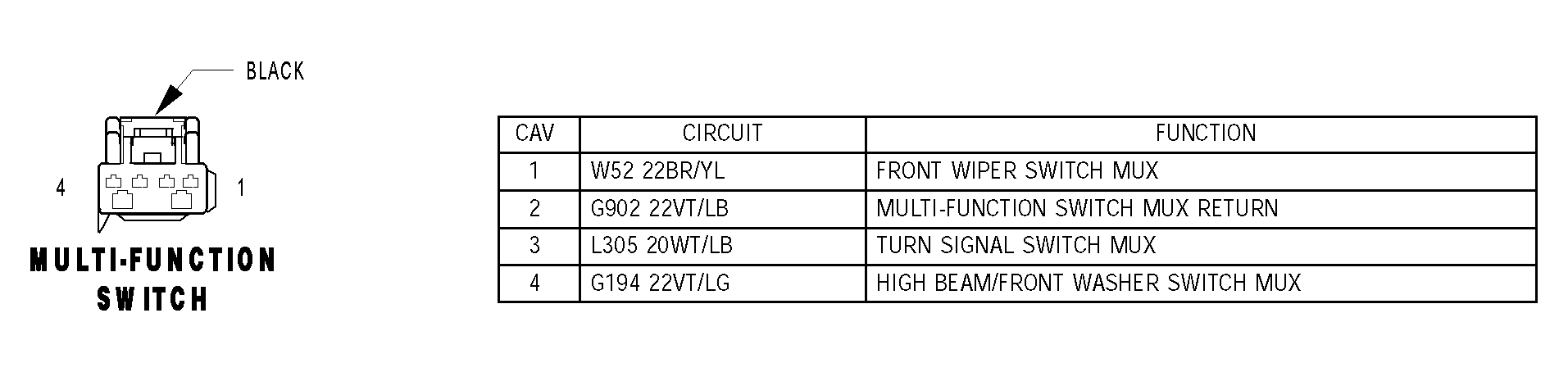

Fig 1: Multi-Function Switch - Black 4 Way Connector End View
G04549483Courtesy of CHRYSLER GROUP, LLC
