Overhead Console (Except Base) Connector End View

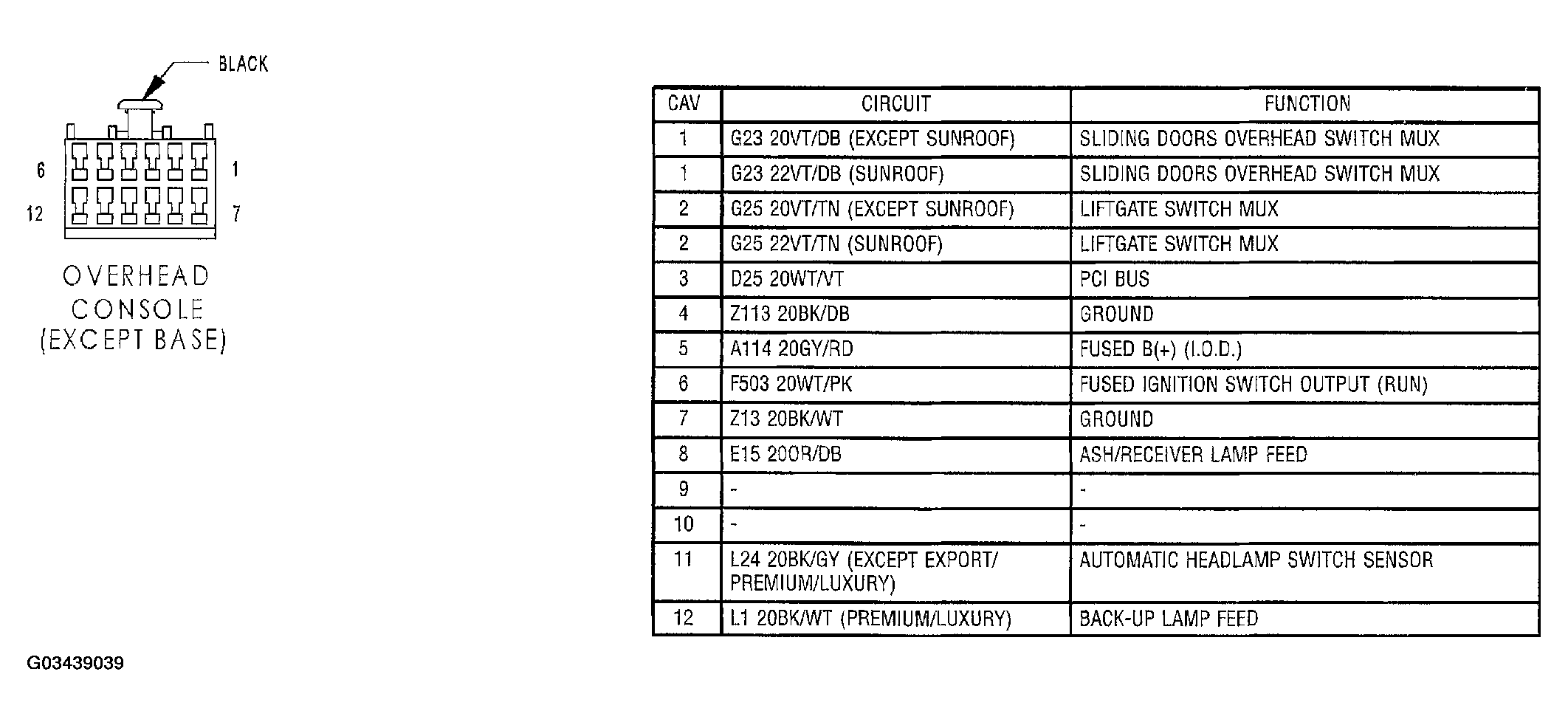

Fig 1: Overhead Console (Except Base) Connector End View
G03439039Courtesy of CHRYSLER GROUP, LLC
