Power Mirror Switch Connector End View
Power Mirror Switch Connector End View

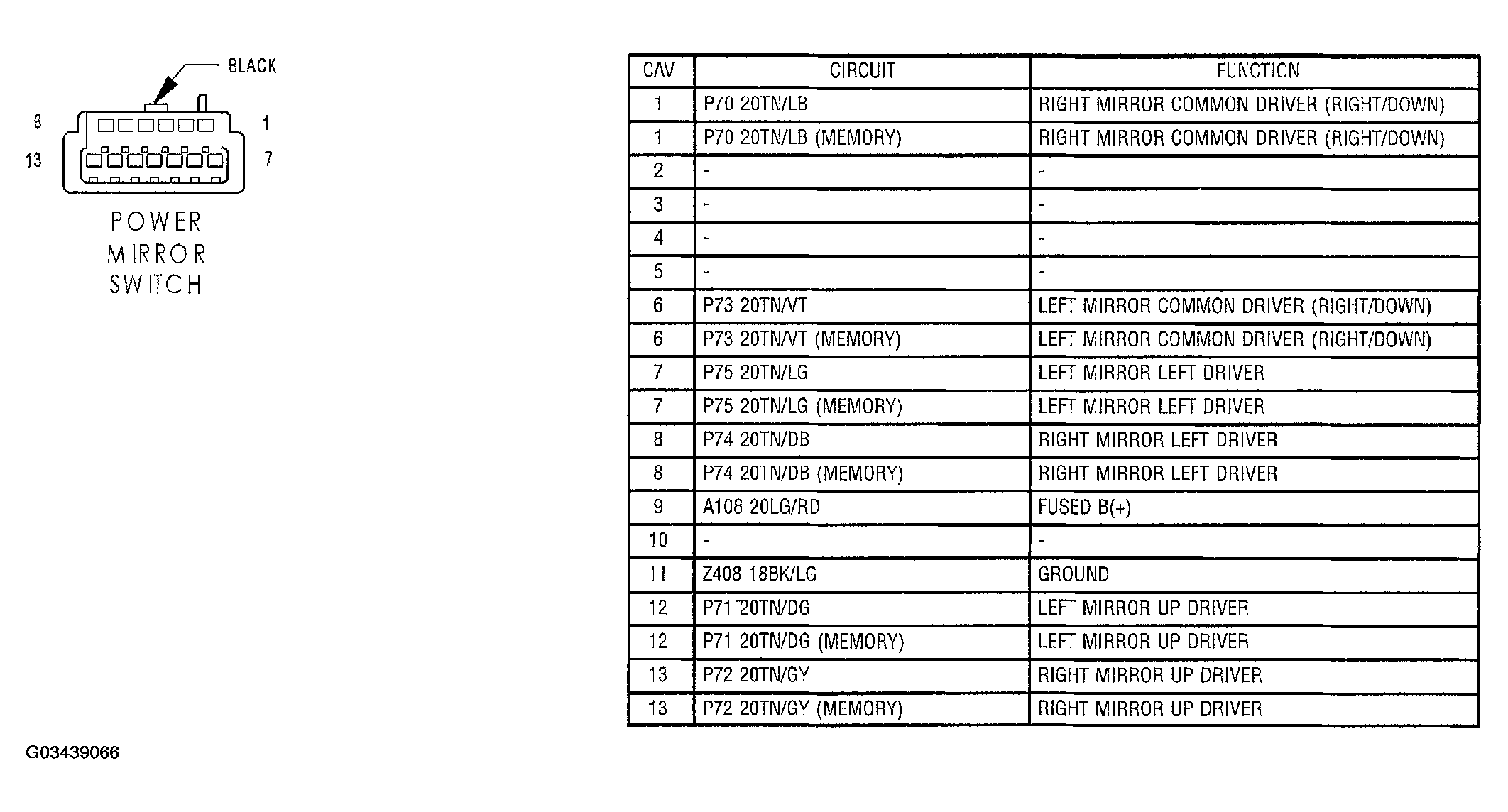

Fig 1: Power Mirror Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
