Powertrain Control Module C2 - Black/Orange 38 Way Connector End View
Powertrain Control Module C2 - Black/Orange 38 Way Connector End View

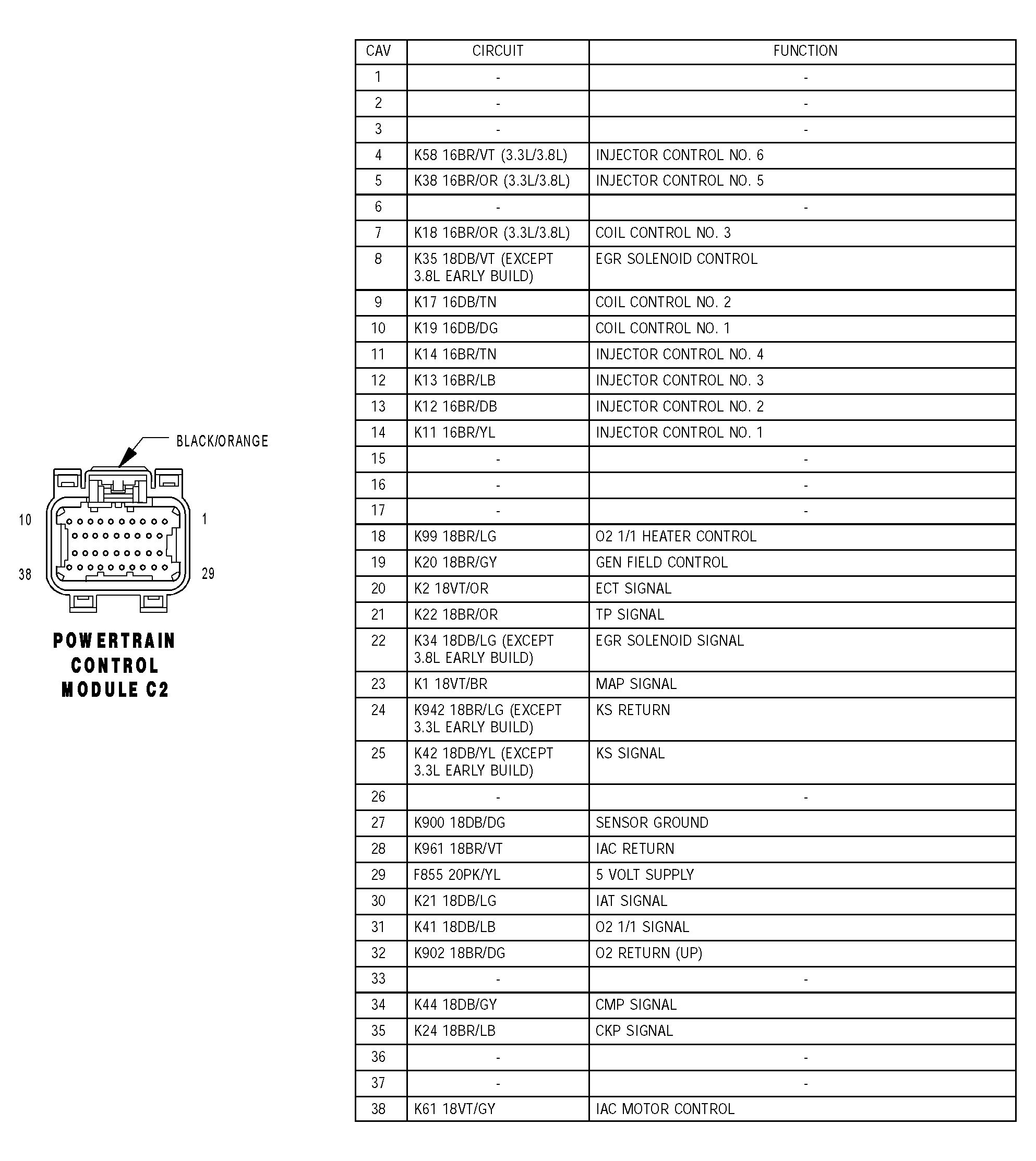

Fig 1: Powertrain Control Module C2 - Black/Orange 38 Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
