Powertrain Control Module C3 (NGC) Connector End View

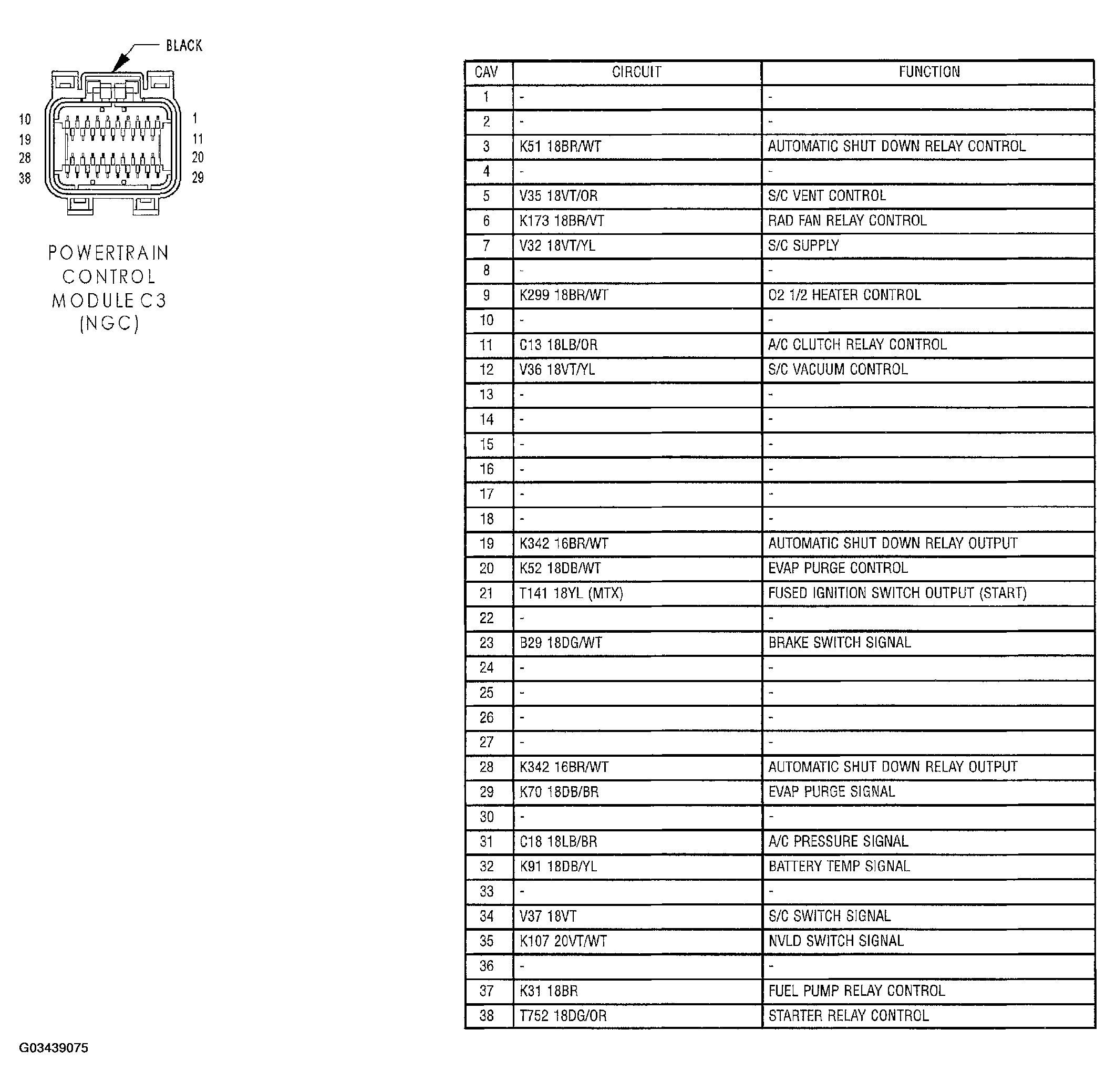

Fig 1: Powertrain Control Module C3 (NGC) Connector End View
G03439075Courtesy of CHRYSLER GROUP, LLC
