Powertrain Control Module C3 Connector End View -- Black 38-Way

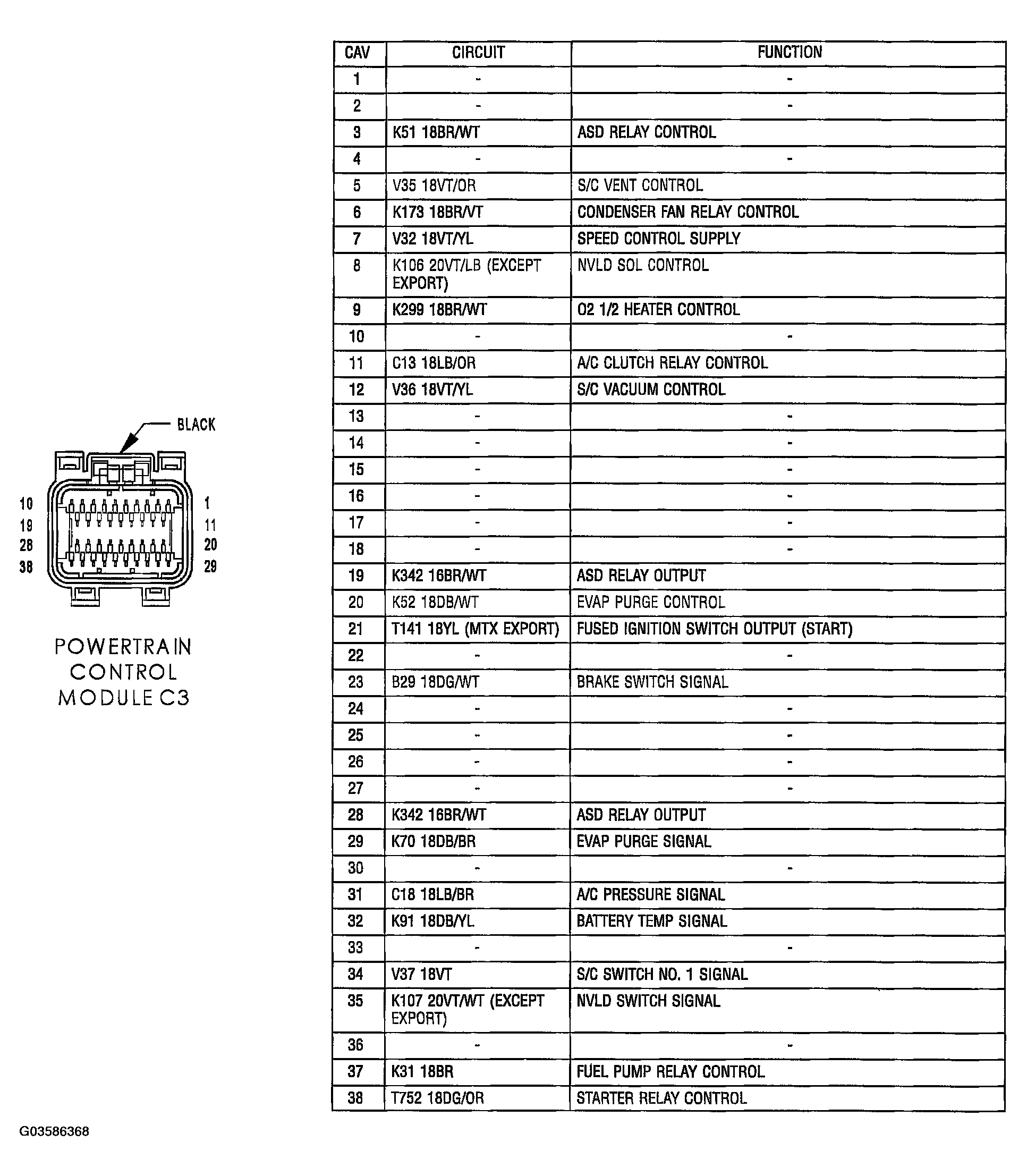

Fig 1: Powertrain Control Module C3 Connector End View -- Black 38-Way
G03586368Courtesy of CHRYSLER GROUP, LLC
