Sunroof Module (Except Export) Connector End View
Sunroof Module (Except Export) Connector End View

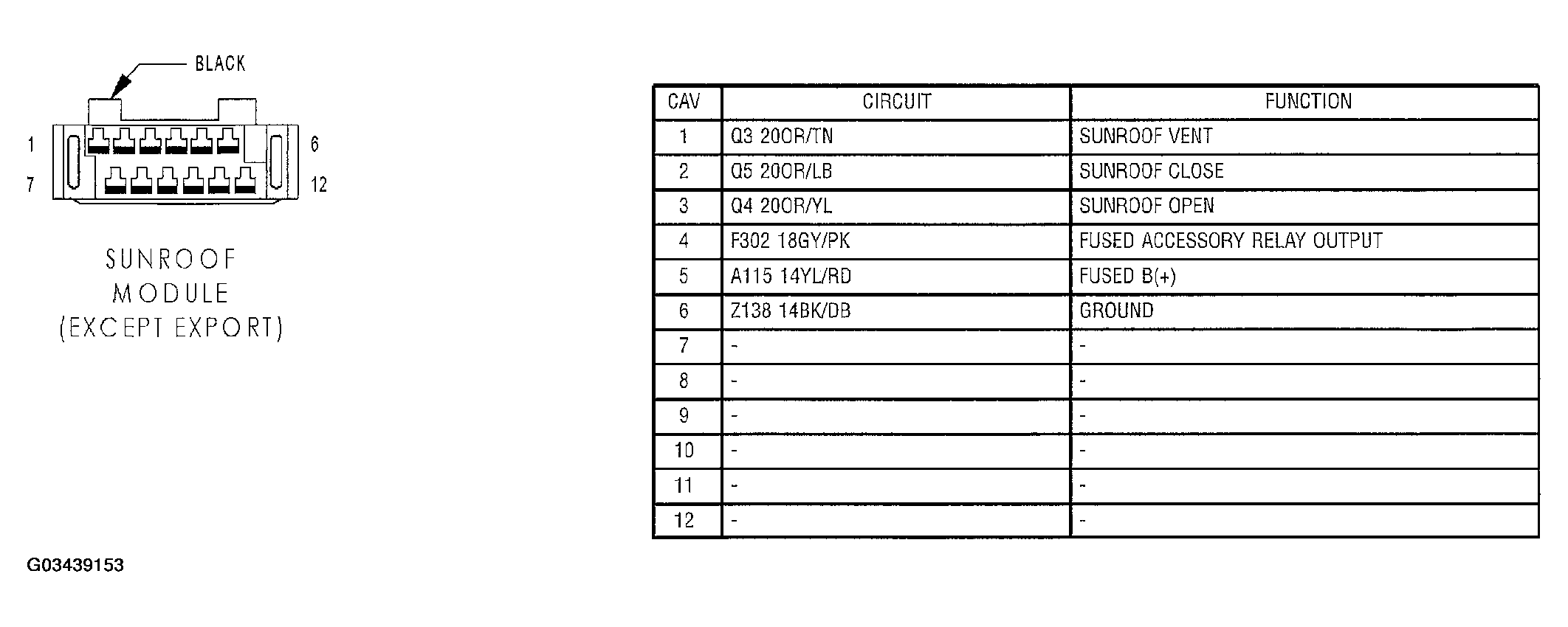

Fig 1: Sunroof Module (Except Export) Connector End View
Courtesy of CHRYSLER GROUP, LLC
