Transmission Control Relay Connector End View
Transmission Control Relay Connector End View

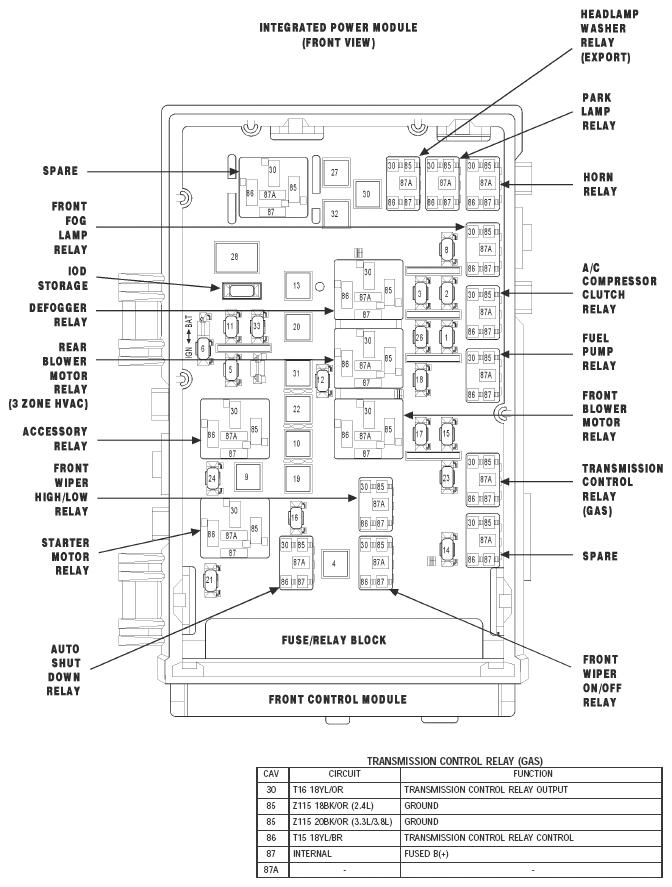

Fig 1: Transmission Control Relay Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
