Driver Door Lock Switch Connector End View
Driver Door Lock Switch Connector End View

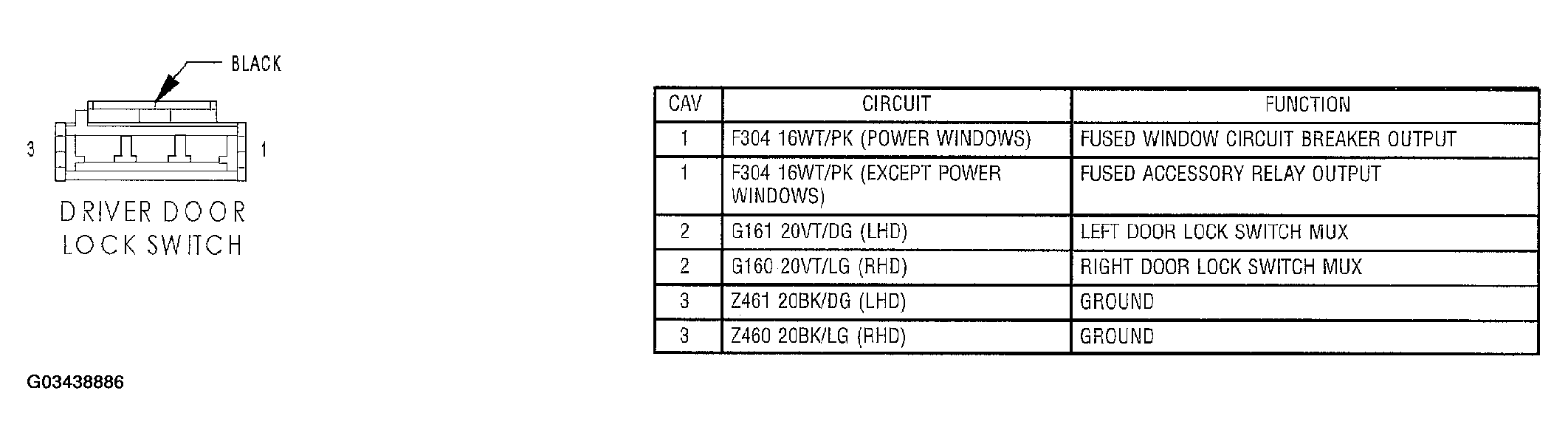

Fig 1: Driver Door Lock Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
